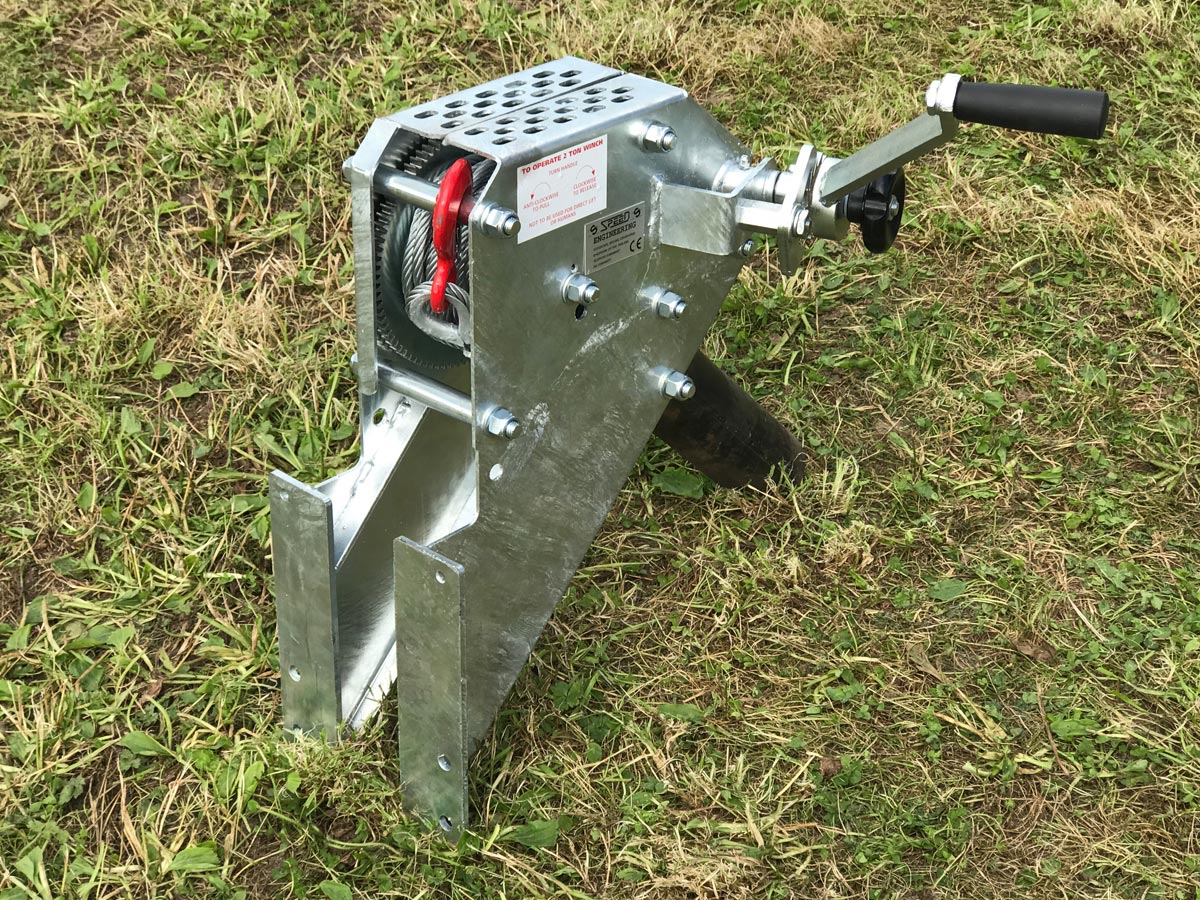

Trailer Winch 2T Vertical Mount C/W Hook & 8mm 12m Wire Rope

These UK Built Trailer winches are of a high build quality and the best materials are used to ensure a long trouble-free life, needing only the minimum of maintenance. A truly well built product which will reflect the quality you build into your trailer.

✓ All parts are galvanised or zinc plated, offering a superior corrosion resistance.
✓ Gears are machine cut from solid blanks to ensure long life and trouble-free operation.
✓ The body is made from 3 mm steel and is held together with multiple stay pins.
✓ Gravity operated double ratchet has no spring to weaken or lose, plus can never disengage accidentally.
✓ The braking system is simple and automatic to operate.
✓ The mechanical advantage is designed into each winch to keep handle effort low for smooth operation.
✓ The complete winch is enclosed for safe operating, ie trapped fingers in the gears, etc.

The SP4685B is vertical mounted without the need for a base plate or platform and can be fitted to various trailers, eg Ifor Williams ranges LM/CT, Bateson’s General Purpose/Plant, Nugent Beavertail/General Purpose/Flat Bed, Brian James Cargo Connect, as well as other manufacturers.

Spec

160-1-5 – 2 Ton

Mount: Vertically mounted
Rating: 2000 kg rolling weight up a 30 degree slope
Shipping Weight: 21kg

160-1-5 comes with an 8 mm diameter x 12 metres long galvanised steel rope with eye hook on the end fitted to the winch. The wire winch can be used to pull at up to 20 degree angle side to side, and even more if using a fair lead. The drum is of a size in diameter that reduces wear and tear on the rope and positive anchorage of the rope to the drum for safety.

Manufactured in the UK

Downloads

Base plate data sheet
