Spur Gear Box with a max torque of 550Nm or 840Nm

Name: Spur Gear Box with a max torque of 550Nm or 840Nm
Brand: Gebuwin
SKU: 156-23-1
Price: 833.97 GBP
Availability: InStock

Gebuwin SKU: 156-23-1

1 1

Gebuwin TK1000 spur gearbox gives up to 550Nm output torque (TK1500 840Nm). Sealed IP54 casing, load pressure brake and maintenance free bearings for hoisting. Read More

£833.97

Sale TODAY'S PRICE £833.97

Tax included. Shipping calculated at checkout.

Product variants

Quantity

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Gebuwin TK1000 spur gearbox delivers up to 550Nm output torque, with the TK1500 rated to 840Nm, for hoisting applications built with an input shaft. It has a sealed spur gear casing rated IP54 and a load pressure brake.

Please note the lead-time is around four weeks from order for this product.

Gebuwin TK1000 spur gearbox

Sealed spur gear casing, protection rating IP54
Load pressure brake holds the load at any height
All rotating parts run in maintenance free bearings
Static safety factor of 4; zinc plated finish, 6 micron minimum

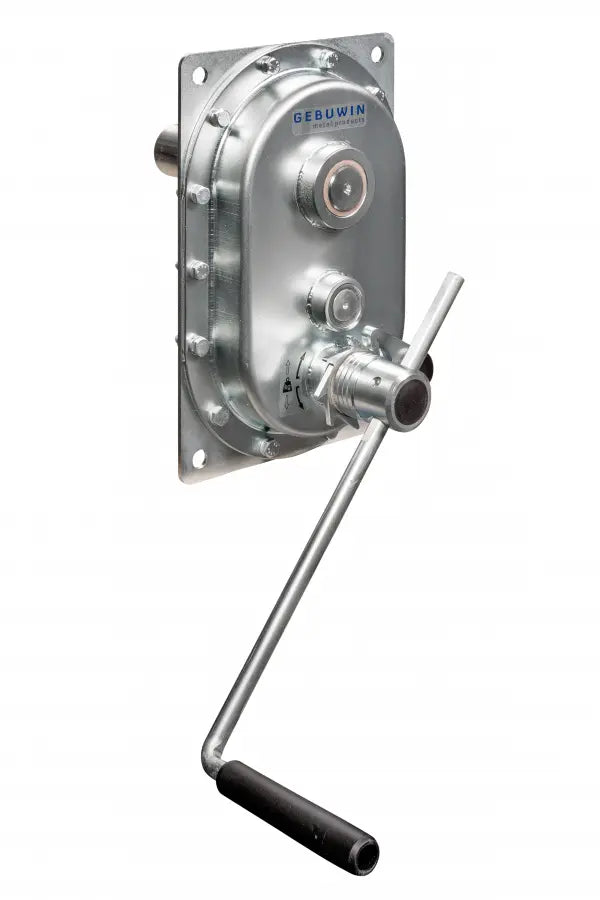

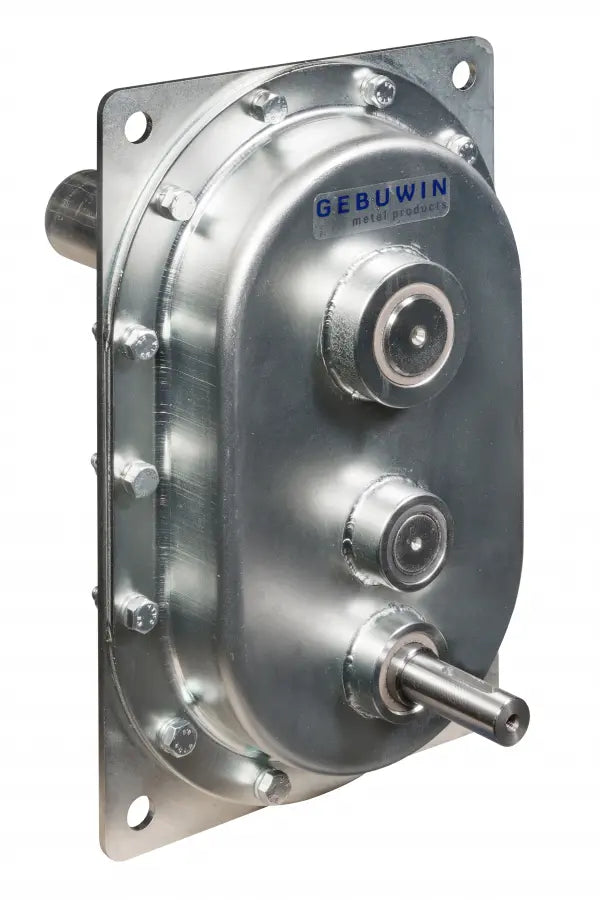

TK1000 550Nm and TK1500 840Nm with crank and brake; TK1001 and TK1501 have input and output shaft only

Specification and options

Crankforce 11 daN, transmission ratio 1 to 17, weight around 16.5kg (ref 156-23-1)
EX ATEX option for zones 2 and 22; SS stainless steel EN 1.4301 option
Lead time is around four weeks from order
More manual gear winches in Gebuwin Winches

Tech Area

Technical specifications	TK1000	TK1500	TK1001	TK1501
SKU	156-23-1	156-23-2	156-21-3	156-21-4
Max. output torque (Nm)	550	840	550	840
Crankforce (daN)	11	12	–	–
Max input torque (Nm)	–	–	38	42
Max input speed (rpm)	–	–	60	60
Transmission ratio	1:17	1:25,7	1:17	1:25,7
In- / output shaft diameter (mm)	– /45	– /45	20/45	20/45
Own weight (kg)	16,5	17	16	16,5

Downloads

Data sheet
