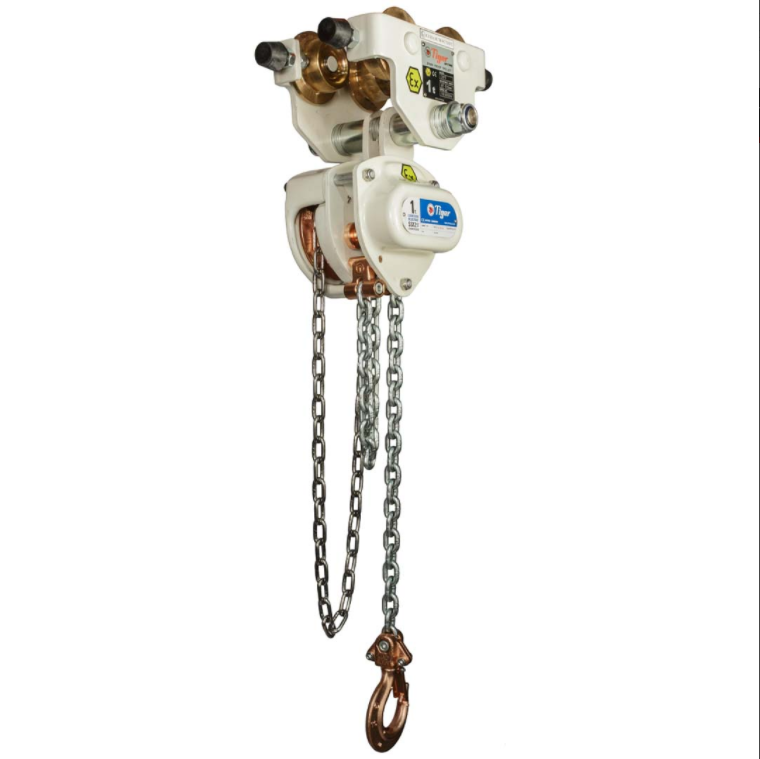

Tiger XCCBTPS Spark Resistant Block & Push Trolley 1.0t 62-203mm

In stock
SKU: 222-12-3
Regular price £1,746.36 GBP inc vat
Height of Lift

Main Features:

  • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
  • Special coated units
  • Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage
  • Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC
  • Different capacities and heights of lift to suit your specific requirements
  • Stainless steel fixings and fasteners
  • Developed for the use in potentially explosive atmospheres (ATEX zones).
  • Available with stainless steel load chain
  • Solid bronze trolley wheels

Chain Blocks (using Tiger SS20 units)

  • Stainless steel hand chain
  • Corrosion protected load chain
  • Special corrosion protected body
  • Marine specific friction discs
  • Brake chamber protection from outside contamination
  • Copper plated load hook, load chain guides, grip rings, hand wheels and end anchorage
  • Stainless steel fixings and fasteners


    • Stainless steel load chain
    • Overload protection device
    • Chain container

Trolleys (using Tiger corrosion protected trolleys)

Plain or geared trolleys available

  • Solid bronze trolley wheels
  • Rubber buffers for trolleys
  • Copper plated hand wheel (geared trolley) and hanging plate
  • Special corrosion protected coated body
  • Combination block and trolley units available


    • Beam locking device



      See the product page for the standard version of the products for weights, dimensions and more product features.

      SS20 Hand Chain Block

      XTP Plain Travel Trolley

      XTP Geared Trolley


      Duct rod data sheetProduct data sheet


      Under the ATEX Directive 94/9/EC , equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:

       Ex II 2 GD c IIC T4 IIIC T135°C

      Our products are third party certified by Sira Certification, a key provider of Atex product certification and environmental monitoring services.

      It is the responsibility of the user to identify which explosion proof classification is required, not the hoist manufacturer or supplier.

      Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
