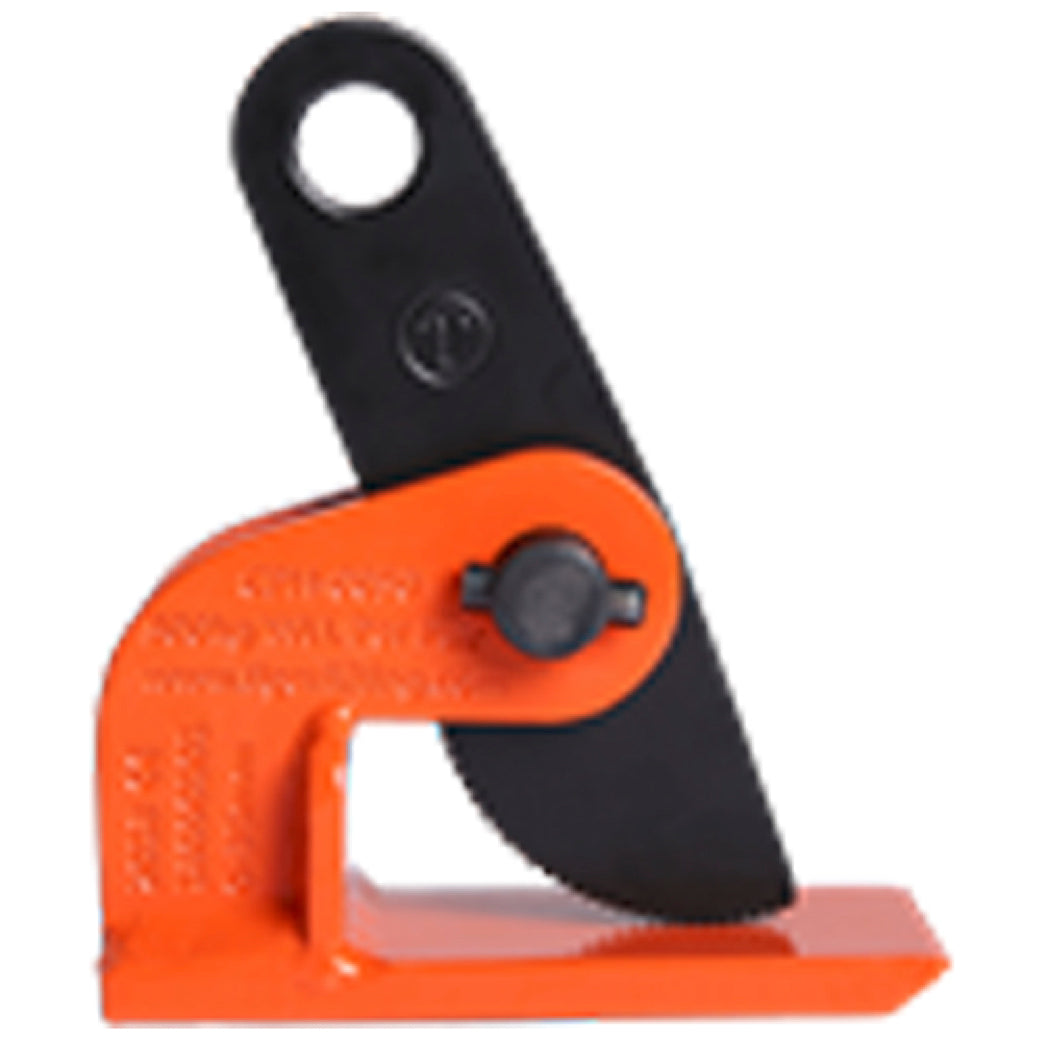

TIGER HORIZONTAL PLATE CLAMP - CPH (Pair)

Out of stock
SKU: 240-2-1
Regular price $175.00 USD
Capacity


The Tiger CPH clamp is a horizontal lifting clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontally.  They can be used to lift all types of materials in plate form providing that the plate can withstand the forces imposed on it. These clamps are only suitable for lifting single plates with a surface hardness below 300 Brinell (HB) / 32 Rockwell C (HRC).

*The capacities shown in the table are based on a set of two clamps.

Prices are per pair


Product Code

Capacity* (tonne)

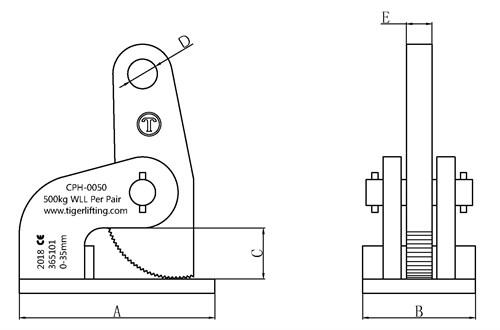

Dimensions (mm)

Net Weight (kg)

SKU

Jaw Opening C (mm)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

240-2-1

CPH-0050

0.5t

0-35

140

65

38

20

16

2.3

240-2-2

CPH-0100

1.0t

0-60

180

80

68

25

16

5.8

240-2-3

CPH-0200

2.0t

0-60

180

80

68

25

16

6.7





Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with our sales team when ordering.
