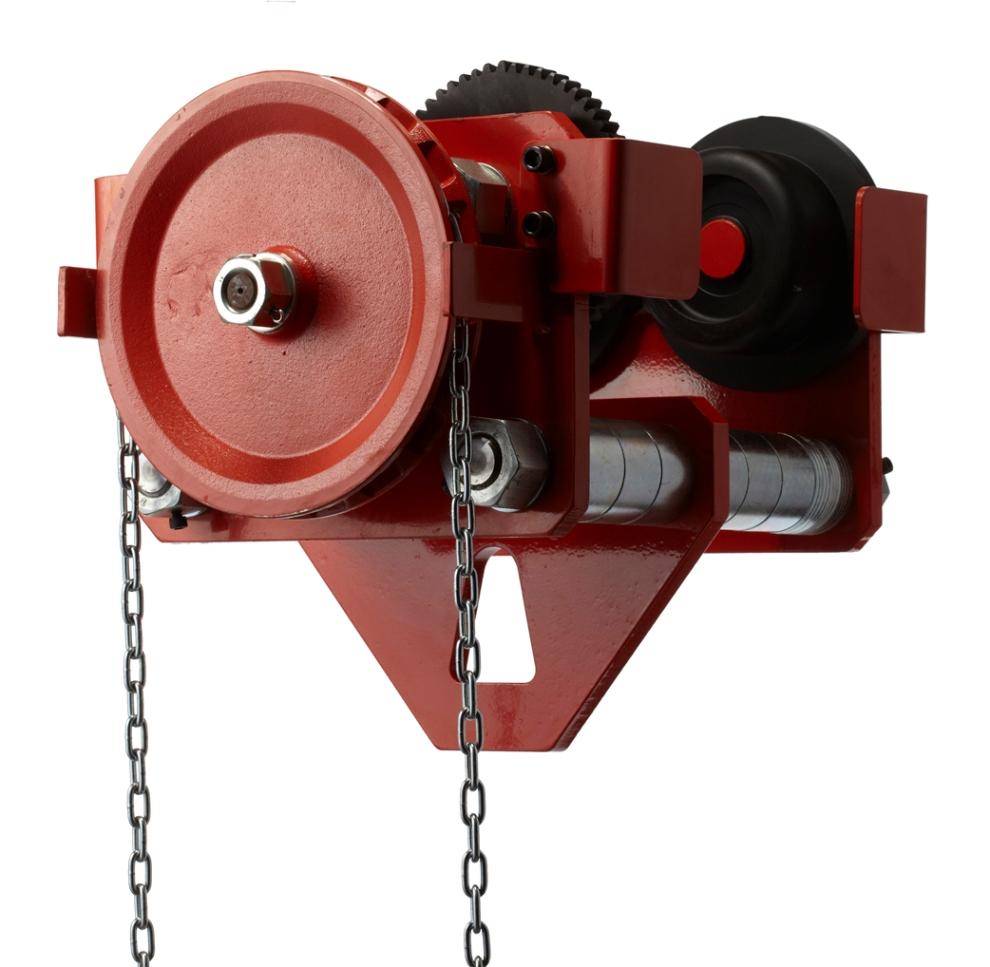

TIGER GEARED TROLLEY TYPE TGS / TGT

TIGER GEARED TROLLEY TYPE TPS / TPT

• Geared Trolley Range from 0.5t to 30.0t
• Standard geared trolley hand chain length 2.5m. Contact us for longer lengths
• The wheels run on sealed bearings for smoother rolling with less effort and maintenance
• Extended beam width available
• Optional beam locking device

• The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
• Twin bar or single bar trolleys available
• Corrosion or Spark Resistant versions available
• The 5:1 factor of safety allows for use with manual or powered hoists
• Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
• Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
• Tiger plain - push travel trolleys also available

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Single or twin bar, (S/T at end of product code)

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC
