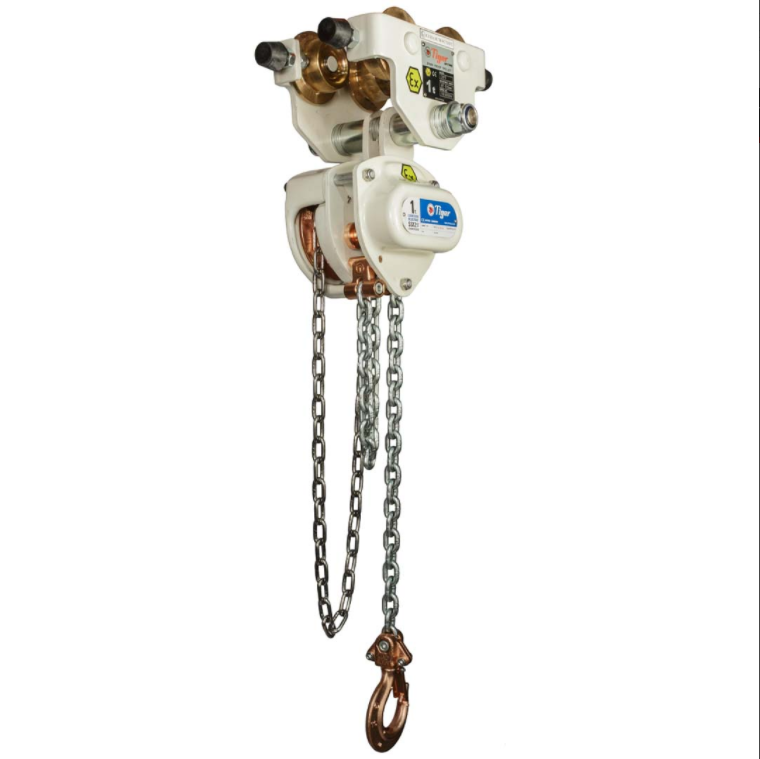

0.5t Tiger XCCBTG Spark Resistant Block & Geared Trolley 80-203mm

Main Features:

• Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
• Special coated units
• Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage
• Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC
• Different capacities and heights of lift to suit your specific requirements
• Stainless steel fixings and fasteners
• Developed for the use in potentially explosive atmospheres (ATEX zones).
• Available with stainless steel load chain
• Solid bronze trolley wheels

Chain Blocks (using Tiger SS20 units)

• Stainless steel hand chain
• Corrosion protected load chain
• Special corrosion protected body
• Marine specific friction discs
• Brake chamber protection from outside contamination
• Copper plated load hook, load chain guides, grip rings, hand wheels and end anchorage
• Stainless steel fixings and fasteners

Optional

• Stainless steel load chain
• Overload protection device
• Chain container

Trolleys (using Tiger corrosion protected trolleys)

Plain or geared trolleys available

• Solid bronze trolley wheels
• Rubber buffers for trolleys
• Copper plated hand wheel (geared trolley) and hanging plate
• Special corrosion protected coated body
• Combination block and trolley units available

Optional

• Beam locking device

Specification

See the product page for the standard version of the products for weights, dimensions and more product features.

SS20 Hand Chain Block

XTP Plain Travel Trolley

XTP Geared Trolley

Tech Area

Product data sheet

Legislation

Certification

Under the ATEX Directive 94/9/EC , equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:

Ex II 2 GD c IIC T4 IIIC T135°C

Our products are third party certified by Sira Certification, a key provider of Atex product certification and environmental monitoring services.

It is the responsibility of the user to identify which explosion proof classification is required, not the hoist manufacturer or supplier.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
