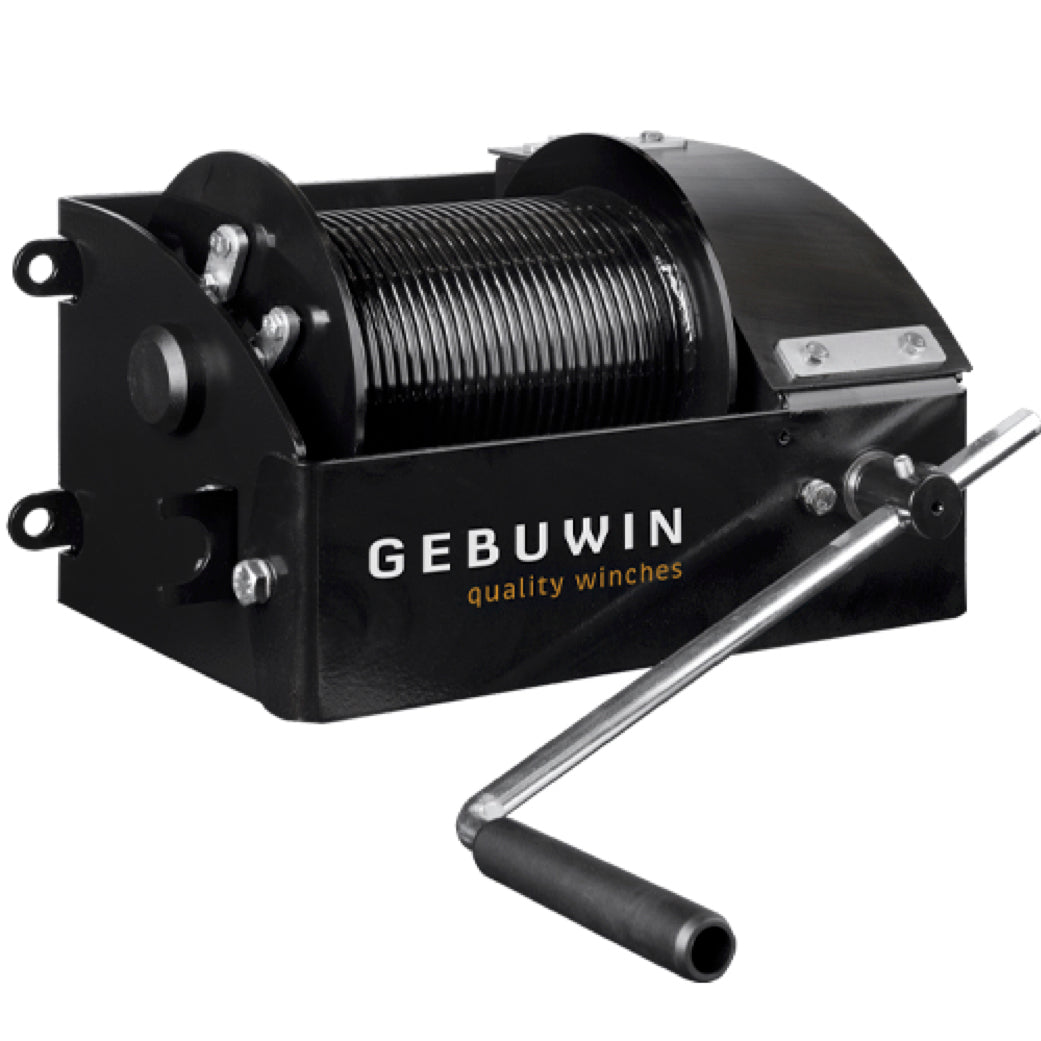

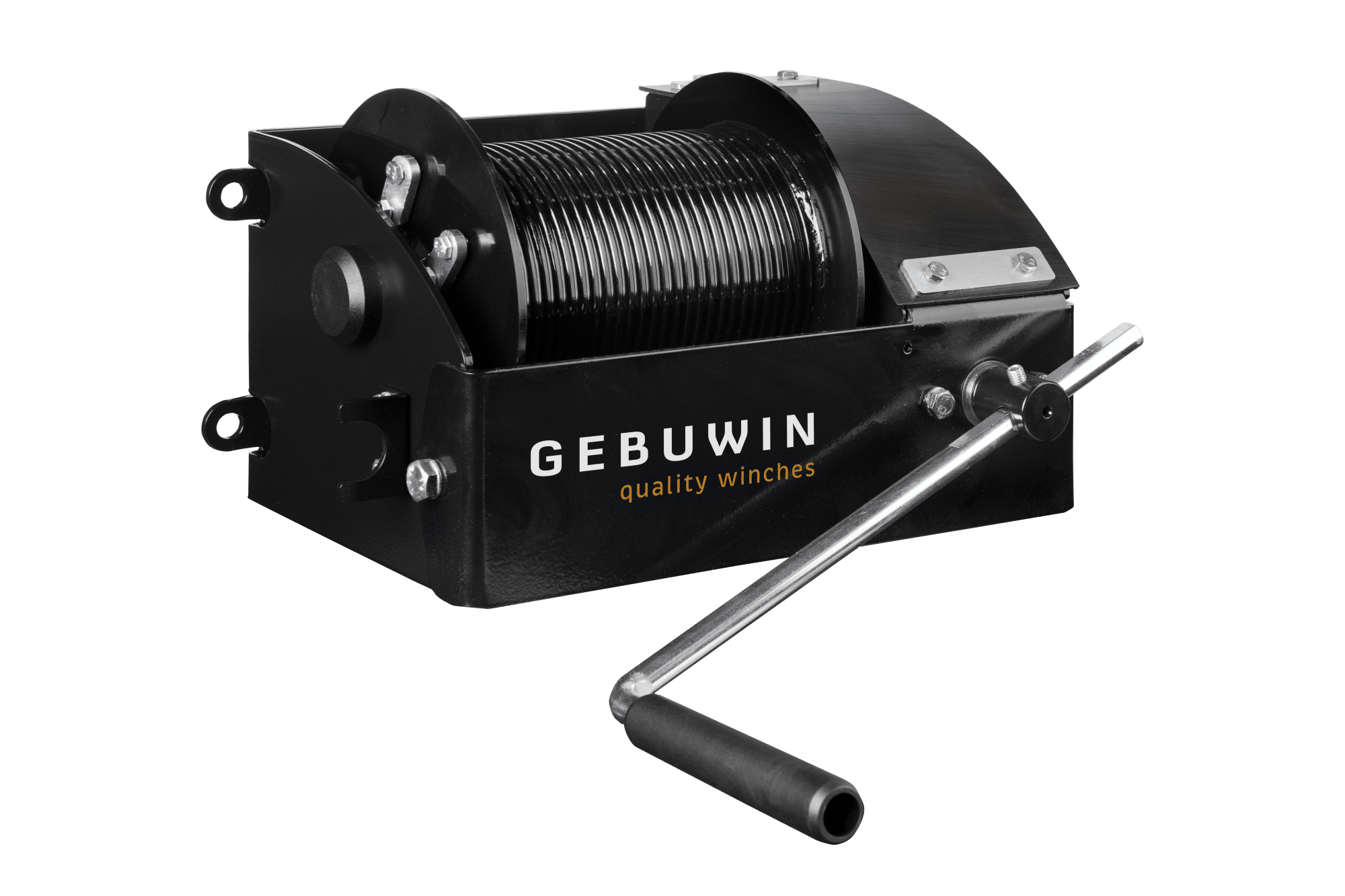

Theatre Winch TW300 300kg

The Gebuwin TW300 theatre winch is a high-quality but also safe winch that has been specially developed for the theatre and entertainment industry.

This winch complies with the newly set standards for this sector, namely EN17206, and is therefore new in our range. This winch is equipped with two load pressure brakes and complies with the safety factor of 8:1. In order to give the winch even more finesse and ease of use, it is equipped with a grooved drum with a pressure roller.

As standard, the TW300 Winch has a 300kg capacity and 10m rope capacity (multi drum and larger rope capacities available upon request)

As the name suggests, the winch is ideally suited for the theatre world, but it can also be used in interior building or the lighting sector. In short, it’s a great addition for Gebuwin, which can literally and figuratively be seen “In The Picture”.

Spec

• Compliant to the EN17206 norm for stage and entertainment industry
• Static safety factor 8:1

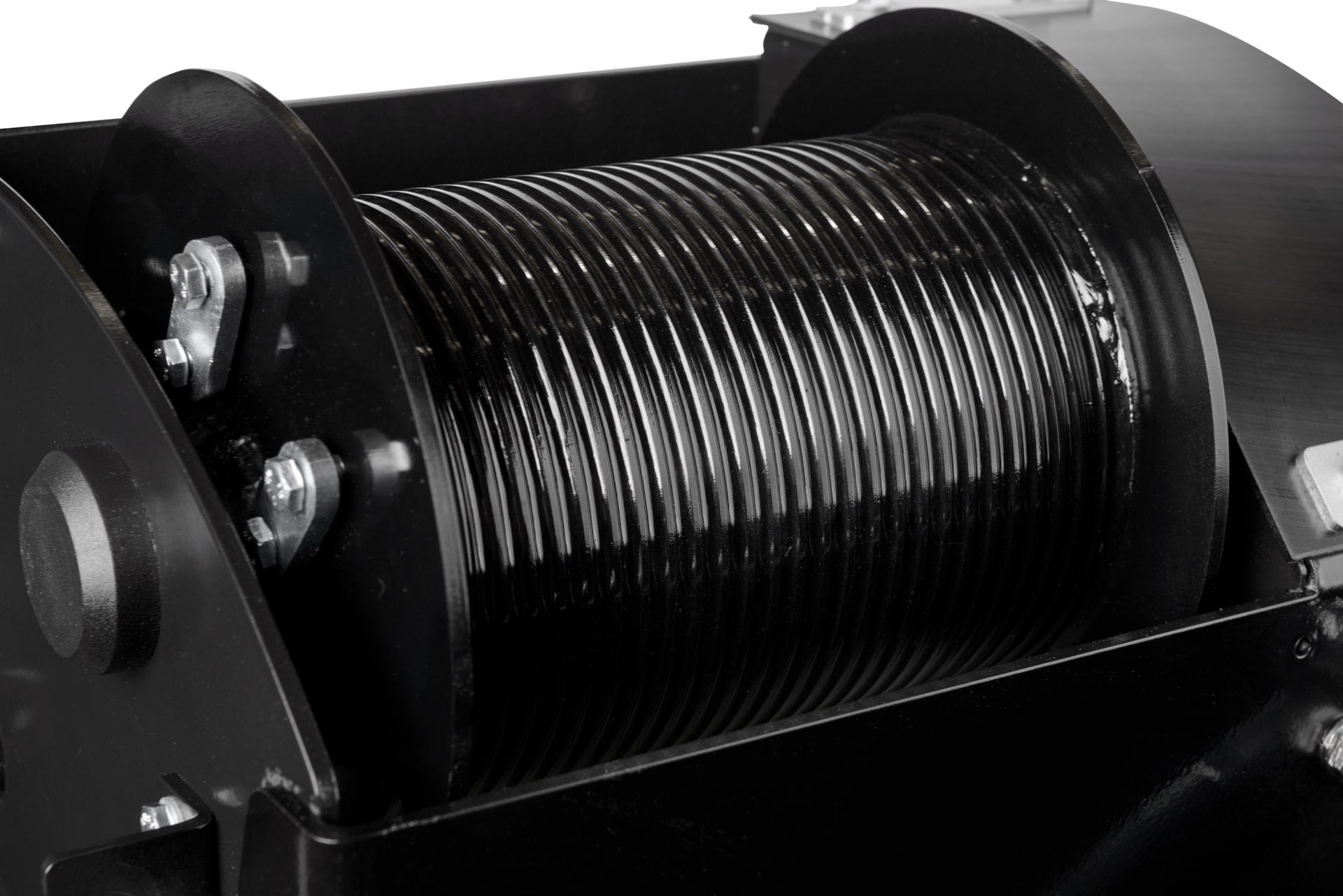

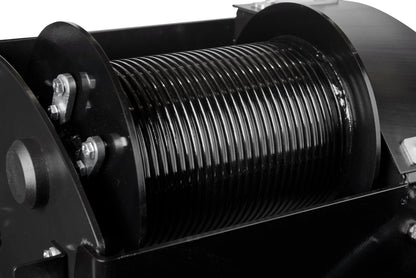

• Grooved drum for single-layer storage of wire rope (10m rope capacity as standard, larger capacity upon request)
• Two load pressure brakes with double ratchet system for safe stable hold of the load in any position

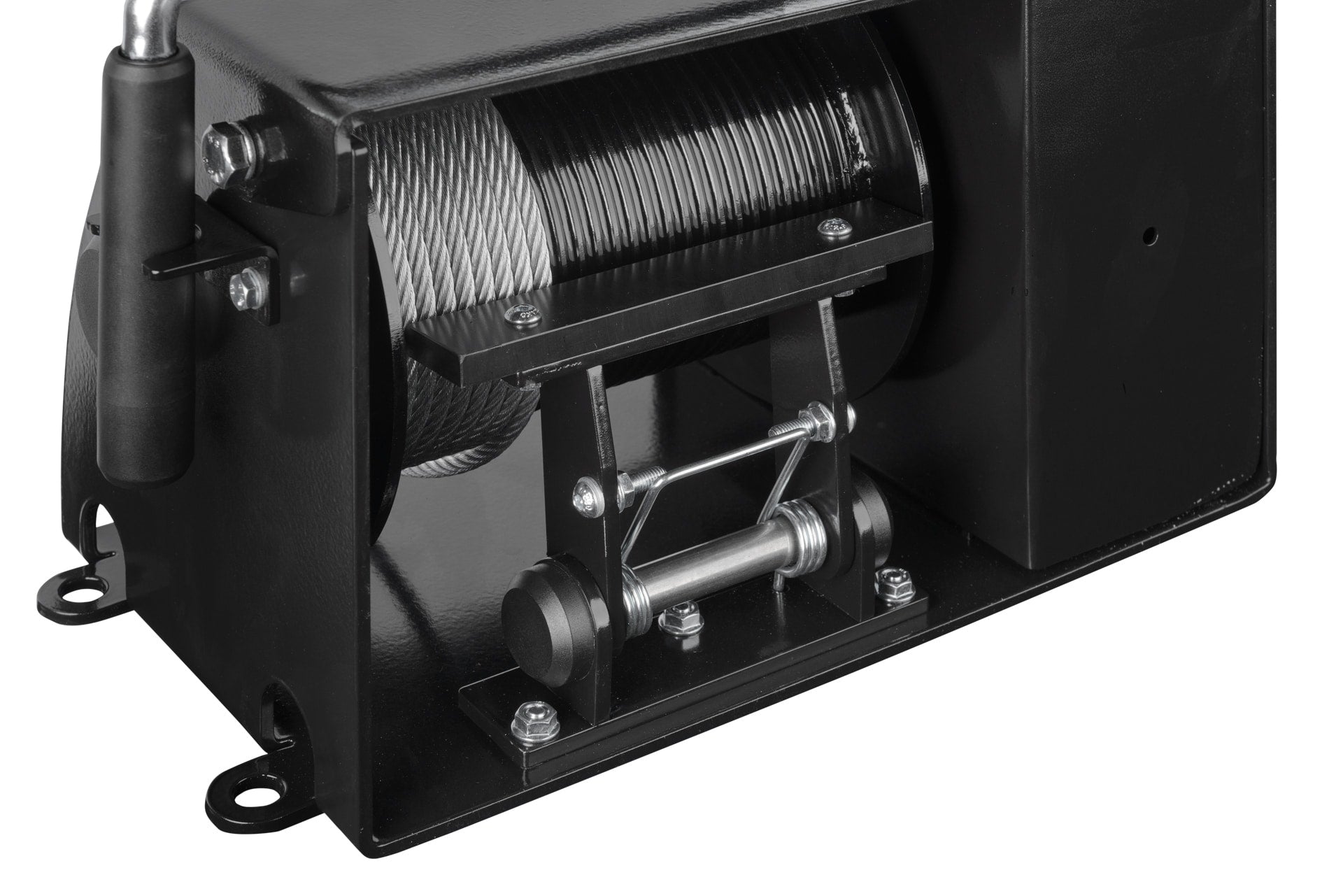

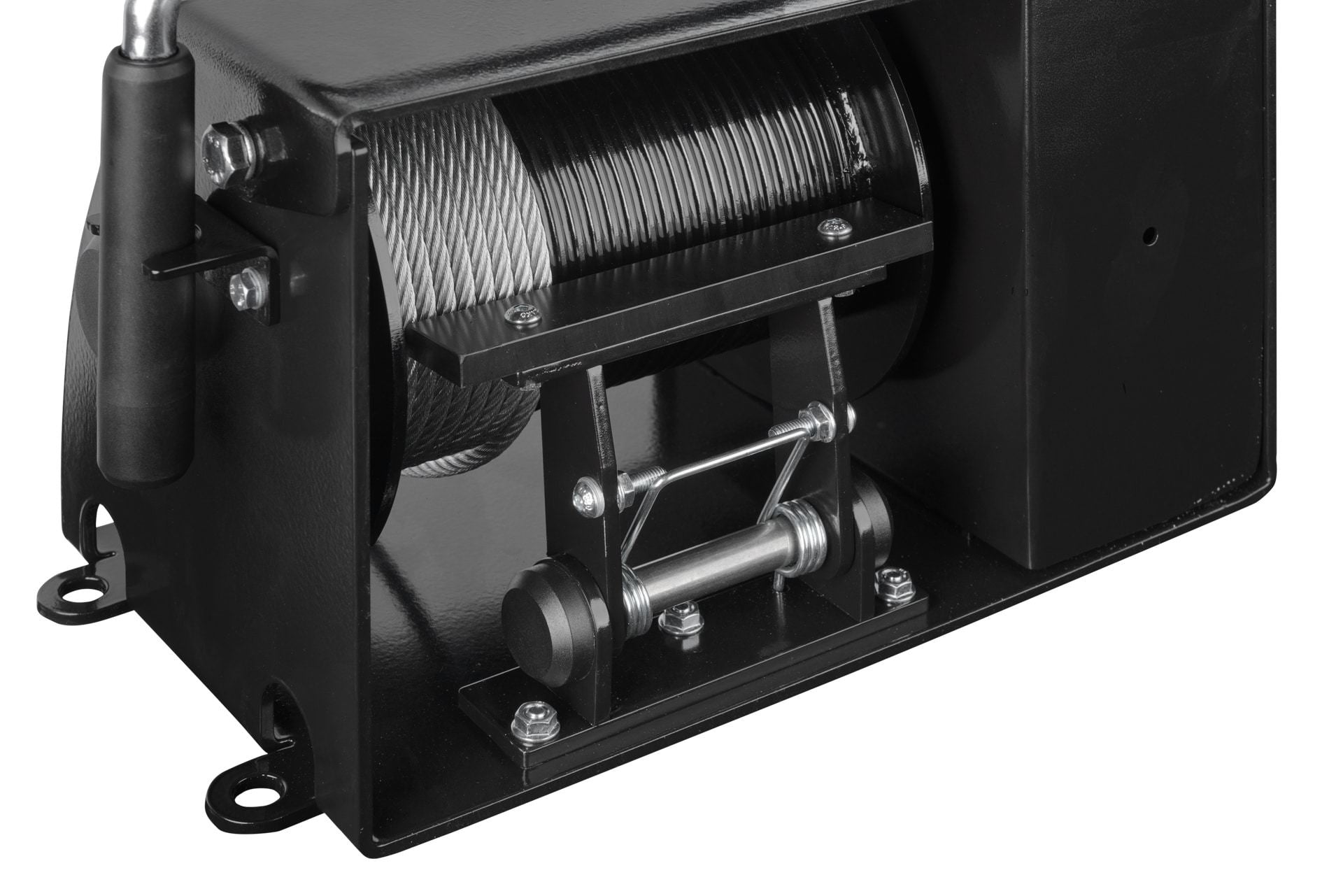

• Equipped with a spring loaded pressure roller for smooth winding on the drum

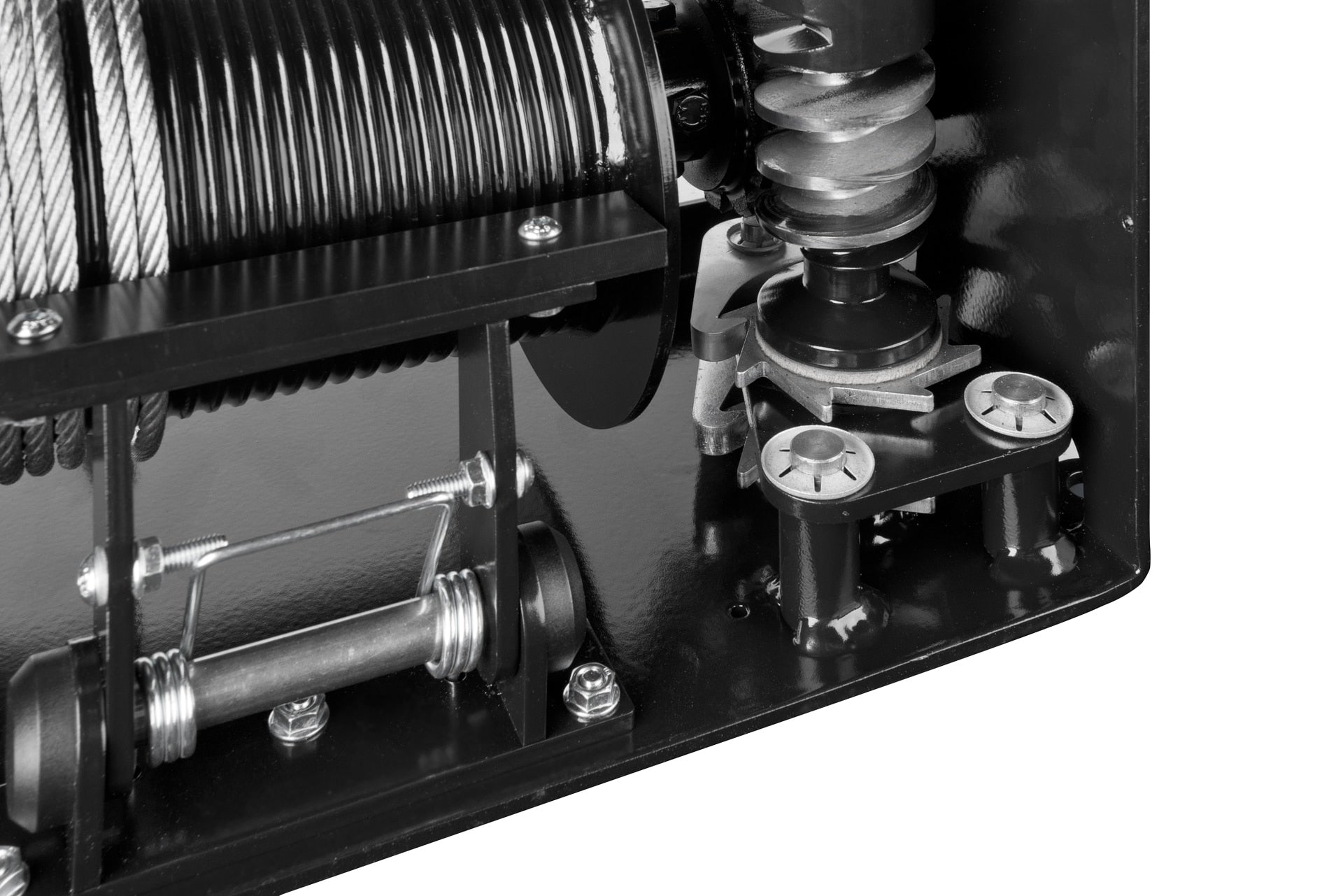

• Right angled, easy to grease worm transmission and maintenance free bearings
• Cable outlet upwards, downwards or at rear

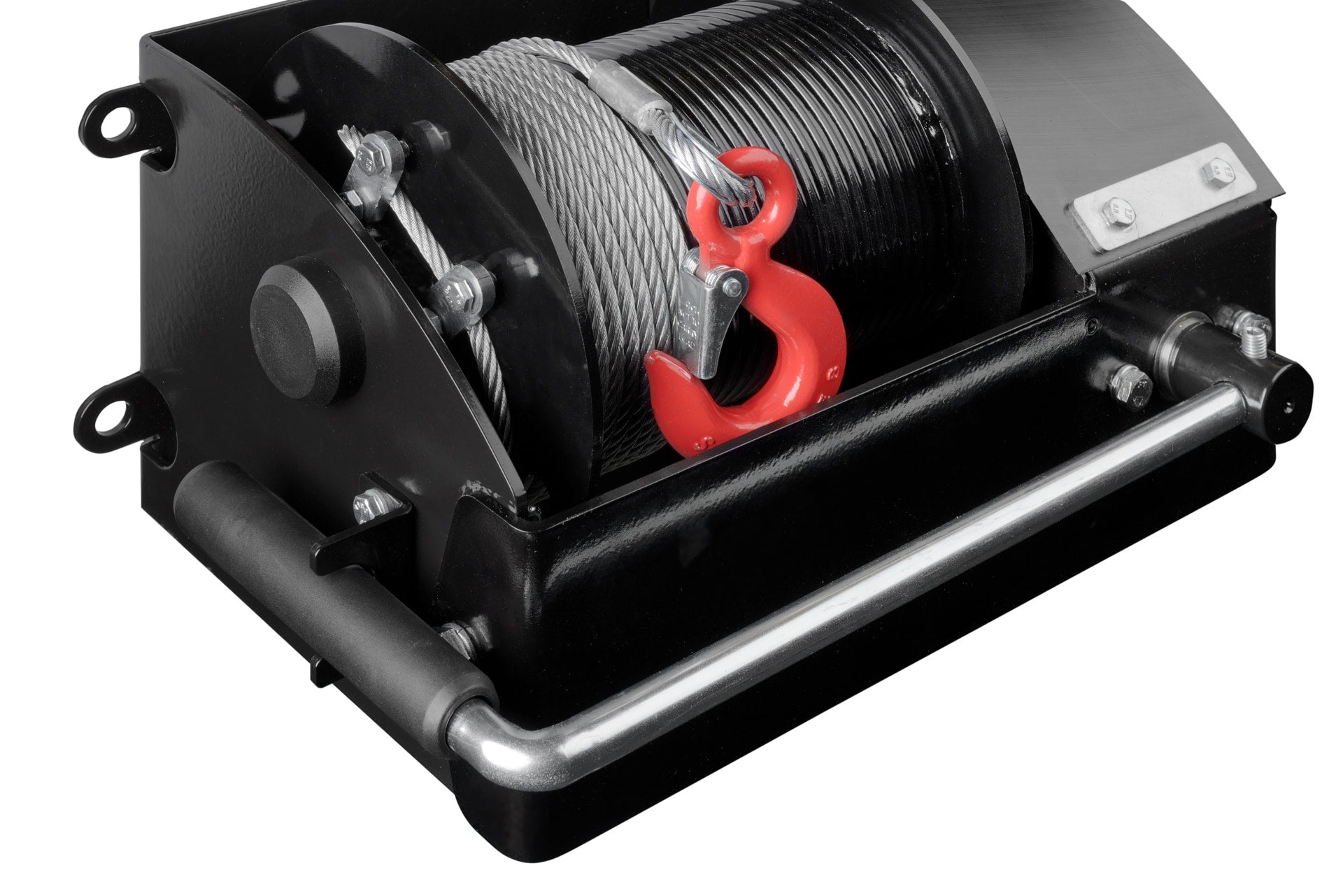

• Double wire rope fastening for extra safety
• Adjustable crank, with ergonomic grip
• Suitable for wall and floor mounting
• Simple and quick attachment
• Paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL9005 (black)

Available Options (Price on request to sales@rigginguk.co.uk)

• 2 layers of paint in compliance with DIN/ISO 12944, C3M
• Twin Drum Compartment
• Floor Mounting Holes
• Free-spooling device for pulling applications. To disengage the drum
• Large Drum with 20m rope capacity

Downloads

  TW300 Theatre Winch Data Sheet

Legislation

• complies with EN17206
• 2 load pressure brakes, static safety factor 8:1
• grooved drum with pressure roller
