Tecpos Shorty Cylinder

by Tecpos
£284.58

SKU :286-702-1

Capacity
Stroke/Oil Capacity

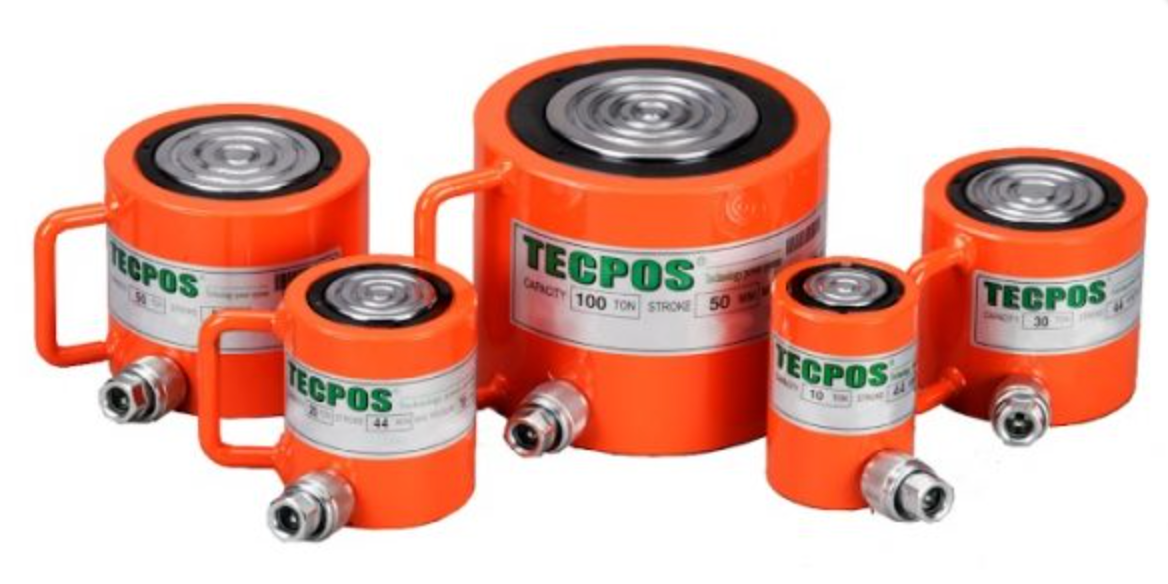

Tecpos Shorty Cylinder - TSSC Series
  • Maximum Pressure: 700 Bar.
  • Hydraulic Coupler: TBC 381F(PT3/8).
  • Orange painted finish.
  • Compact, flat design for use where other cylinders will not fit.
  • Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
  • Certification available  2.1    DoC



Understanding the Code

  • T – Tecpos
  • SSC – Shorty cylinder
  • 10 – Capacity: 10 tonnes
  • 44 – Stroke: 44mm
      Please refer to specification table for pump to suit cylinder.

        Spec

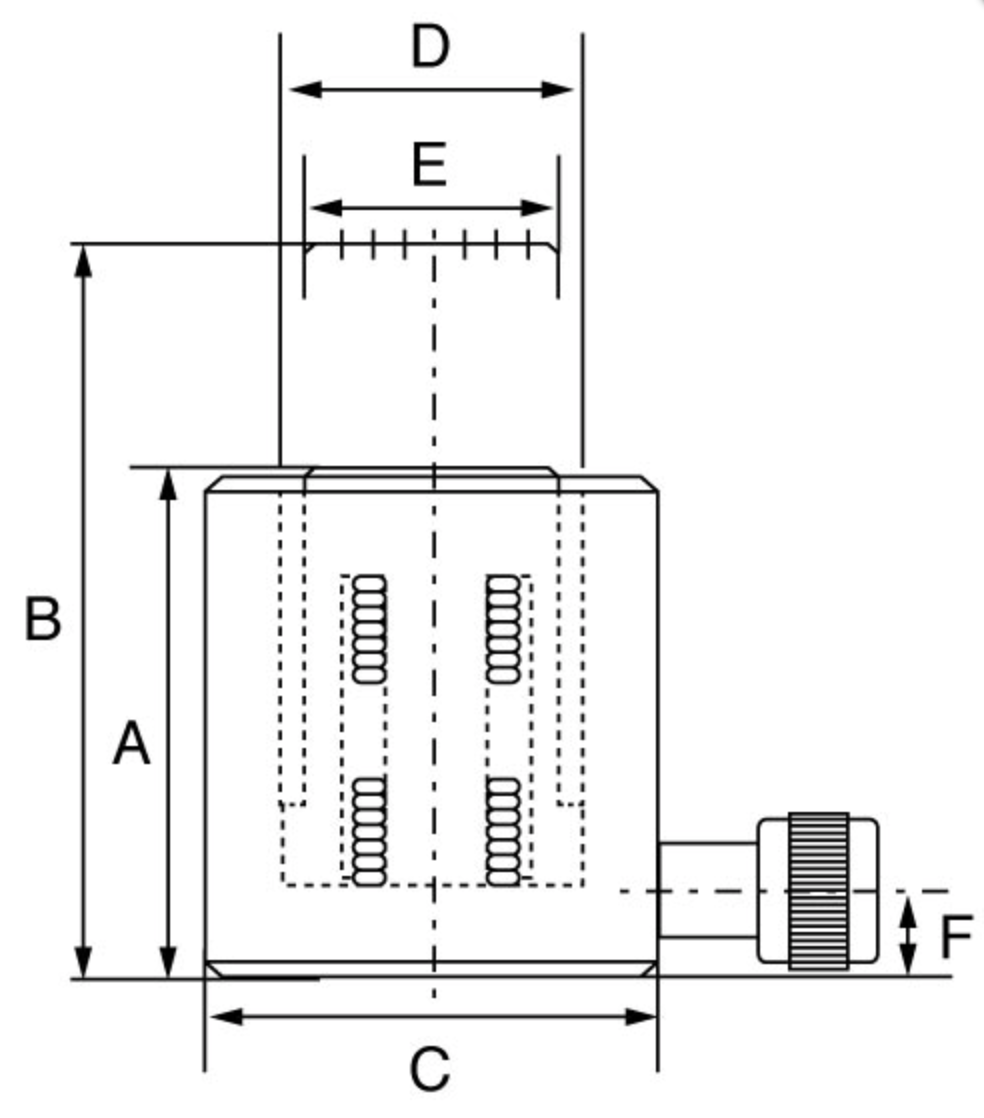

        SKU Product Code Cyl. Cap. Stroke Suits Pump Cyl. Effective Area Oil Cap. Retracted Height Extended Height Cyl. Out Dia. Cyl. Bore Dia. Piston Rod Dia. Base to inlet port Weight Pump
        t mm
        cm2
        cc A mm B mm C mm D mm E mm H mm kgs
        286-702-1 TSSC1044 10 44 THP1B or ESP08 15.2 66 99 143 68 44 38 17 2.6 1B or 08
        286-702-2 TSSC2044 20 44 THP1B or ESP08 28.3 124 99 143 88 60 51 17 4.3 1B or 08
        286-702-3 TSSC3044 30 44 THP1B or ESP08 44.2 194 99 143 105 75 64 17 6.2 1B or 08
        286-702-4 TSSC5050 50 50 THP1B or ESP08 63.6 318 109 159 125 90 75 19 10.2 1B or 08
        286-702-5 TSSC10050 100 50 THP1C or ESP17 132.7 663 139 189 165 130 100 27 21 1C or 17
        286-702-X TSSC15050 150 50 201 1005 170 220 208 160 135 33 41.1 1C or 17
        286-702-6 TSSC20050 200 50 THP1C or ESP17 283.5 1417 180 230 245 190 170 38 60.3 1C or 17





         Duct rod data sheetProduct data sheet (COMING SOON)
