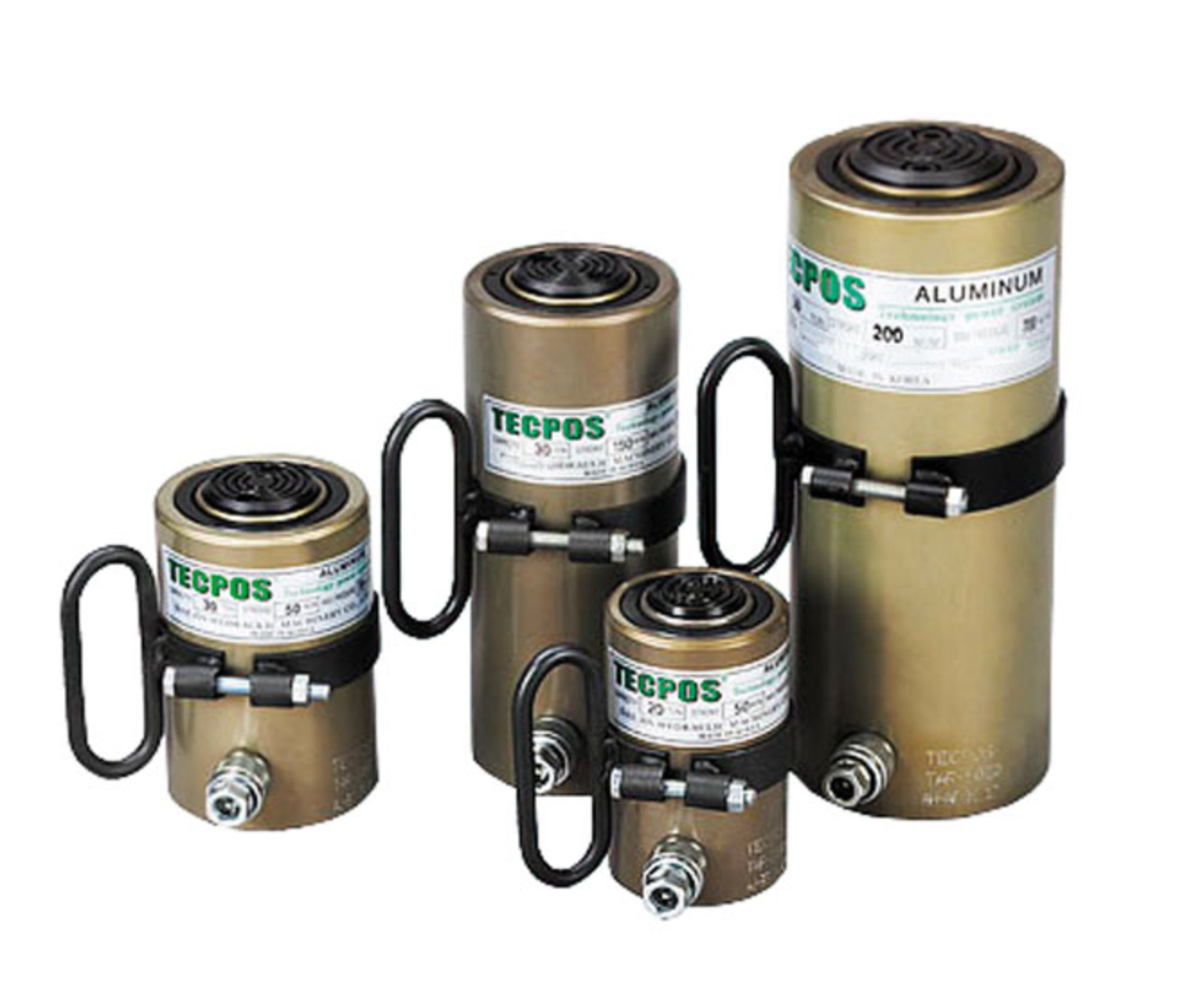

Tecpos Aluminium Cylinder

by Tecpos
£898.16

SKU :286-706-1

Capacity
Stroke/Oil Capacity
Tecpos Aluminium Cylinder - TAR Series
  • Maximum Pressure: 700 Bar.
  • Hydraulic Coupler: TBC 381F(PT3/8).
  • Spring return.
  • Marked with CE, capacity, manufacturers ID, product ID mark and traceability code.
  • Certification available DoC



Understanding the Code

  • T – Tecpos
  • AR – Aluminium
  • 20 – Capacity: 20 tonnes
  • 50 – Stroke: 50mm
    Compatible pumps can be found on these links:



        Spec

        Product Code Cyl. Cap. Stroke Cyl. Effective Area Oil Cap. Retracted Height Extended Height Cyl. Out Dia Cyl. Bore Dia Piston Rod Dia Base to Inlet Port Weight Pump
        t mm
        cm2
        cc A mm B mm C mm D mm E mm F mm kgs
        TAR2050 20 50 28.3 145 150 200 89 60 54 28 3.2 1B or 08
        TAR20100 20 100 28.3 290 200 300 89 60 54 28 4.1 1B or 08
        TAR20150 20 150 28.3 435 250 400 89 60 54 28 4.8 1B or 08
        TAR3050 30 50 44.2 220 168 218 108 75 65 35 5 1B or 08
        TAR30100 30 100 44.2 440 218 318 108 75 65 35 6.3 1B or 08
        TAR30150 30 150 44.2 660 268 418 108 75 65 35 7.5 1C or 17
        TAR5050 50 50 70.9 355 182 232 134 95 85 35 8.7 1B or 08
        TAR50100 50 100 70.9 708 232 332 134 95 85 35 10.2 1C or 17
        TAR50150 50 150 70.9 1,063 282 432 134 95 85 35 12.9 1C or 17
        TAR10050 100 50 132.8 660 193 243 189 130 110 40 16.5 1C or 17
        TAR100100 100 100 132.8 1,320 243 343 189 130 110 40 20.6 25
        TAR100150 100 150 132.8 1,980 293 443 189 130 110 40 23.4 25
        TAR15050 150 50 201.1 1,005 208 258 238 160 135 45 27 25
        TAR150100 150 100 201.1 2,010 258 358 238 160 135 45 33.4 25
        TAR150150 150 150 201.1 3,016 308 458 238 160 135 45 39.8 50
