Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604)

Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604)

SKU: 182-604-135

Pre-order today – estimated dispatch within 3–4 weeks

Skip to product information
1 of 1

ORPTECH

Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604)

Sheaves for Wire Rope, with self-lubricating bushing (Model No. 604)

SKU: 182-604-135

Read More

Pre-order today – estimated dispatch within 3–4 weeks

Regular price £120.00
Regular price RRP Sale price TODAY'S PRICE £120.00

Pre Order

Tax included. Shipping calculated at checkout.

PRE-ORDER 3 WEEKS

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 weeks from order.

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from Bury
View full details

Description

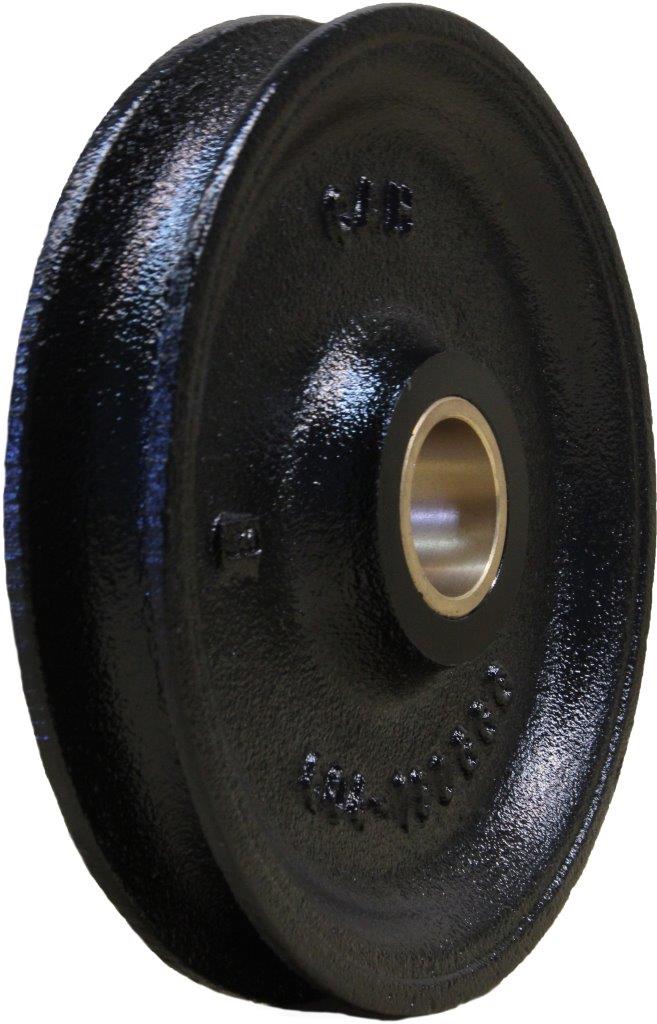

Sheaves for Wire Rope, previously DIN 82235 (Model No. 604)

Made of spheroidal graphite iron, with solid web and self-lubricating bushing, compatible with span blocks No. 601 (previously DIN 82221) and snatch blocks for wire rope No. 617 (previously DIN 82220).

Groove base Ø = 9x rope Ø.

Range of pulley capacity from 20,00kg up to 25,000kg

Range of pulley diameter from 135mm up to 455mm

Spec

SKU
182-604-135 182-604-180 182-604-220
182-604-260 182-604-290 182-604-330 182-604-365 182-604-415 182-604-455
Nominal Size 1 2 3 4 5 6 8 10 12

 Sheave External Ø

mm

135

180 220 260 290 330 365 415 455

Groove Base Ø

mm

112 150 180 216 236 270 300 340 375

Groove Radius

mm

8 10 12 13 15 17 19 21 23

Groove Depth

mm

11 15 20 22 27 30 32 37 40

Rim Width

mm

25 31 39 45 51 57 64 71 79

Bore for Bolt

mm

22 32 40 45 50 55 65 70 80

Hub Length

mm

27 34 42 48 54 60 67 75 83
Hub Ø mm 42 56 70 80 85 96 105 120 125
Rope Ø max.
mm 14 18 22 24 28 32 36 40 44

Load Capacity (in kg).

kg

2000 4000 6300 8000 10000 12500 16000 20000 25000

Weight (in kg) approx.

kg

2 4 5 8 9 16 20 28 35
