Description

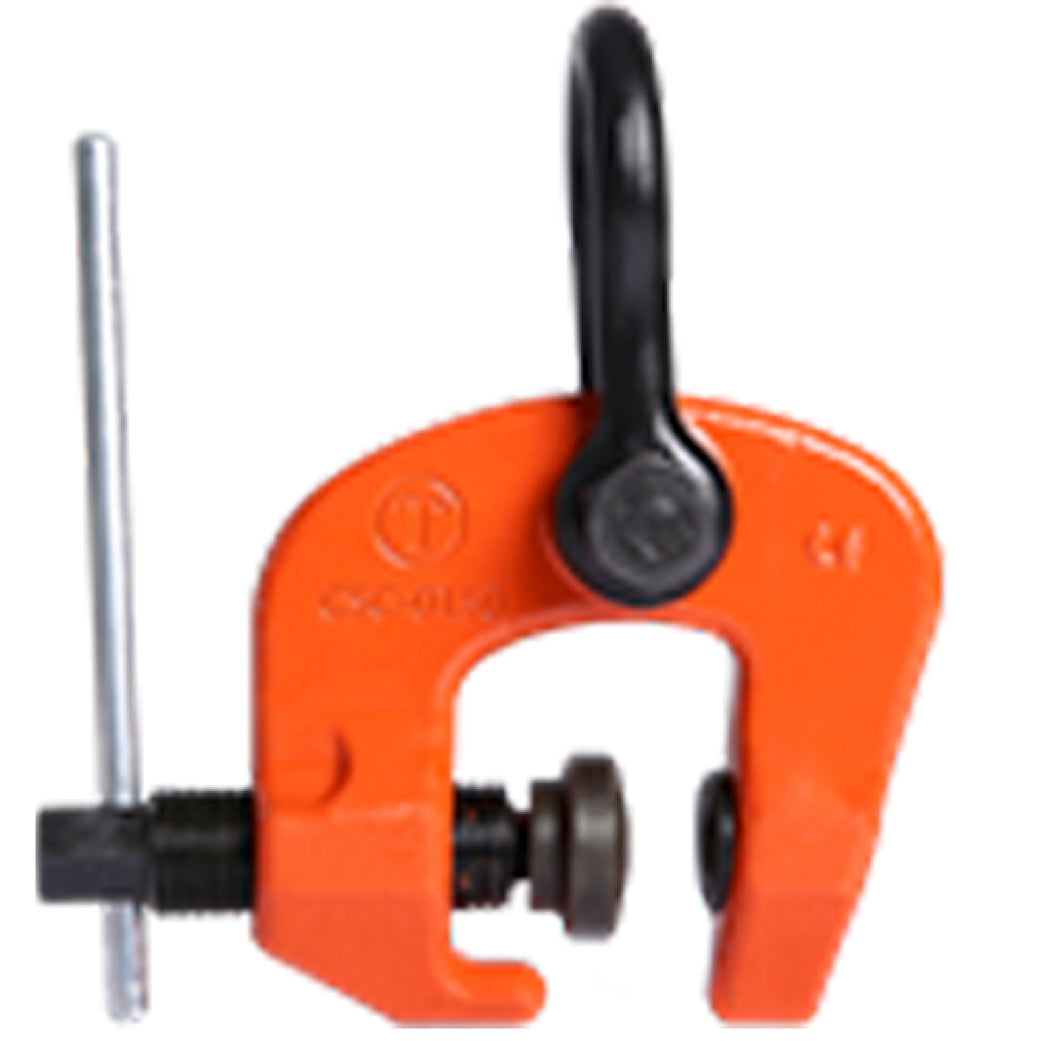

TIGER SCREW CAM PLATE CLAMP - CSC Ref: 240-3

The Tiger Screw Cam Plate Clamp provides vertical and horizontal lifting and transportation of a large variety of steel structures. It can also be attached upside down and be used as a temporary lifting point. The CSC is equipped with a safety screw spindle mechanism, ensuring that the clamp does not slip when lifting force is applied.

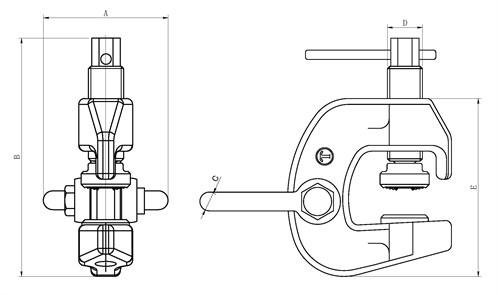

SKU	Capacity (tonne)	Dimensions (mm)						Net Weight (kg)
SKU	Capacity (tonne)	Jaw Opening (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Net Weight (kg)
240-3-1	0.5t	0-28	52	158	11	18	105	0.7
240-3-2	1.5t	0-32	77	210	16	30	152	4.0
240-3-3	3.0t	0-50	88	270	19	36	191	6.0
240-3-4	6.0t	0-75	153	290	32	45	255	18.0

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
