RUNPOCAM RC 2 MULTIFUNCTION-CAMERA

£480.69

SKU :123-1-17

Size

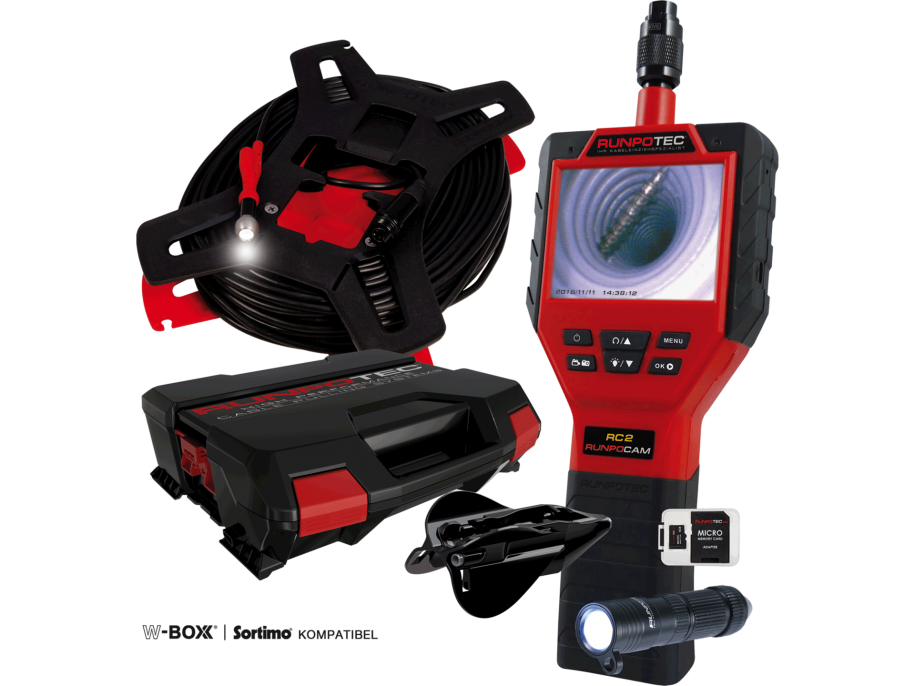

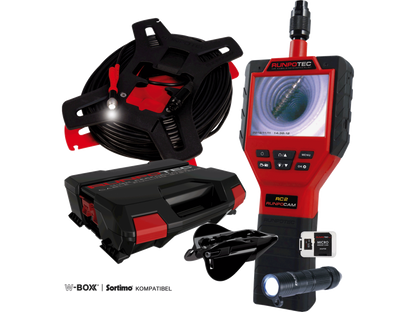

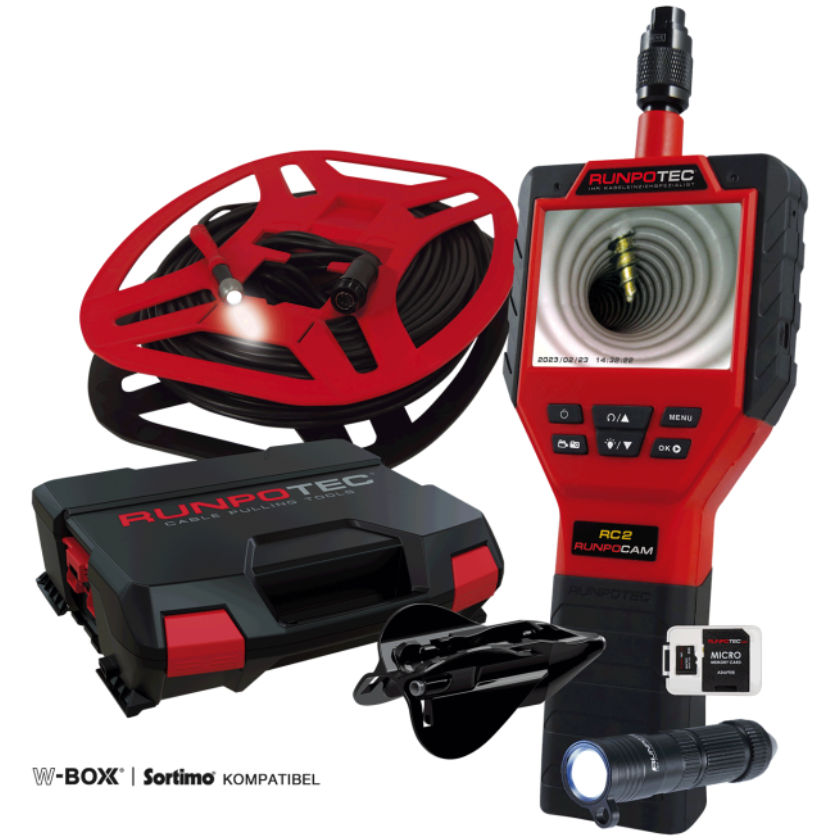

RUNPOCAM RC2 multifunctional camera with cable lengths of 10 m, 30 m and 50 m with coil incl. monitor bracket. In W-Boxx system case - compatible with Sortimo. Extra large 3.5" TFT LCD 16 m colour display, protection class IP67, battery operation up to 6 hours. Evidence preservation/storage function: photo, video (HD) and audio. CAMERA HEAD with 6 integrated LEDs, enclosed in robust stainless steel head (Ø 13 mm) with RTG Ø 6 mm internal thread. Compatible to all RUNPOTEC products with RTG Ø 6 mm thread (POWER REX, RUNPOSTICKS, RUNPO 1, glass fibre rod Ø 4.5 - 6 - 7.5 - 9 - 11 - 15 mm).

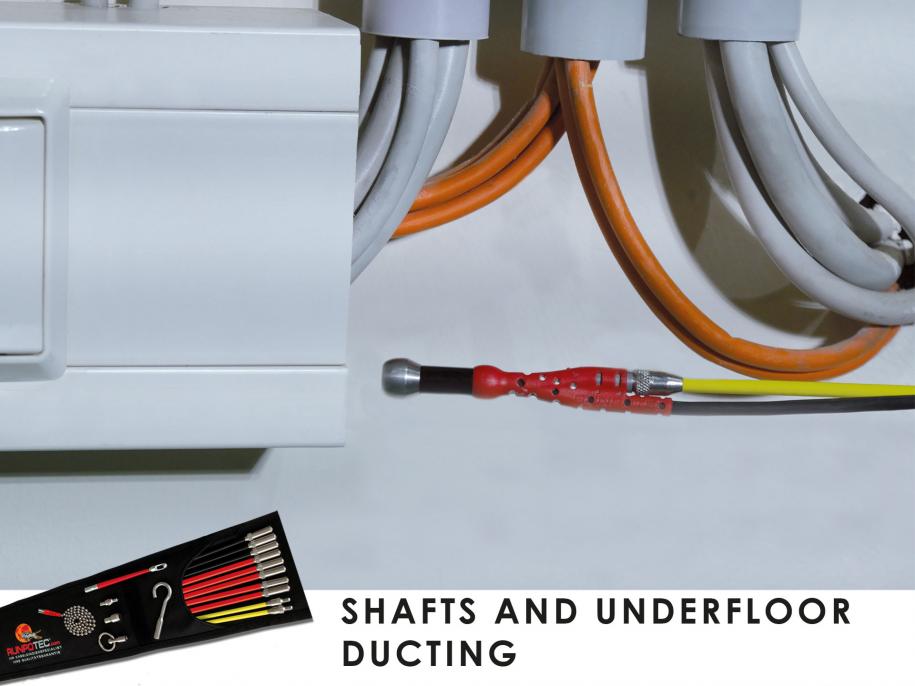

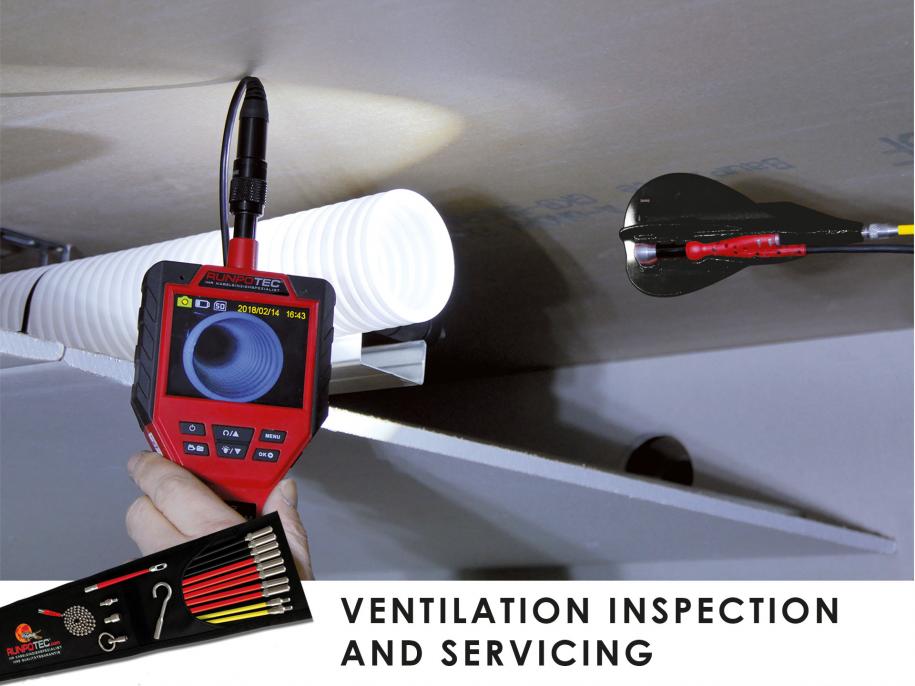

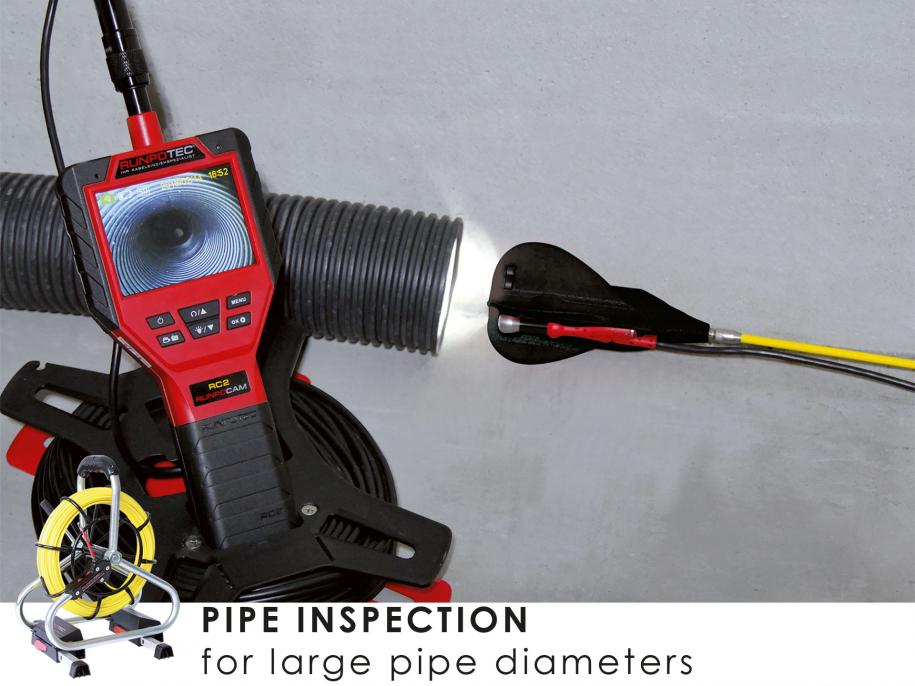

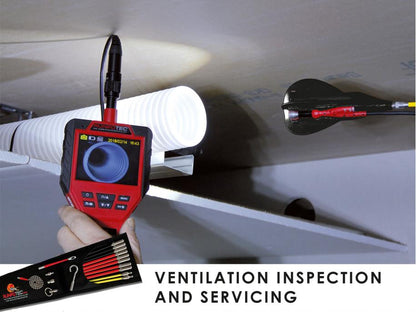

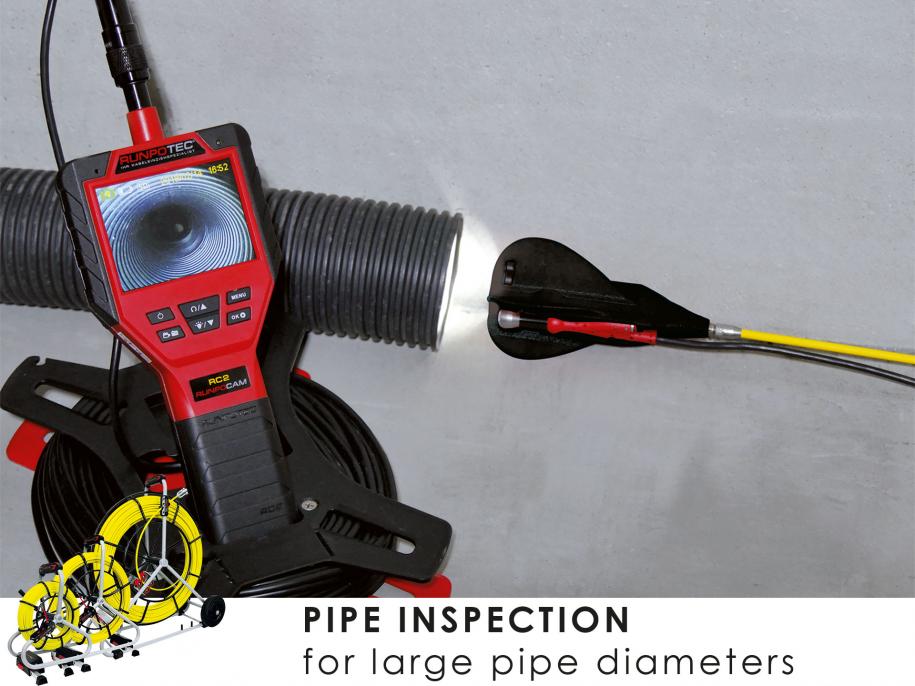

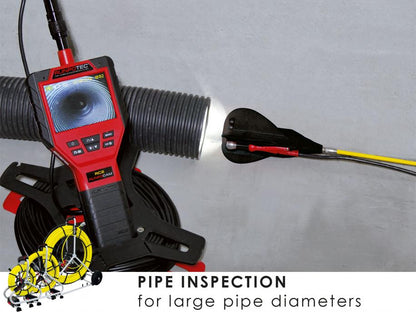

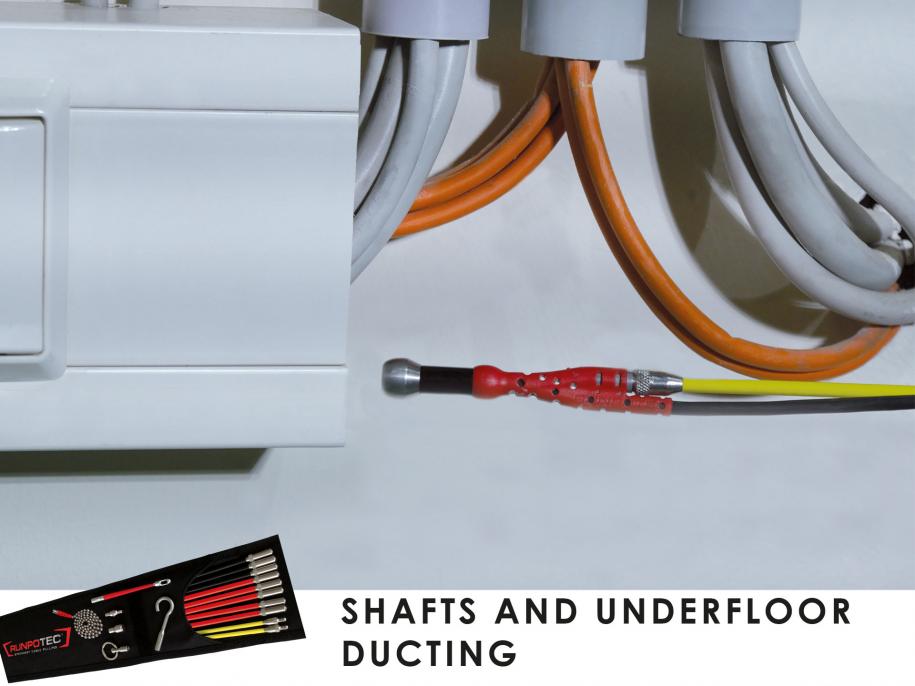

Optimal field of application: For pipe inspections over long distances of up to 50 m. As of 14 mm inner diameter (corresponds to empty pipe Ø 20 mm), but also for larger pipe cross-sections (ventilation systems, drainage systems, sewage pipes etc.). In combination with the RUNPOSTICKS, excellent for cavity wall inspections, suspended ceilings (above high ceiling profiles), manhole and underfloor ducts, maintenance and system inspections.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.

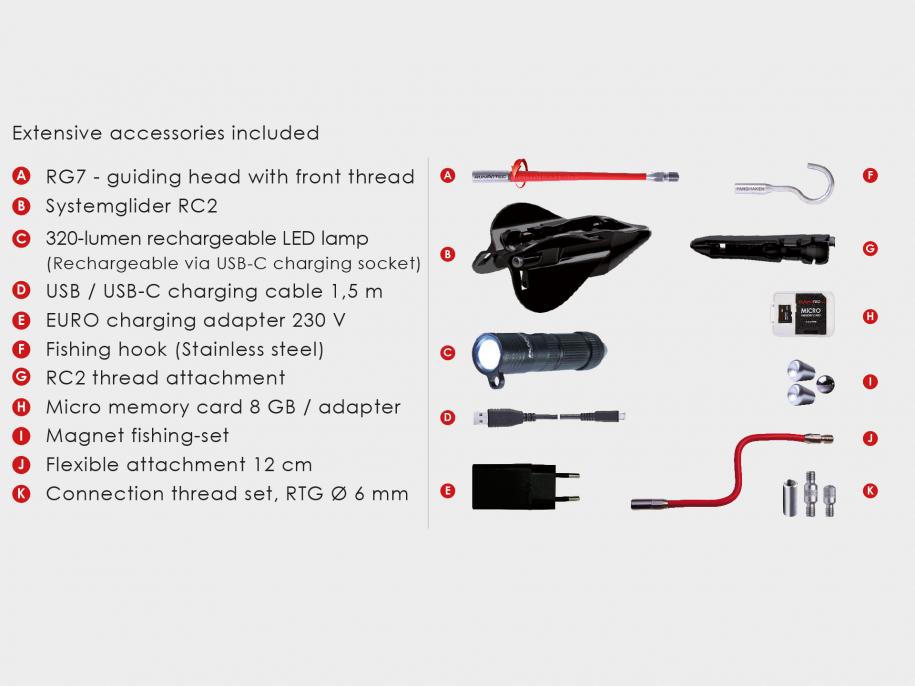

Scope of delivery: RUNPOCAM RC2 with cable incl. reel in system case. Accessories: RUNPOGLEITER with front thread, system slide, LED-battery high performance 320 lumen lamp, Micro Memory Card 8 GB, magnetic catch set, connecting thread set RTG Ø 6 mm, catch hook, 2-fold USB charging plug 12 V, flexible attachment 12 cm, USB cable 3 m, 2-fold USB charging plug 230 V, threaded attachment RC 2, USB charging cable for LED-battery lamp

ADVANTAGES

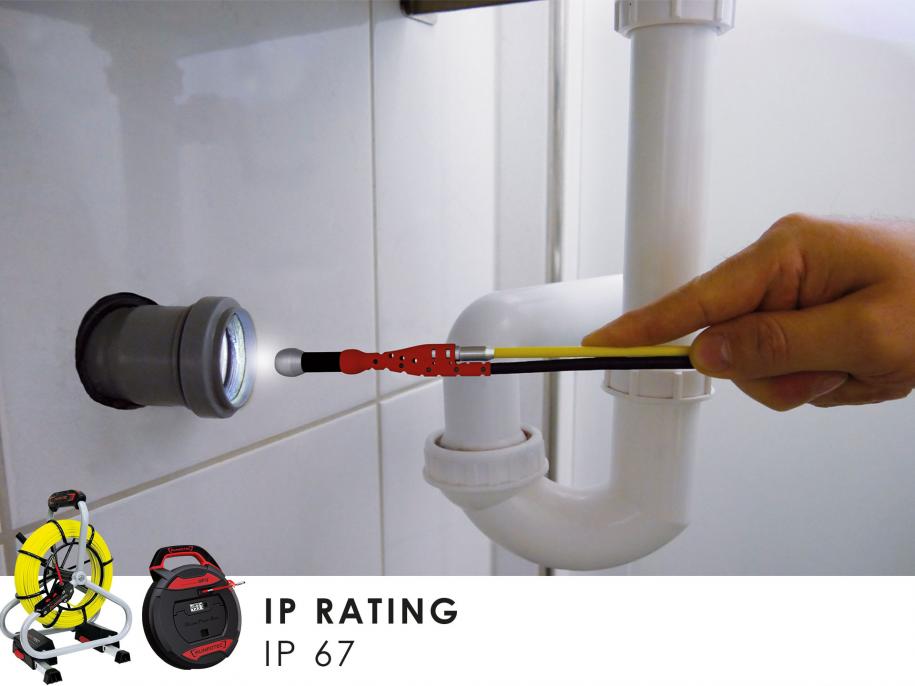

  • Protection class IP67

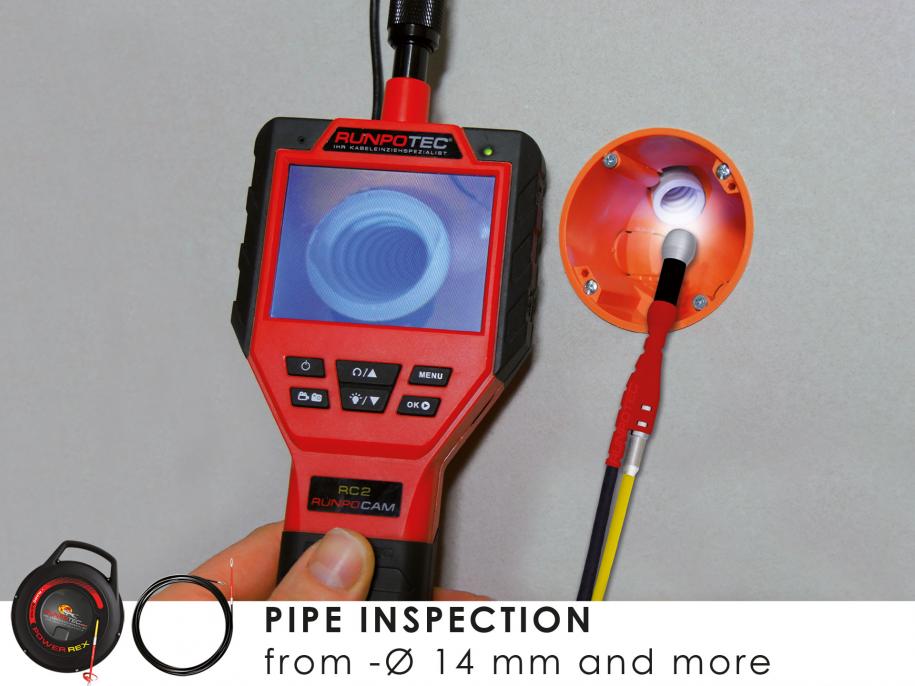

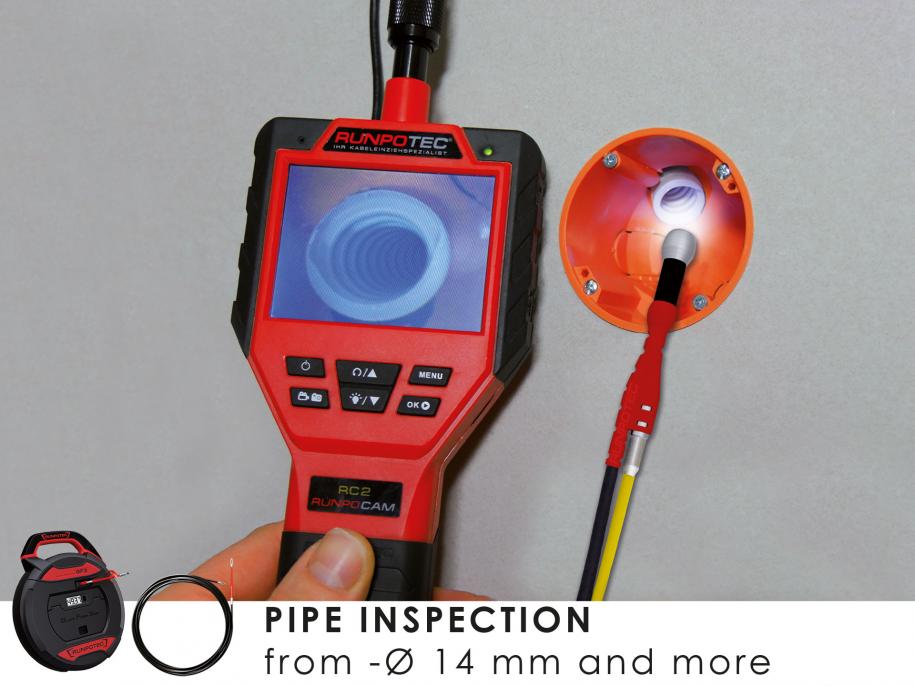

  • Pipe inspection from Ø 14 mm (inside)

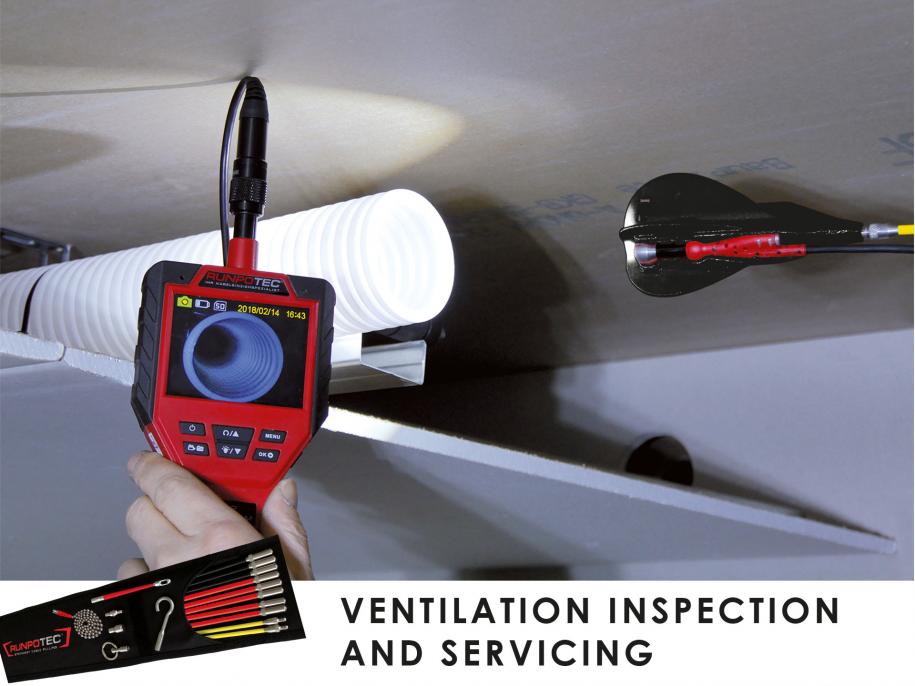

  • Ventilation pipes, drainage pipes, sewage pipes and much more

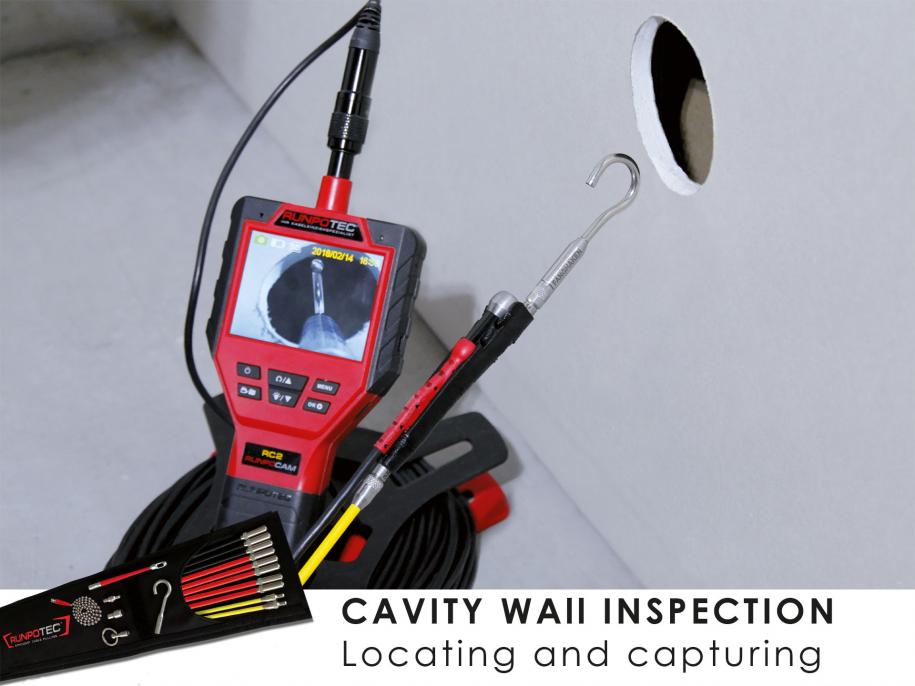

  • Also for cavity inspection and suspended ceilings
  • Lengths 10 m, 30 m or 50 m
  • Memory function/documented evidence
    Photo (JPG), Video HD (AVI) and Audio
  • Spool with camera cable can be easily unwound or rewound via the X BOARD series

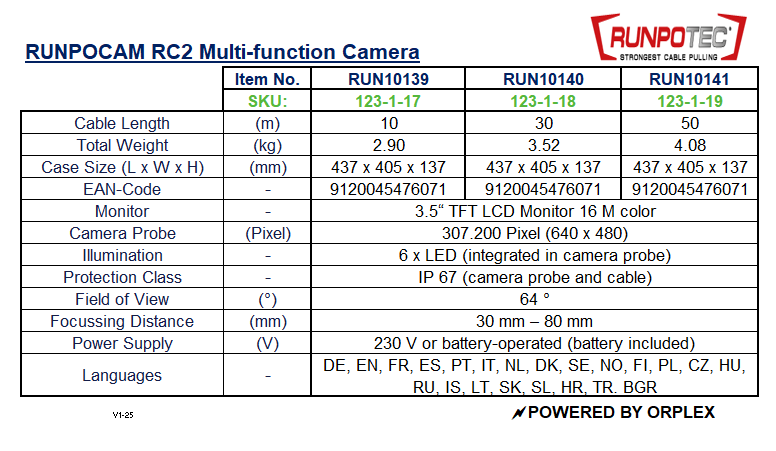

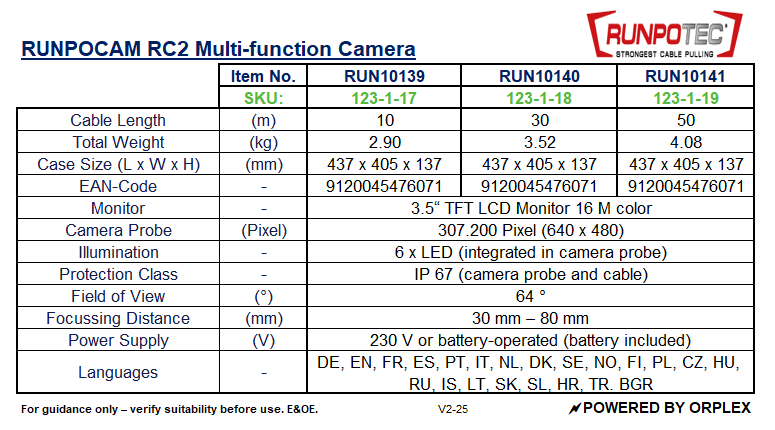

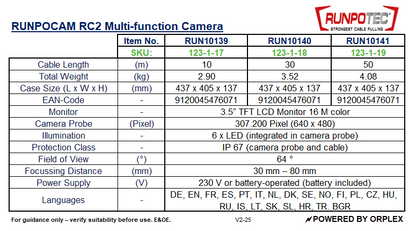

Spec (10M, 30M AND 50M)

Dimensions: L 442 x B 404 x H 142 mm
Length: 10 Meter
Recommended tube-Ø: As of 14 mm inner diameter
Weight: 2,90 kg
Case size: B 395 x L x 434 mm x H 135 mm
Monitor: 3.5" TFT LCD Monitor 16 M color
Camera probe: 345.000 Pixel (640 x 480)
Illumination: 6 x LED (integrated in camera probe)
Protection rating: IP 67 (camera probe and cable)
Field of view: 64 °
Focussing distance: 30 mm - 80 mm
Power Supply: 230 V or battery-operated (battery included)
Languages: DE, EN, FR, ES, PT, IT, NL, DA, SE, NO, FI, PL, CS, HU, RU, IS, LT, SK, SLO, HR, TR
EAN-Code: 9120045475555



Dimensions: L 442 x B 404 x H 142 mm
Length: 10 Meter
Recommended tube-Ø: As of 14 mm inner diameter
Weight: 3,54 kg
Case size: B 395 x L x 434 mm x H 135 mm
Monitor: 3.5" TFT LCD Monitor 16 M color
Camera probe: 345.000 Pixel (640 x 480)
Illumination: 6 x LED (integrated in camera probe)
Protection rating: IP 67 (camera probe and cable)
Field of view: 64 °
Focussing distance: 30 mm - 80 mm
Power Supply: 230 V or battery-operated (battery included)
Languages: DE, EN, FR, ES, PT, IT, NL, DA, SE, NO, FI, PL, CS, HU, RU, IS, LT, SK, SLO, HR, TR
EAN-Code: 9120045475562



Dimensions: L 442 x B 404 x H 142 mm
Length: 10 Meter
Recommended tube-Ø: As of 14 mm inner diameter
Weight: 4,18 kg
Case size: B 395 x L x 434 mm x H 135 mm
Monitor: 3.5" TFT LCD Monitor 16 M color
Camera probe: 345.000 Pixel (640 x 480)
Illumination: 6 x LED (integrated in camera probe)
Protection rating: IP 67 (camera probe and cable)
Field of view: 64 °
Focussing distance: 30 mm - 80 mm
Power Supply: 230 V or battery-operated (battery included)
Languages: DE, EN, FR, ES, PT, IT, NL, DA, SE, NO, FI, PL, CS, HU, RU, IS, LT, SK, SLO, HR, TR
EAN-Code: 9120045475579
