Rope Pulley made of Stainless Steel with Self Lubricating Bushing (Model No. 1302)

Name: Rope Pulley made of Stainless Steel with Self Lubricating Bushing (Model No. 1302)
Brand: ORPTECH
SKU: 182-1302-50
Price: 177.60 GBP
Availability: InStock

Stainless Steel Sheaves with Self Lubricating Bushing (Model No. 1302) Stainless pulleys made of grade 1.4301 stainless steel, turned groove, with self-lubricating bushing. Range of pulley capacity from 100kg up to 750kg Range... Read More

ORPTECH SKU: 182-1302-50

£177.60

Sale TODAY'S PRICE £177.60

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

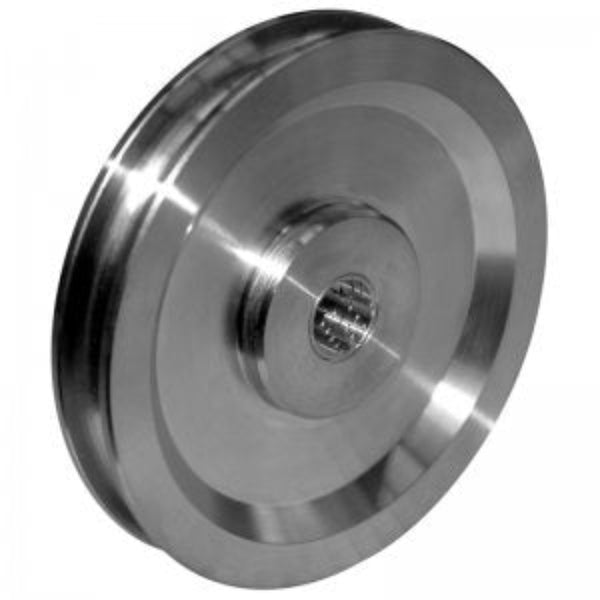

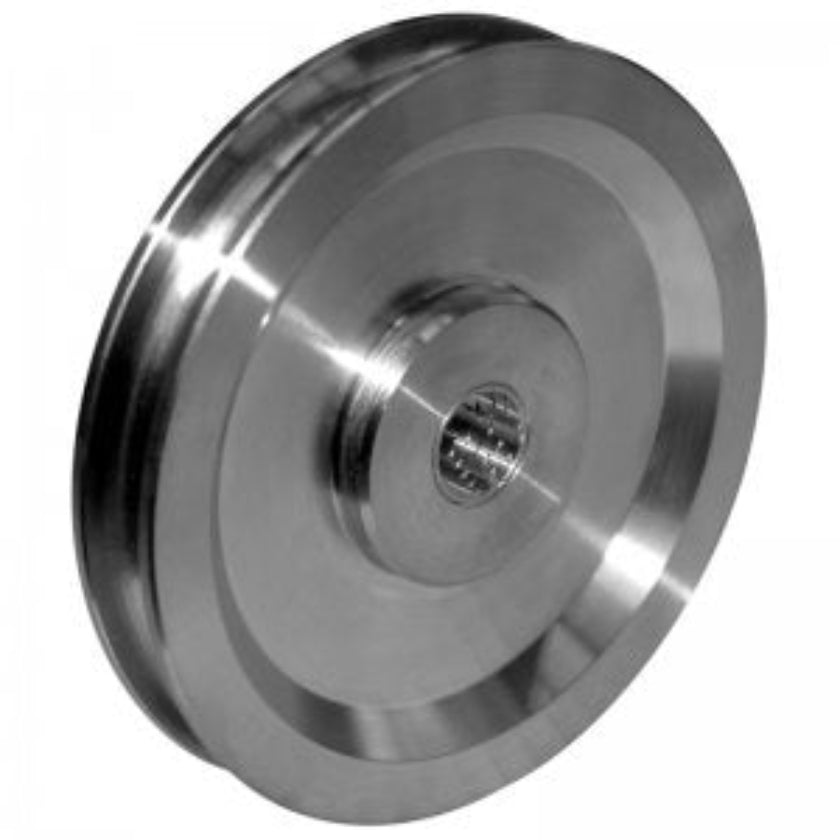

Stainless Steel Sheaves with Self Lubricating Bushing (Model No. 1302)

Stainless pulleys made of grade 1.4301 stainless steel, turned groove, with self-lubricating bushing.

Range of pulley capacity from 100kg up to 750kg

Range of pulley diameter from 50mm up to 150mm

Please note, these products have a lead-time of around 3 weeks from order date if not in stock in our UK warehouse

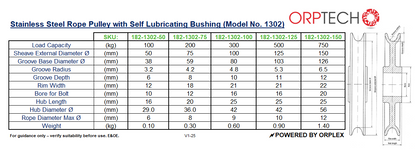

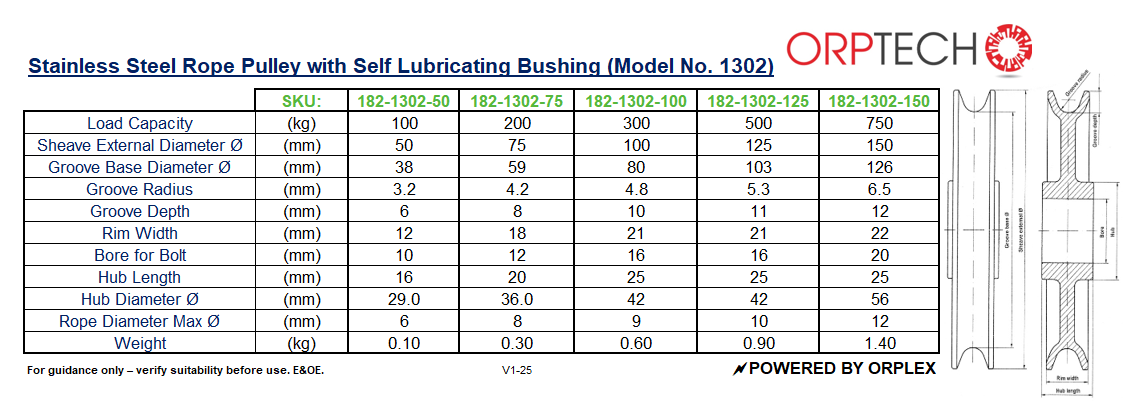

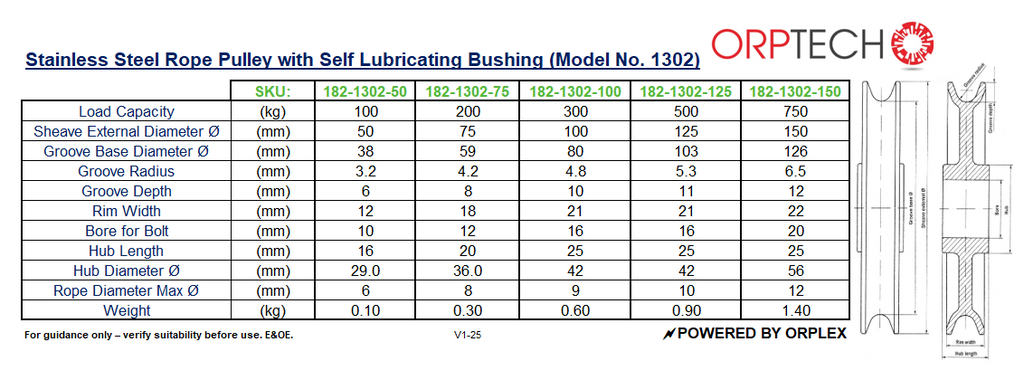

Specification

Manufacturers Spec

Download - 182-1302_Data_Sheet_V1-25.pdf

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

Could provide the tolerances for the bushing id for SKU 182-1302-150? I just want to make sure we undersize the pin for it correctly.

The bore is 20 H7 for the 182-1302-150 mm.
