PCH2000 Petrol | 1150kg Pulling & 450kg Lifting Capstan
PCH2000 Petrol Winch Pull/Lift Version For maximum lifting capacity! The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such... Read More
Portable Winch SKU: 167-3-2
Regular price
£4,558.80
Regular price
Sale
Sale price
TODAY'S PRICE
£4,558.80
Unit price
per
Pre Order
StockTax included.
Shipping calculated at checkout.
Pre-order today – estimated dispatch within 3–4 weeks
Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.
Estimated build / lead-time
Approximately 3 to 4 weeks from order.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

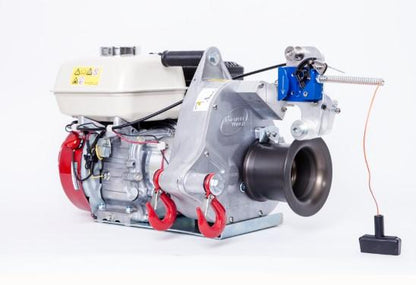

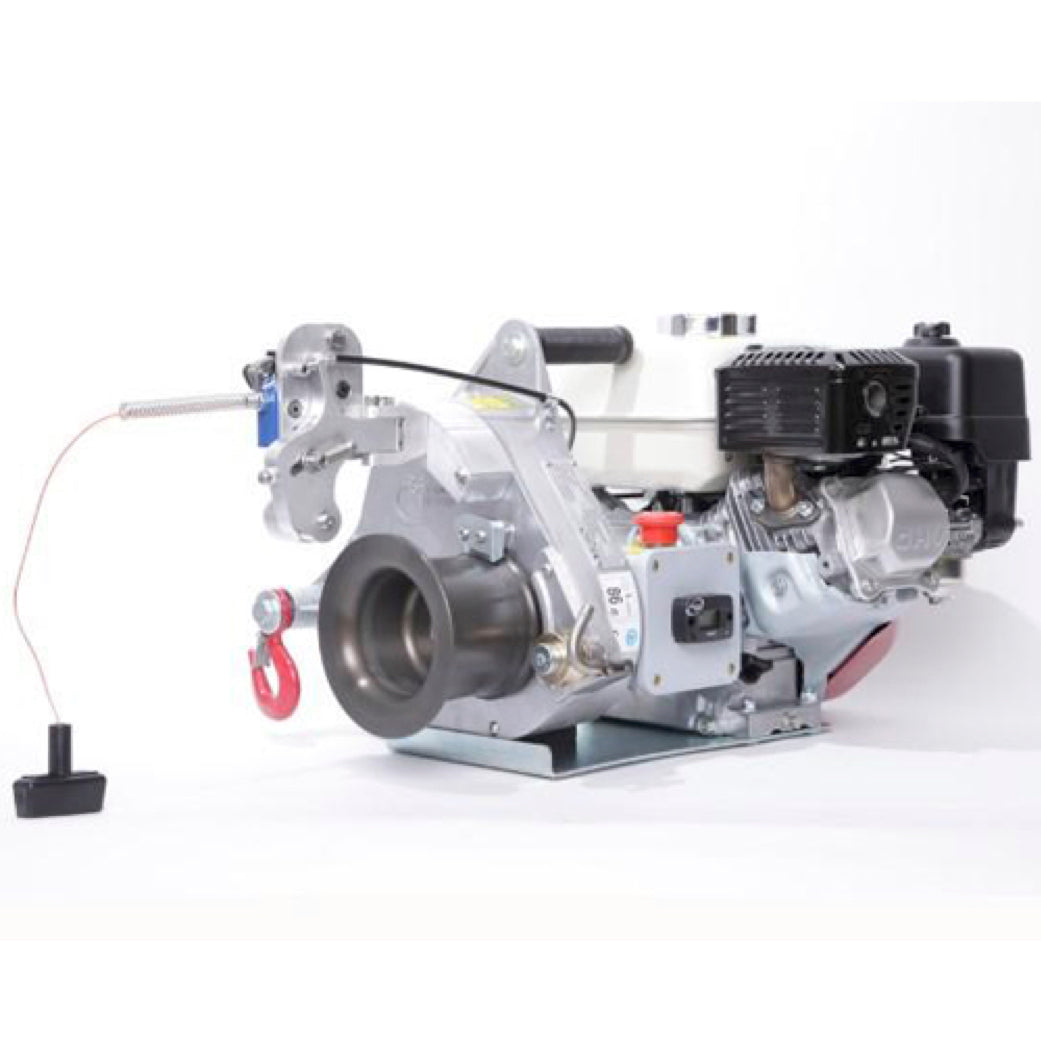

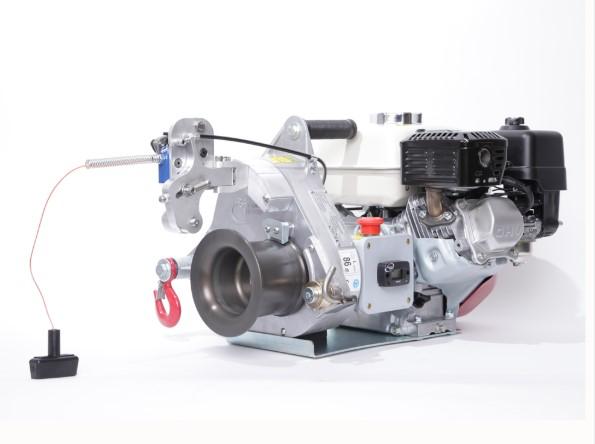

PCH2000 Petrol Winch Pull/Lift Version
For maximum lifting capacity!

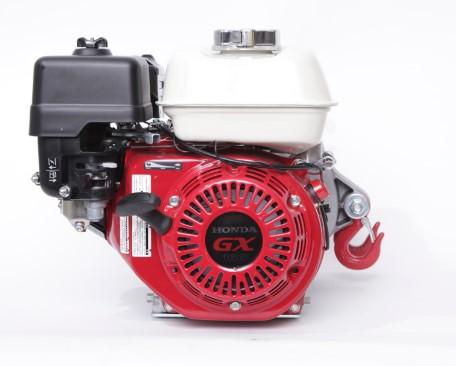

The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.
This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.
The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.
This system can be used to lift or lower a load.
A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
GTIN / EAN13: 690581001130
PCH2000 Petrol Winch Pull/Lift Version Ref 167-3-2
For maximum lifting capacity!
The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.
This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.
The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.
This system can be used to lift or lower a load.
A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
GTIN / EAN13: 690581006197
Spec

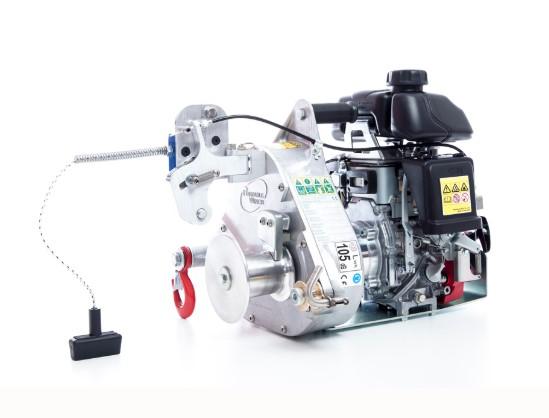

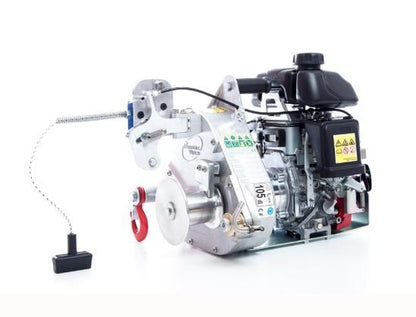

PCH1000 Petrol Winch Pull/Lift Version Ref: 167-3-1
| Manufacturer | PORTABLE WINCH |
|---|---|
| Max Pull Capacity | 775kg |
| Max Lifting Capacity | 250kg |
| Installed Capstan Size | 57mm (Optional 85mm Drum Available - Reduces Load Capacity) |
| Speed with Installed Capstan | 12 m/min |
| Rope Size | Min 12mm | Max 13mm | Ideal 12mm |
| Engine/Motor | Honda 4-stroke GXH-50 cc |
| Gear Ratio | 110:1 |
| Dry Weight | 19kg |
| GTIN / EAN13 | 690581001130 |
PCH2000 Petrol Winch Pull/Lift Version Ref: 167-3-2
| Manufacturer | PORTABLE WINCH |
|---|---|
| Max Pull Capacity | 1150kg |
| Max Lifting Capacity | 450kg |
| Installed Capstan Size | 108mm |
| Speed with Installed Capstan | 20 m/min |
| Rope Size (Diameter) | Min 12mm | Max 13mm | Ideal 12mm |
| Engine/Motor | Honda GX-160 cc |
| Gear Ratio | 53:1 |
| Dry Weight | 34.5kg |
| GTIN / EAN13 | 690581006197 |
