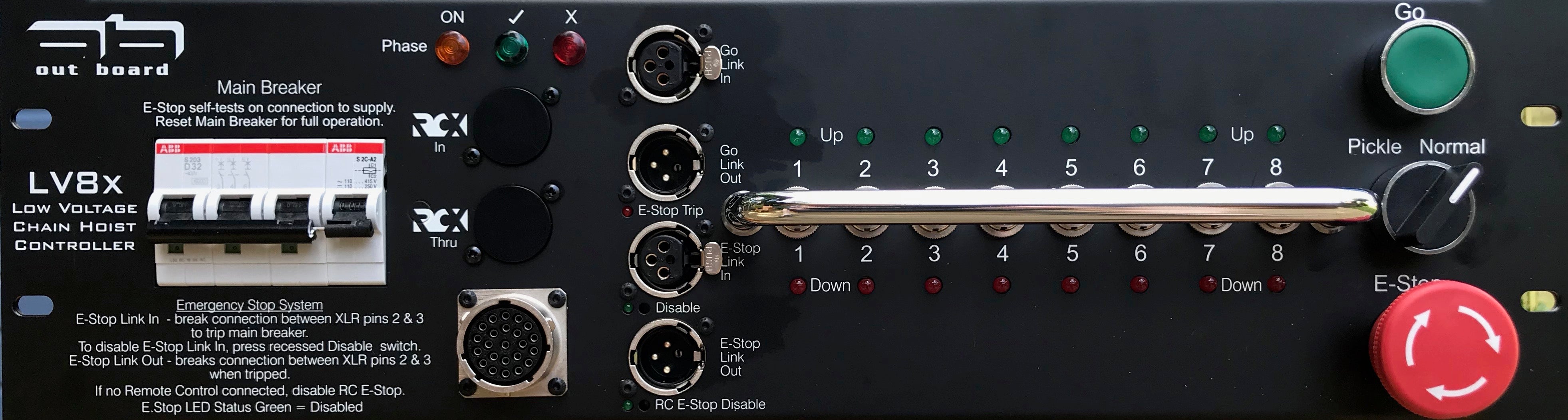

Out Board LV8x Low Voltage 8 Way Chain Hoist Controller with Remote & 10m Cable

The LV8x chain hoist controller operates eight low-voltage controlled chain-hoist motors in staging and rigging applications. It features heavy duty connectors and controls housed in a compact 3U 19" rack-mount steel chassis making it ideal for both touring and installations. The LV8x fully conforms to European EMC and LVD requirements.

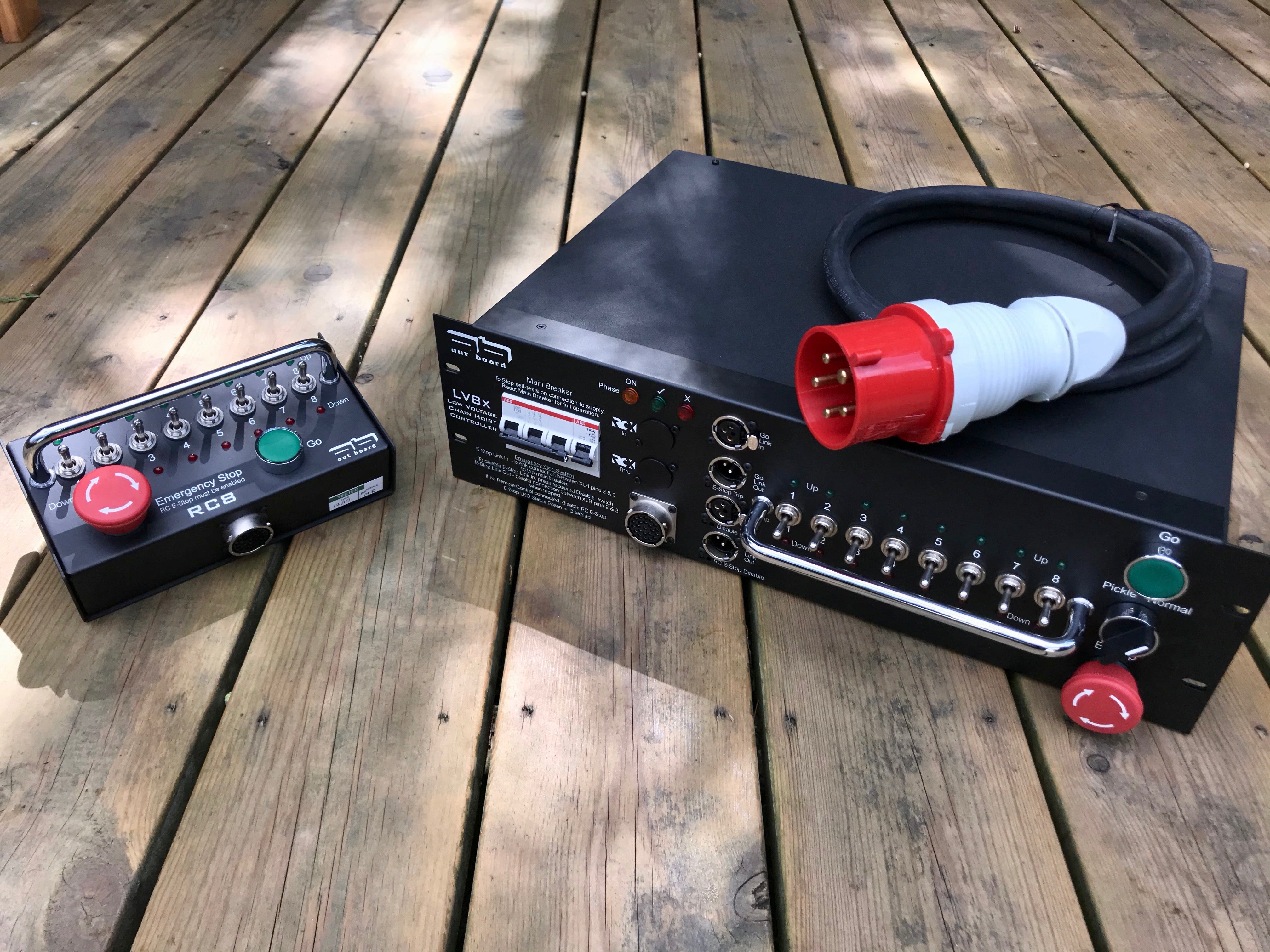

This 8 way LV kit (SKU 410-23-1) includes:

• 1 x 19" 8 Way LV8x Rack Mount Controller
• 1 x RC8 Handset
• 10m of RC8 Cable

The LV8x is part of range of compact and solid chain hoist controllers, ideally suited to both touring and installation. The LV8x is built in a fully serviceable rugged steel 3U rackmount chassis. Analogue remote control options include ergonomic RC8 handsets or Remote Go and E-Stop switches. Optional RCX SMART Remote interface for digital remote control.

• Eight channels of low-voltage control and 3-phase hoist power distro
• Selectable Normal multichannel mode or Pickle mode

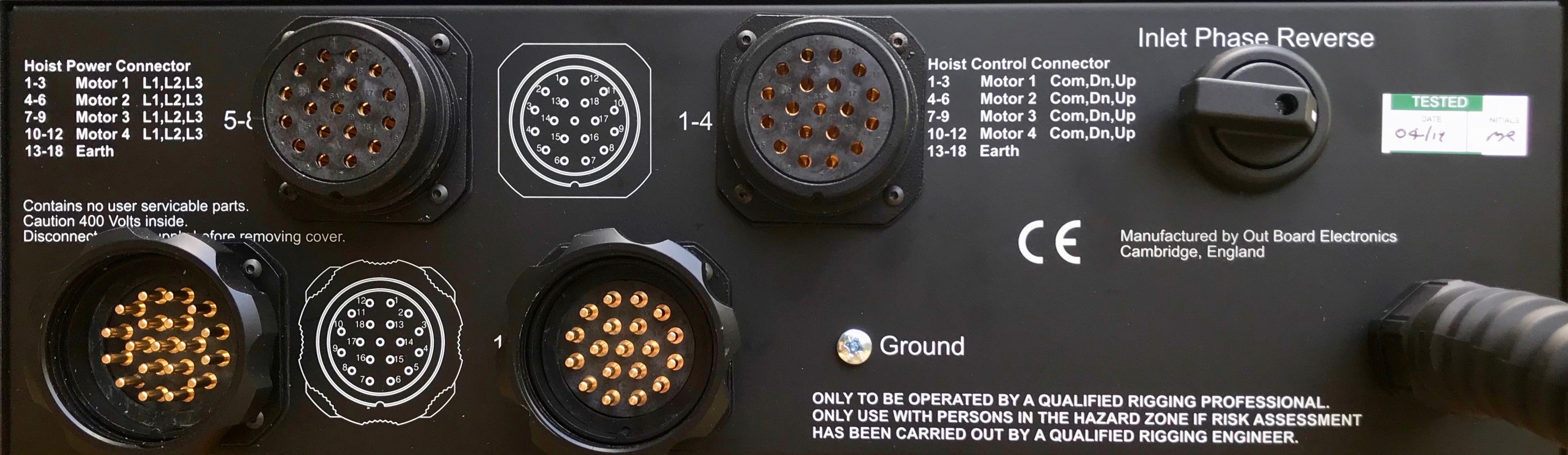

• Industry standard Ceep (Socapex-style) control/power connectors. Optional trussmount CeeForm Splitter Boxes
• Input voltage phase indicators and reversal switch
• This (our SKU 410-23-1) kit includes a compact and ergonomic RC8 handset for remote control, with built-in Emergency Stop and 10m of RC8 Cable to connect the handset to the 19" rack.

• Optional Extra Cost - Remote GO and E-Stop, linkable to multiple units
• Optional Extra Cost - RCX SMART Remote Ethercon digital interface
• Integral Emergency Stop button, linkable across multiple units. E-Stop circuit features power-up self-test function.
• Internal sub-assemblies designed for optimum serviceability
• Fully compliant with CE directives
