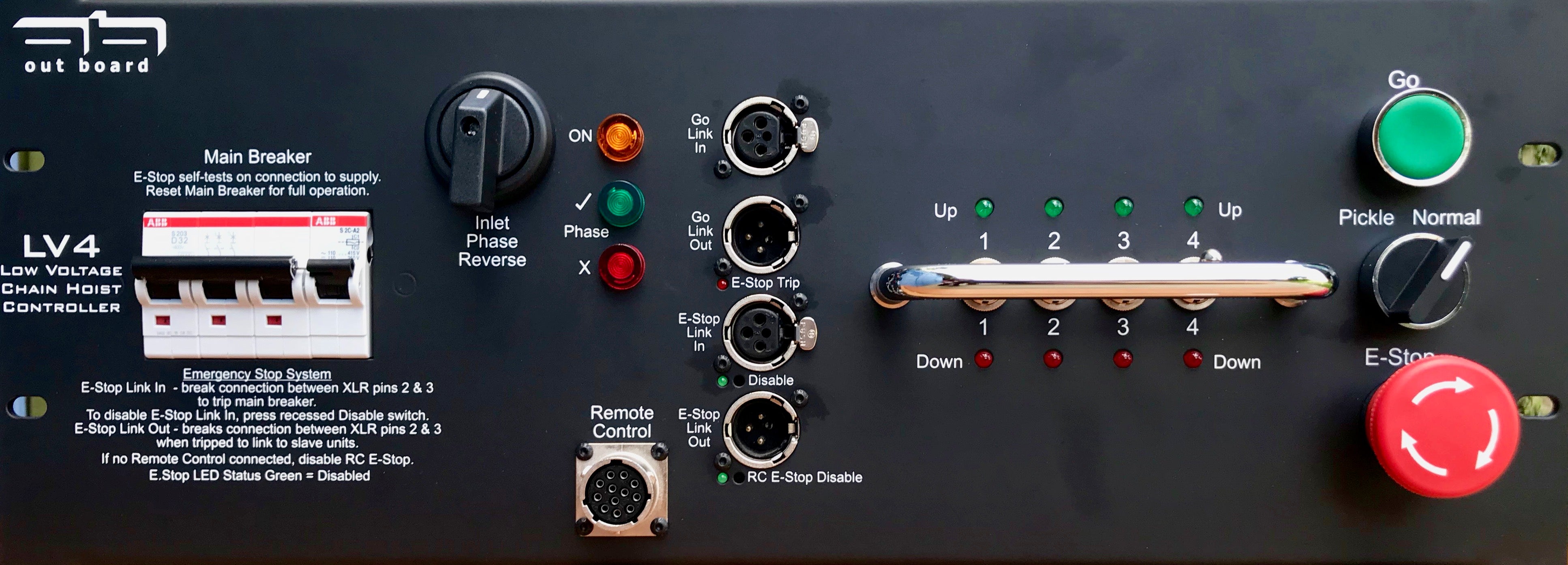

The LV4 chain hoist controller operates four low-voltage controlled chain-hoist motors in staging and rigging applications.  It features heavy duty connectors and controls housed in a compact 4U 19" rack-mount steel chassis making it ideal for both touring and installations. The LV4 fully conforms to European EMC and LVD requirements.

This 4 way LV kit (SKU 410-21-1) includes:

• 1 x 19" 4 Way LV4 Rack Mount Controller
• 1 x RC4 Handset
• 10m of RC 4 Cable

The LV4 is part of range of compact and solid chain hoist controllers, ideally suited to both touring and installation. The LV4 is built in a fully serviceable rugged steel 3U rackmount chassis. Remote control options include ergonomic RC4 handsets* or Remote Go and E-Stop switches.

• Four channels of low-voltage control and 3-phase hoist  power distro
• Selectable Normal multichannel mode or Pickle mode

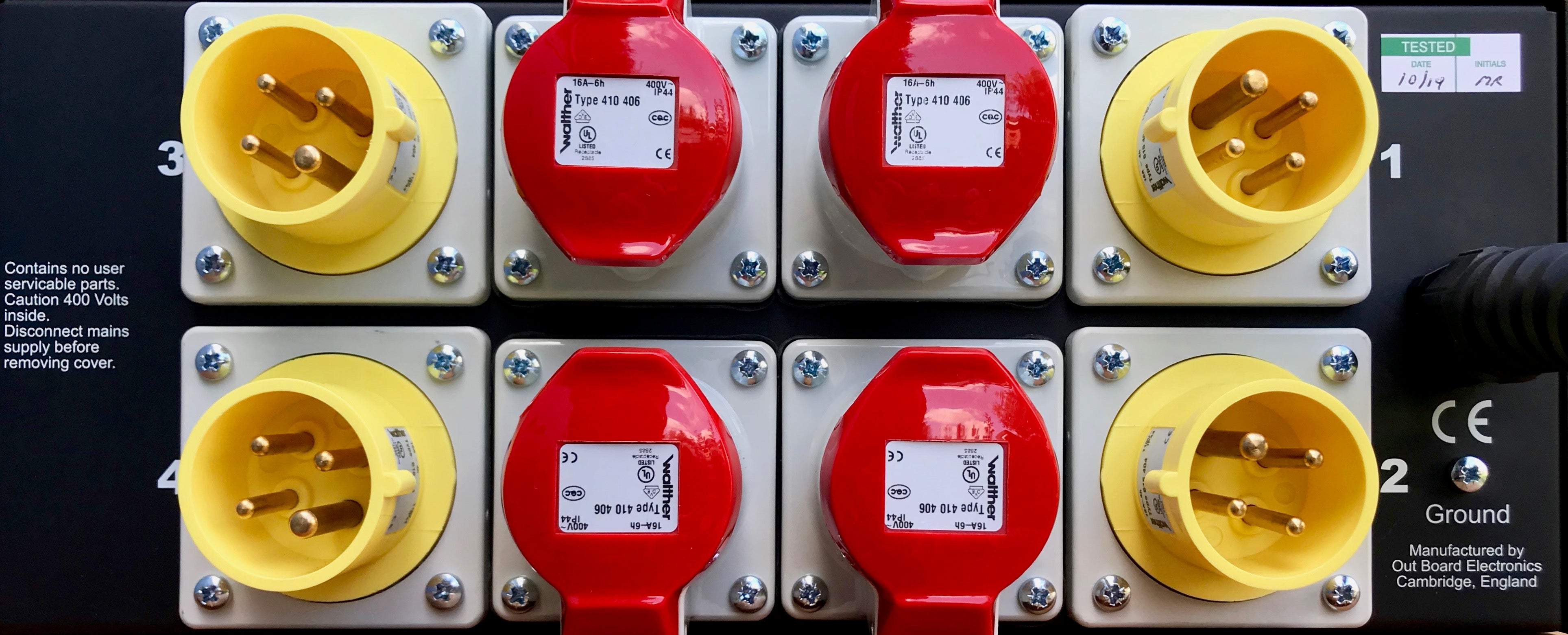

• Industry standard rear panel CeeForm outlet connectors
• Input voltage phase indicators and reversal switch
• * This Kit (our SKU 410-21-1) includes a compact and ergonomic RC4 handset for remote  control, with built-in Emergency Stop and 10m of RC4 Cable to connect the handset to the 19" rack.

• Optional Remote GO and E-Stop, linkable to multiple units
• Integral Emergency Stop button, linkable across multiple  units.  E-Stop circuit features power-up self-test function.
• Internal sub-assemblies designed for optimum serviceability
• Fully compliant with CE directives

Download - LV4_Controller_Operation_0321.pdf
