The LV12x chain hoist controller operates twelve low-voltage controlled chain-hoist motors in staging and rigging applications.  It features heavy duty connectors and controls housed in a compact 3U 19" rack-mount steel chassis making it ideal for both touring and installations. The LV12x fully conforms to European EMC and LVD requirements.

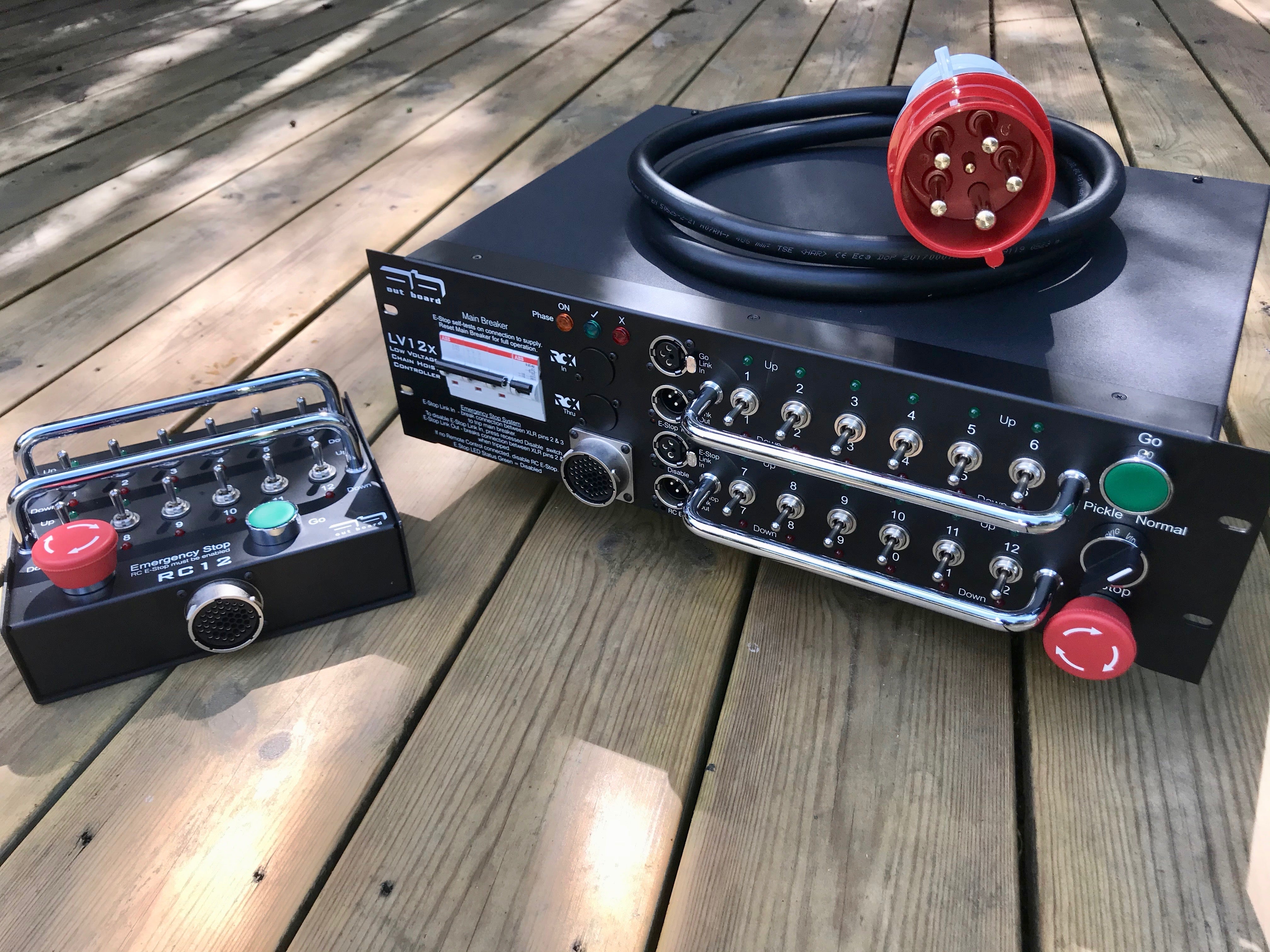

This 12 way LV kit (SKU 410-24-2) includes:

• 1 x 19" 12 Way LV12x Rack Mount Controller
• 1 x RC21 Handset
• 20m of RC12 Cable

The LV12x is part of range of compact and solid chain hoist controllers, ideally suited to both touring and installation. The LV12x is built in a fully serviceable rugged steel 3U rackmount chassis. Analogue remote control options include ergonomic RC12 handsets* or Remote Go and E-Stop switches. Optional RCX SMART Remote interface for digital remote control.

• Twelve channels of low-voltage control and 3-phase hoist  power distro
• Selectable Normal multichannel mode or Pickle mode
• Industry standard Ceep (Socapex-style) control/power   connectors.  Optional trussmount CeeForm Splitter Boxes
• Input voltage phase indicators and reversal switch
• *This (our SKU 410-24-2) kit includes a compact and ergonomic RC12 handset for remote  control, with built-in Emergency Stop and 20m of RC12 Cable to connect the handset to the 19" rack.

• Optional Extra Cost - Remote GO and E-Stop, linkable to multiple units
• Optional Extra Cost - RCX SMART Remote Ethercon digital interface
• Integral Emergency Stop button, linkable across multiple  units.  E-Stop circuit features power-up self-test function.
• Internal sub-assemblies designed for optimum serviceability
• Fully compliant with CE directives

Download - LV6x_Controller_Operation_1021.pdf
