ONYX Grade 80 Black Finish Eyebolt - OXEB
GT ONYX SKU: 286-1804-1
ONYX Grade 80 Black Finish Eyebolt - OXEB
Onyx Grade 80 Eyebolt – OXEB Grade 80 alloy steel, quenched and tempered. Matte black painted. DIN 580 according to size. -20°C up... Read More
GT ONYX SKU: 286-1804-1
Regular price
£2.84
Regular price
Sale
Sale price
TODAY'S PRICE
£2.84
Unit price
per
In stock
Tax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

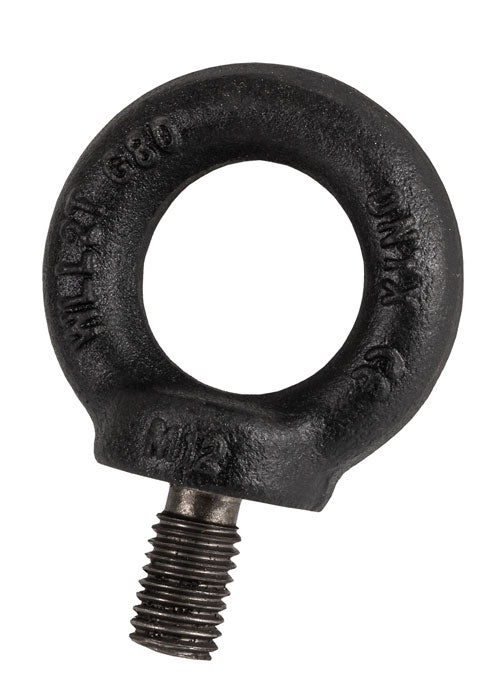

Onyx Grade 80 Eyebolt – OXEB
- Grade 80 alloy steel, quenched and tempered.
- Matte black painted.
- DIN 580 according to size.
- -20°C up to +200°C.
- M.B.L. equals 4 x W.L.L.
- Marked with ONYX, CE, material grade, size and traceability code.
- W.L.L. is based upon in line lifting only (see WLL chart for angles)
- Supplied with Declaration of Conformity

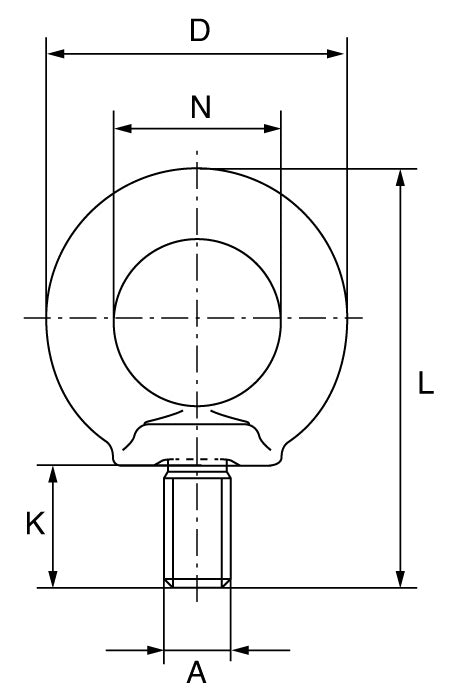

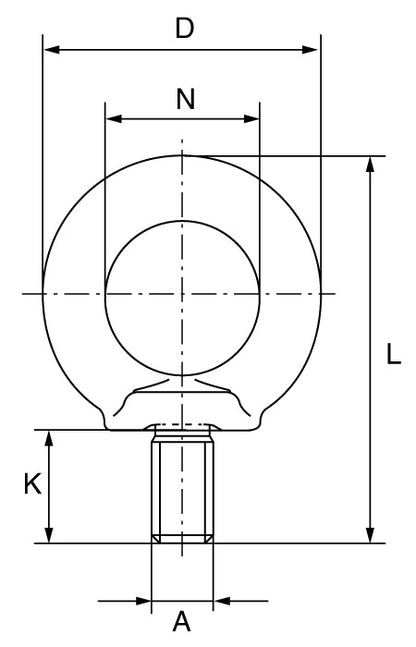

Dimensions
| SKU | W.L.L. (t) | A(mm) | D(mm) | K(mm) |
L(mm) |
N(mm) | Weight(kgs) |
| 286-1804-1 | 0.8 | 8 | 36 | 15 | 51 | 20 | 0.06 |
| 286-1804-2 | 1 | 10 | 45 | 18 | 63 | 25 | 0.11 |
| 286-1804-3 | 2 | 12 | 54 | 22 | 75 | 30 | 0.18 |
| 286-1804-4 | 4 | 16 | 63 | 28 | 90 | 35 | 0.29 |
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

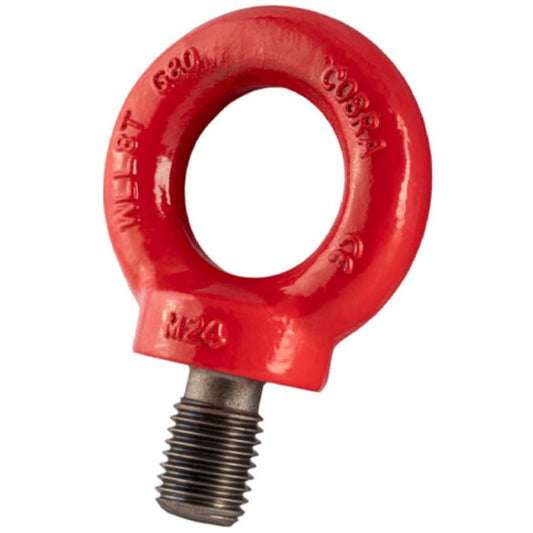

GT Cobra Grade 80 Eyebolt
