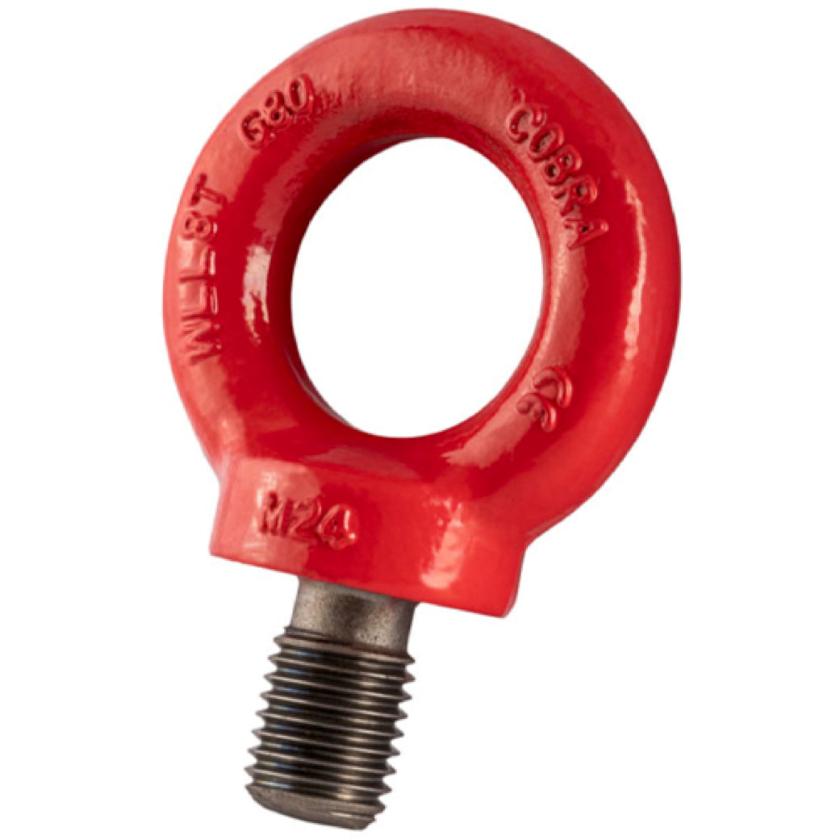

GT Cobra Grade 80 Eyebolt

£1.46

SKU :286-601-1

Diameter
W.L.L.
GT Cobra Grade 80 Eyebolt - G80EB
  • Alloy steel.
  • Red painted finish.
  • Sizes based generally on DIN 580 eyebolts.
  • Minimum breaking load is 4 times the W.L.L.
  • W.L.L. is based upon in line lifting only.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • For further clarification on reductions for non-axial loading, please consult GT Lifting.
  • Certification available DoC



      Spec

      SKU Product Code Part No. W.L.L. A D K L N Weight
      t mm mm mm mm mm kgs
      286-601-1 G80EB6 SLR054-M6 0.4 6 28 13 42 16 0.05
      286-601-2 G80EB8 SLR054-M8 0.8 8 36 15 51 20 0.06
      286-601-3 G80EB10 SLR054-M10 1 10 45 18 63 25 0.11
      286-601-4 G80EB12 SLR054-M12 2 12 54 22 75 30 0.18
      286-601-5 G80EB16 SLR054-M16 4 16 63 28 88 35 0.28
      286-601-6 G80EB20 SLR054-M20 6 20 72 30 101 40 0.45
      286-601-7 G80EB24 SLR054-M24 8 24 90 38 128 50 0.87
      286-601-8 G80EB30 SLR054-M30 12 30 108 45 154 60 1.66
      286-601-9 G80EB36 SLR054-M36 16 36 126 55 183 70 2.65
      286-601-10 G80EB42 SLR054-M42 24 42 144 65 212 80 4.03
      286-601-11 G80EB48 SLR054-M48 32 48 166 70 238 90 6.38
