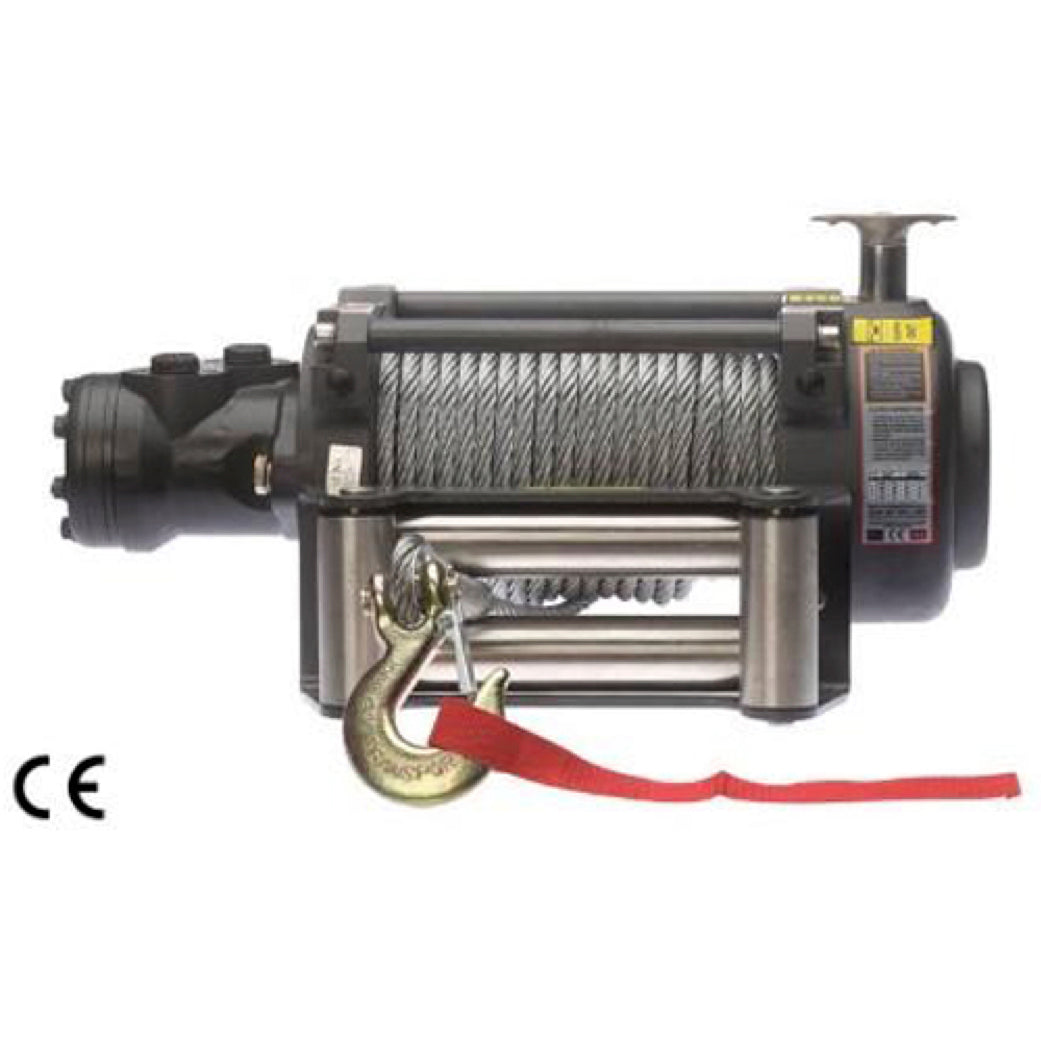

NH 10000 Hydraulic Winch 10000 lbs (4536 kg)

Name: NH 10000 Hydraulic Winch 10000 lbs (4536 kg)
Brand: Warrior Winches
Price: 1070.99 GBP
Availability: OutOfStock

NH 10000 Hydraulic Winch 10000 lbs (4536 kg)

SKU: 161-38-1

NH 10000 Hydraulic Winch 10000 lbs (4536 kg)

SKU: 161-38-1

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £500

- View options

Click & Collect from BL9 6EY

- Collect from our warehouse

View full details

Description

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.

Ref: 161-38-1

Features

Patented Heavy Duty Gearing
Integral, Automatic Failsafe Brake
Spring Engaged Manual Freespool
Stainless Steel Fairlead and Fittings
Rugged and compact for Long Life

Accessories included

Spec

Rated Line Pull	10000 lbs (4536 kg)
Motor	Hydraulic Dis 65 ml/r
Gearing	25.5:1
Braking Action	Auto in the drum
Drum Size - Dia x L	72 x 219mm (2.83 x 8.62 in)
Cable - Dia x L	10.2mm x 25.5m (0.4 in x 84 ft)
Dimensions	519 x 206 x 246mm (20.43 x 8.1 x 9.7 in)
Mounting Pattern	254 x 114.3 mm (10 x 4.5 in)
Weight kg	53 kg (117 lbs)
Max Flow L/min	45
Max Pressure Mpa	12.5
Clutch	Pull & Turn
Certification	CE Certified

Layer of Rope/Cable	Line Pull: lbs(kgs)	Rope on drum ft(m)
1	10000 (4536)	16.4 (5.0)
2	8012 (3634)	37.2 (11.3)
3	6683 (3031)	60.9 (18.6)
4	5732 (2600)	83.7 (25.5)

Line Pull lbs (kgs)	Line Speed ft/min (m/min)	Flow L/min (G/min)	Pressure Mpa
0	2.3 (0.7)	5	2.0
3000 (1361)	4.6 (1.4)	10	4.5
6000 (2722)	8.9 (2.7)	20	6.8
9000 (4082)	15.1 (4.6)	35	9.0
10000 (4536)	17.4 (5.3)	40	12.5

Downloads

Warrior NH 10000 Winch User Manual

Warrior NH 10000 Technical Diagram

Warrior NH Series Brochure
