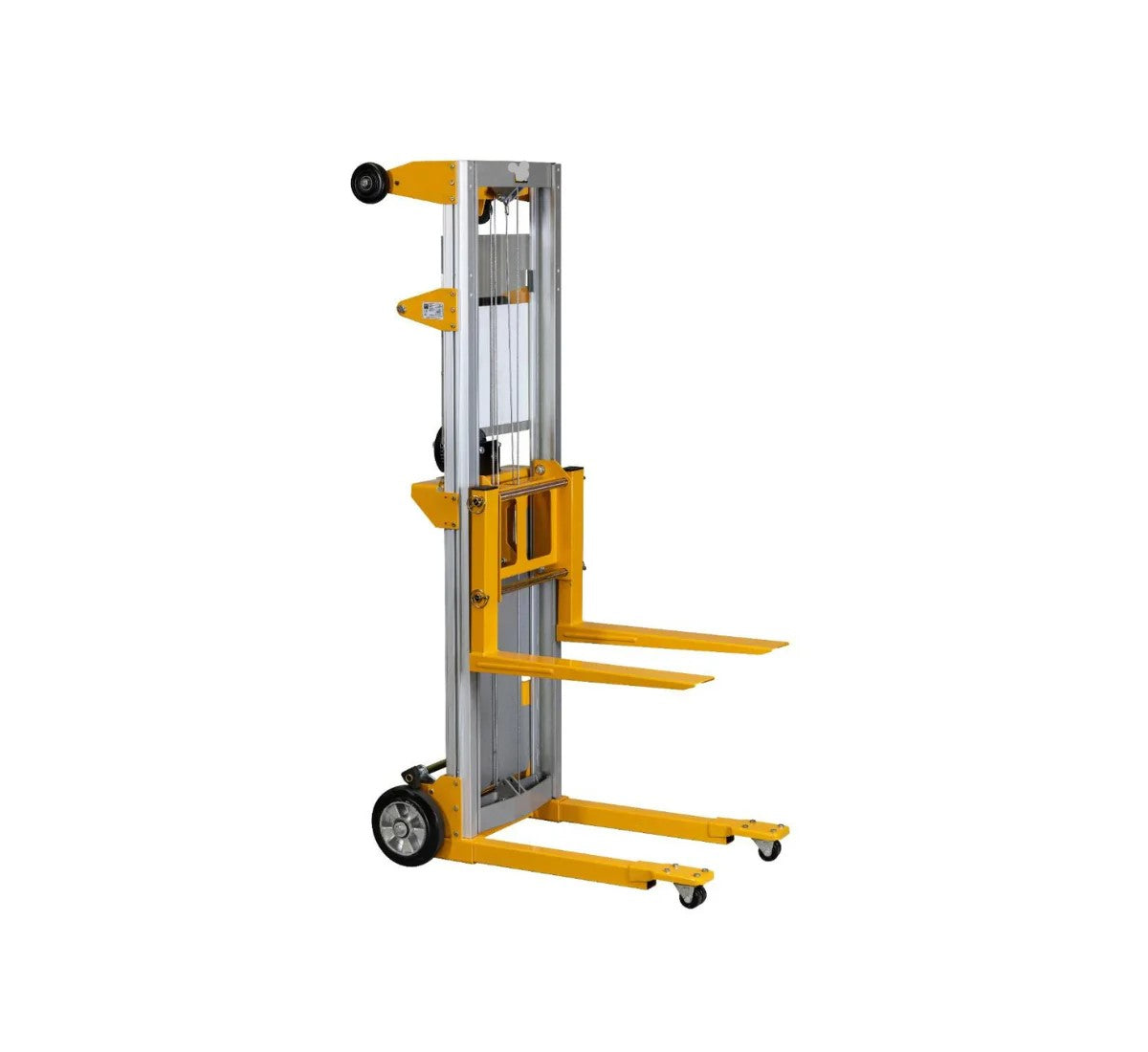

Lightweight Aluminium Hand Stacker Truck - 181kg
EPD SKU: 403-17-1

Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
When seeking a lightweight hand stacker versatility and innovation is exactly what we're looking for, with the 403-17-1 it's exactly what you get! Thanks to an innovative lightweight aluminium design the foldable stacker boasts a net weight of just 60kg whilst a grand lifting height of 2.5m.
Lifting up to 181kg on the forks is made easy thanks to a cable type wire rope winch system, whilst the stacker is protected from rolling away with built-in brakes on the larger rear wheels. The stacker conveniently doubles up as a trolley by utilising the swivelling wheels fitted to the top of the mast.
Key Features
- Lightweight aluminium design (60kg net weight)
- 181kg lifting capacity
- 2.5m lifting height

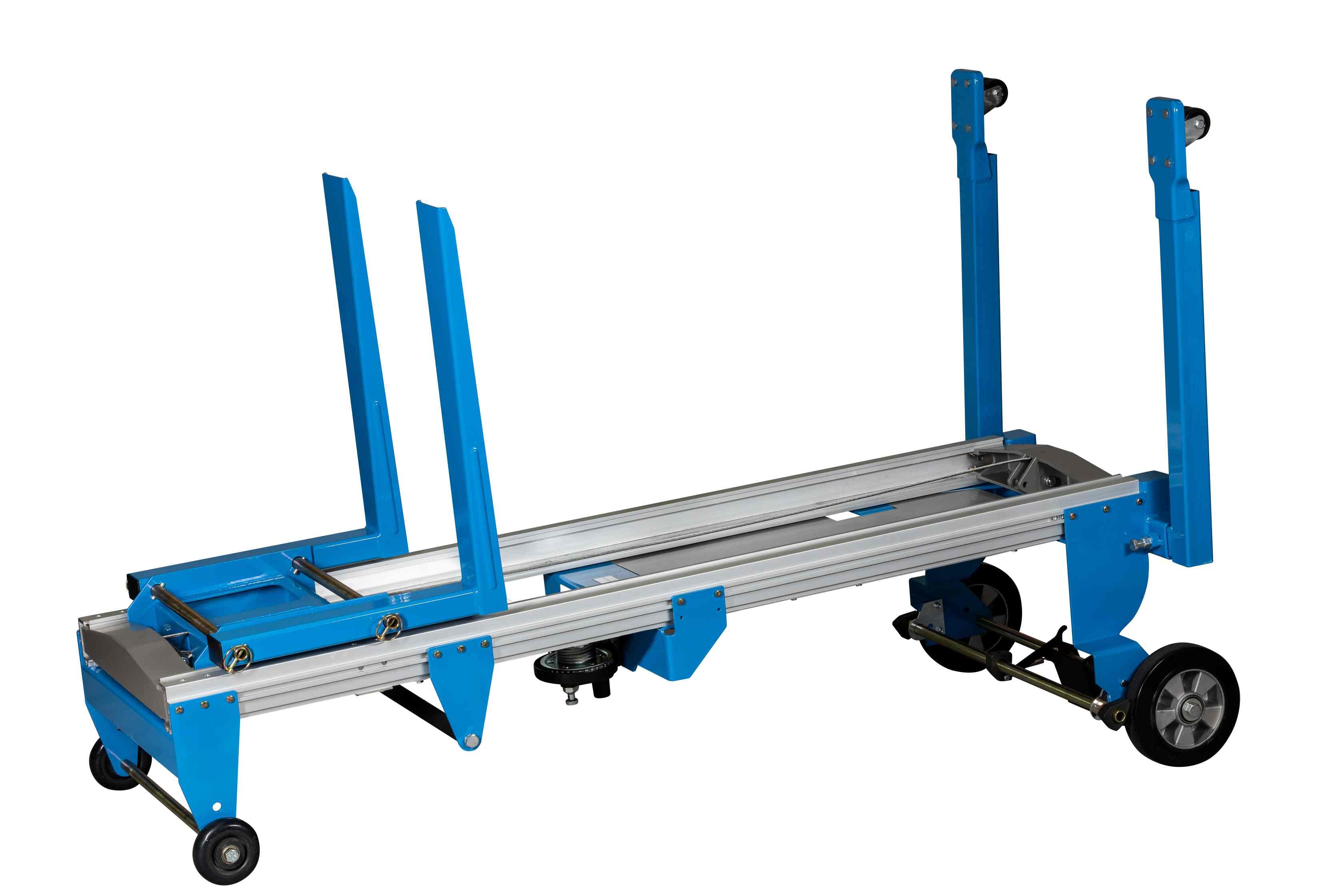

- Can be used as a trolley
- conforms to EN1757-1
Specification
| SKU | 403-17-1 |
|---|---|
| Capacity | 181kg |
| Load Centre | 254mm |
| Max. Fork Height (2 Stage) | 2500mm |
| Mast Height | 1805mm |
| Total Depth (Front to Back) | 1080mm |
| Min. LIfting Forks Height | 90mm |
| Base Legs Max. Width | 630mm |
| Fork Length | 570mm |
| Net Weight | 60kg |
