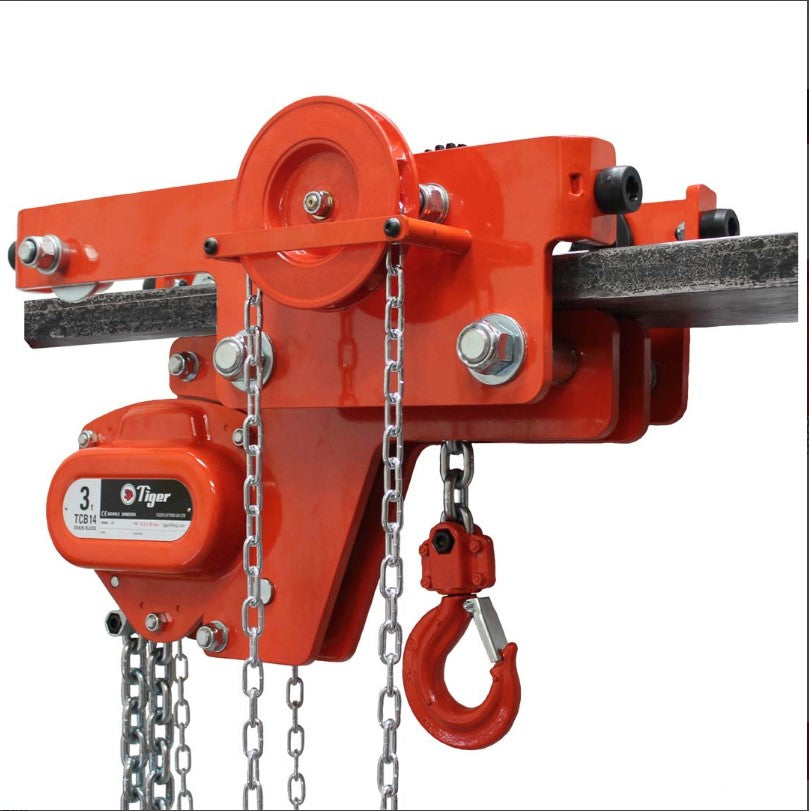

LHCG Low Headroom Combined Geared Block & Trolley. 3.0t. 180-310mm


SKU :249-6-3

Height of Lift

Main Features:

  • Very low headroom
  • Range from 1.0t to 10.0t
  • Ideal for locations where headroom is limited
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Can be chained to any height of lift to meet your exact requirements
  • Chain carrier available
  • Corrosion or spark resistant versions available
  • Available with load limiter
  • Available with beam locking device
  • These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.


    Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

    Standard geared trolley hand chain length - 2.5m. We can change the length to suit your requirements.

    Standard height of lift (HOL) of chain block - 3m. We can change this to suit your requirements.

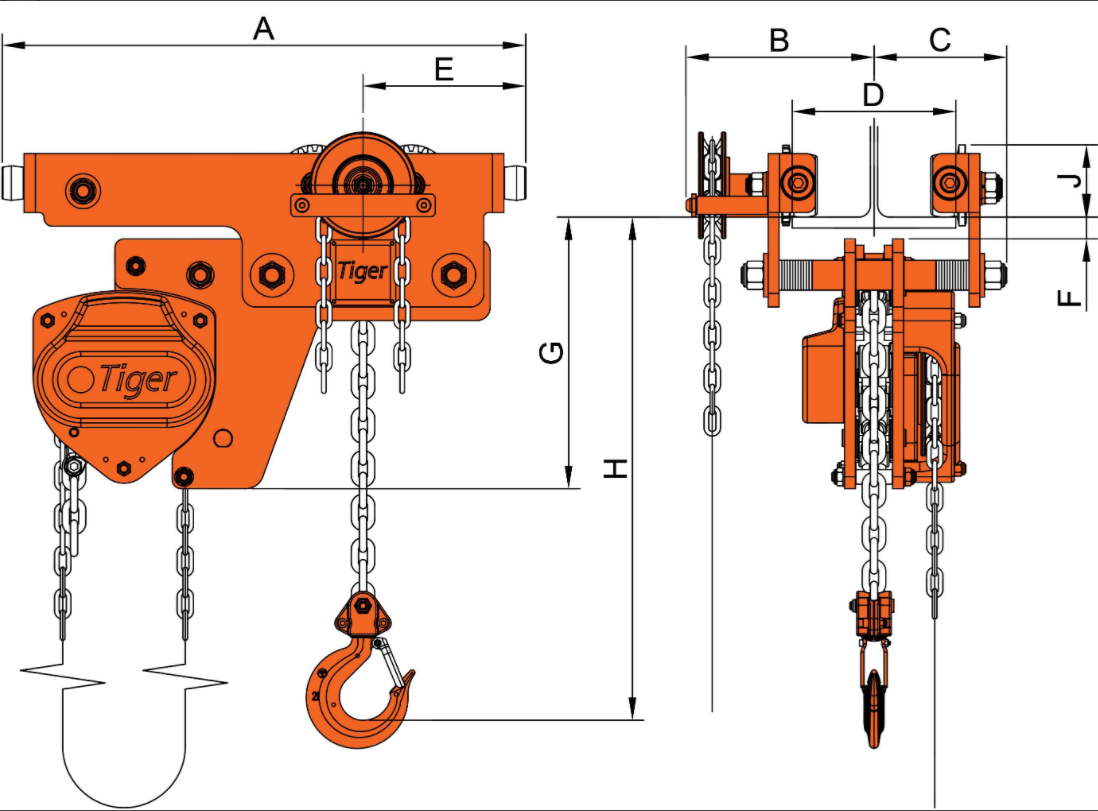

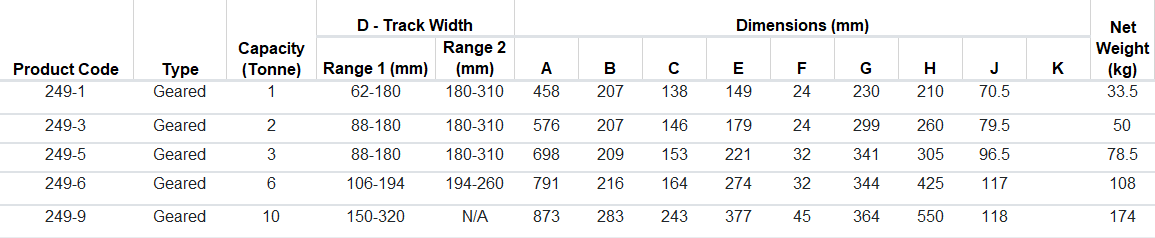

    In the table below on Spec:

    • D is the standard track width range. Please contact us for track widths outside of this range.
    • F is the maximum beam flange thickness..
