LHCG Low Headroom Combined Geared Block & Trolley. 1.0t. 180-310mm
- Very low headroom
- Range from 1.0t to 10.0t
- Ideal for locations where headroom is limited
- Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
- Can be chained to any height of lift to meet your exact requirements
- Chain carrier available
- Corrosion or spark resistant versions available
- Available with load limiter
- Available with beam locking device
- These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Standard geared trolley hand chain length - 2.5m. We can change the length to suit your requirements.
Standard height of lift (HOL) of chain block - 3m. We can change this to suit your requirements.

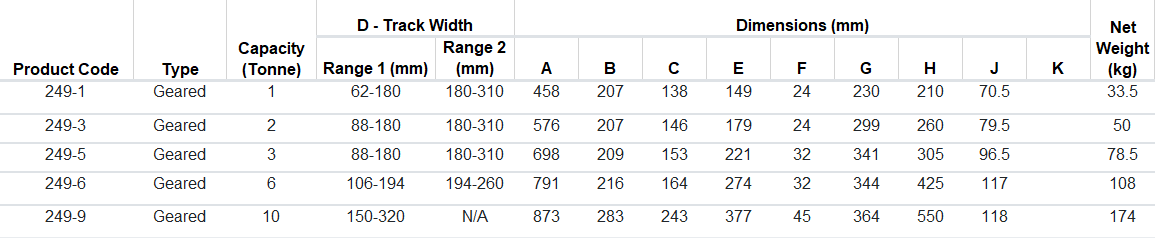

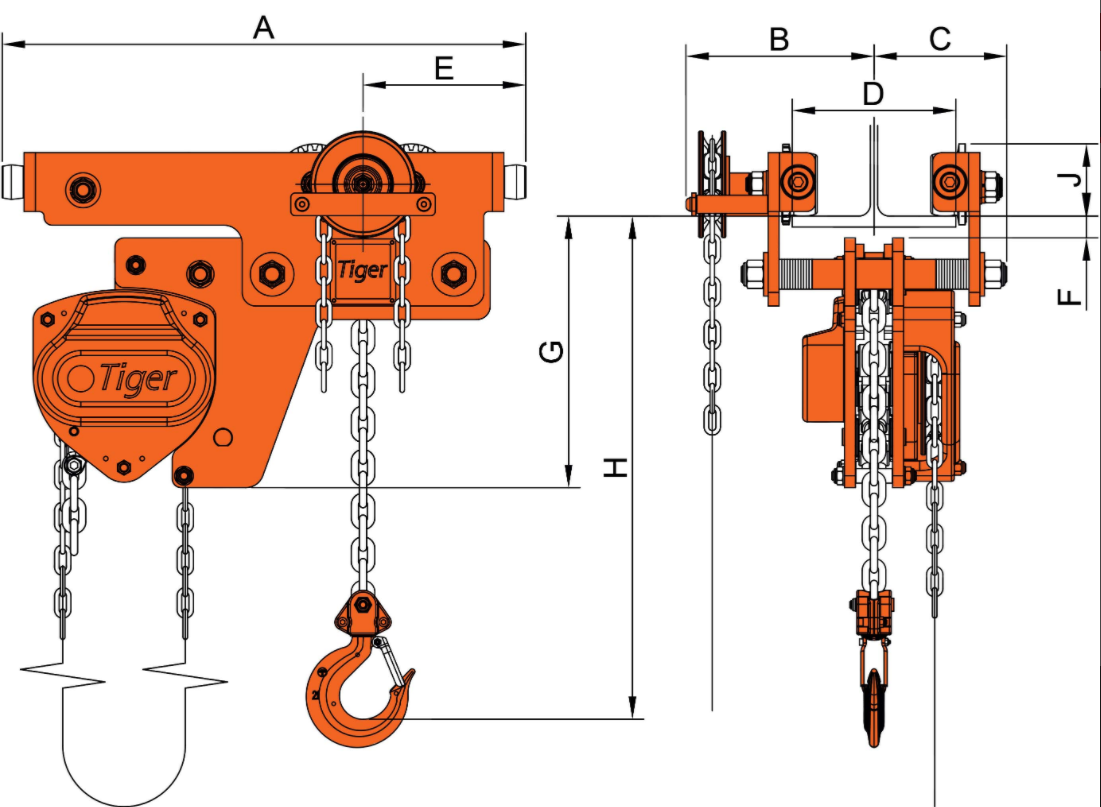

In the table below on Spec:
- D is the standard track width range. Please contact us for track widths outside of this range.
- F is the maximum beam flange thickness..
