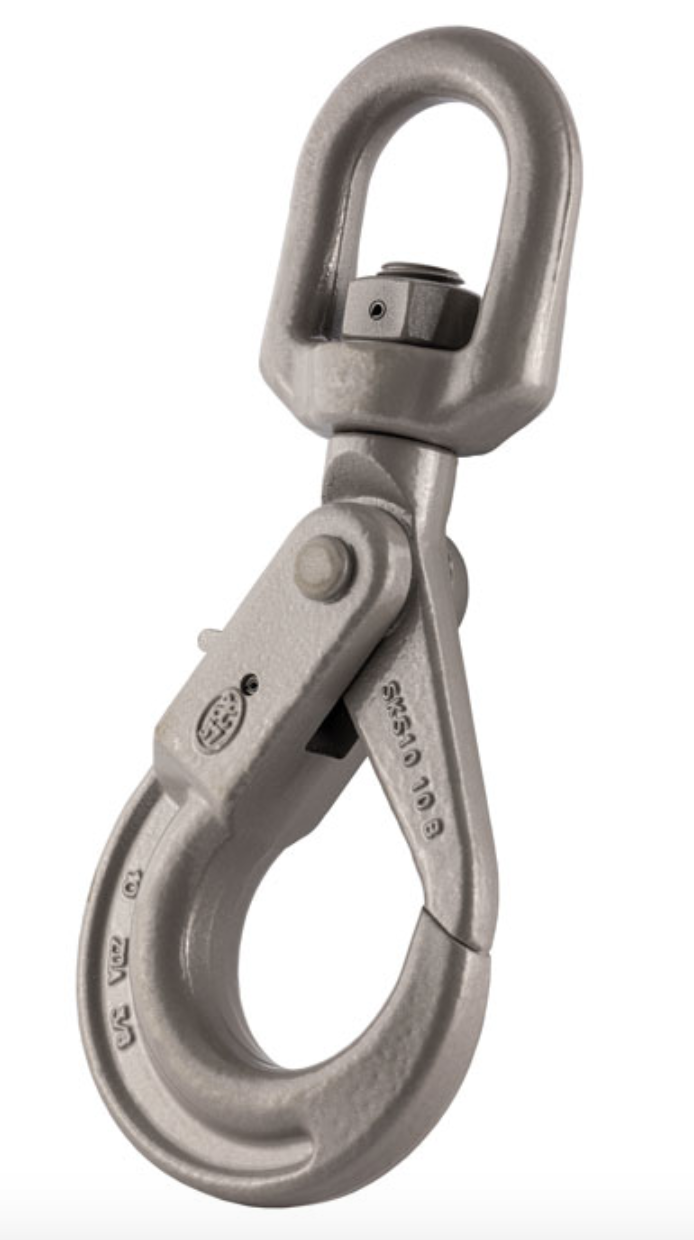

KITO - Grade 10 Swivel Self Locking Hook to BS-EN 1677-4
Skip to product information
1 of 2

KITO Weissenfels

KITO - Grade 10 Swivel Self Locking Hook to BS-EN 1677-4

KITO - Grade 10 Swivel Self Locking Hook to BS-EN 1677-4

SKU: 286-229-1

Read More
Regular price £78.84
Regular price RRP Sale price TODAY'S PRICE £78.84

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Grade 10 Swivel Self Locking Hook
  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Large swivel eye makes assembly easier.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity

            Spec

            SKU
            Part No. Chain Dia D E F G H O R
            mm mm mm mm mm mm mm mm
            286-229-1
            SKS6 6 35 13 35 16 20.5 28 160
            286-229-2
            SKS7-8 7/8 43.5 13 35 20 26 34 181
            286-229-3
            SKS10 10 56 16 42 24.5 30 45 218
            286-229-4
            SKS13 13 69 20 49 34.5 40 51.5 269
            286-229-5
            SKS16 16 80 24 60 35.5 50 60 319



            Technical Data

            SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
            mm t kN kN kgs
            286-229-1 6 1.4 35.3 56.5 0.8
            286-229-2 7/8 2.5 62.8 100 1.1
            286-229-3 10 4 98.2 157 2
            286-229-4 13 6.7 166 265 4
            286-229-5 16 10 251 402 7.3
