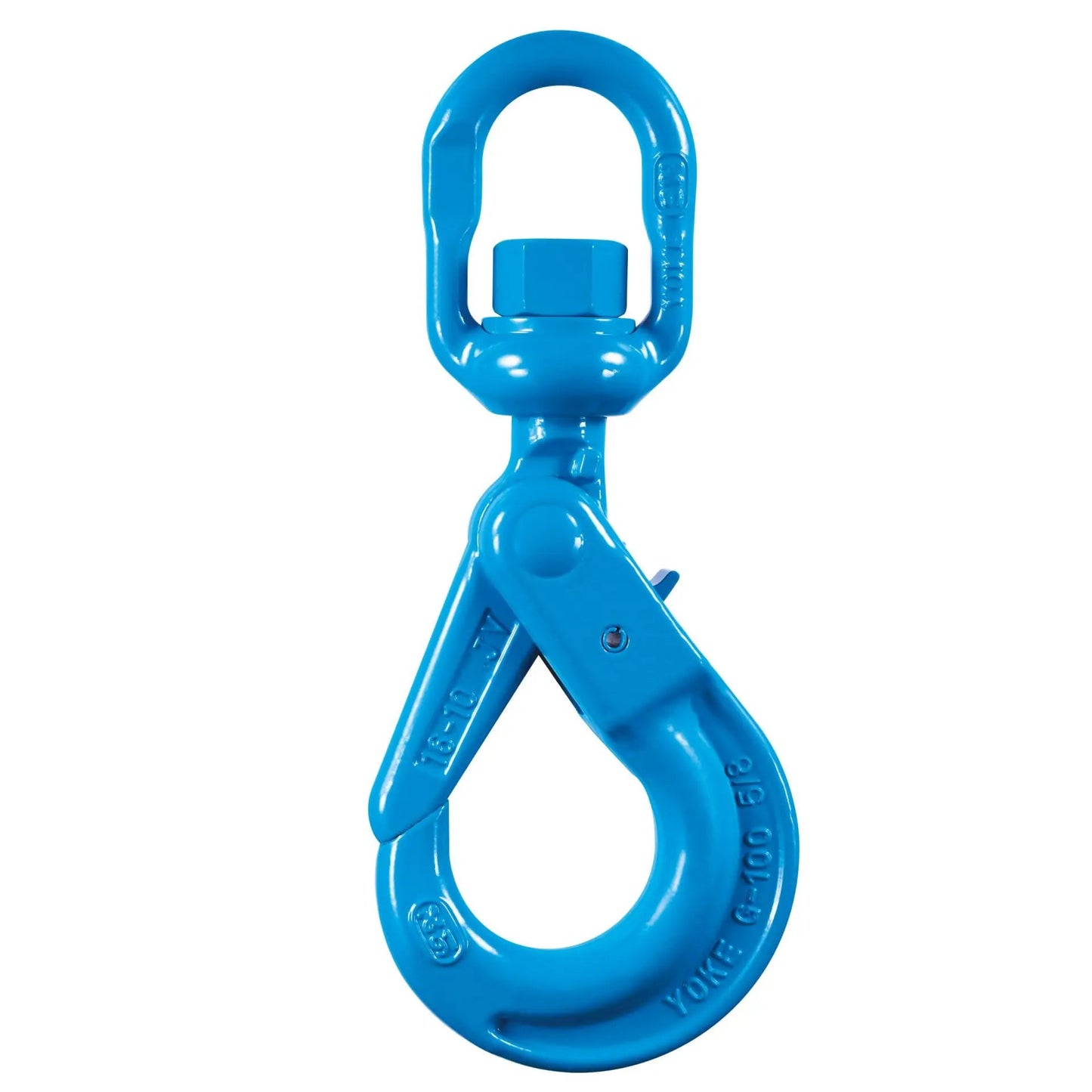

YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
SKU: 276-61-2
Dimensions, Tolerances & Images
This information is for marketing purposes only. The details contained herein is presented as general information and no representation or warranty is expressly or impliedly given as to its accuracy, completeness or correctness. It does not constitute part of a legal offer or contract.
For technical specifications, please contact Orplex Limited.
YOKE
YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
SKU: 276-61-2
Read MoreIn stock
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description
Description
YOKE X-27N Grade 100 Swivel Self Locking Ball Bearing Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
Spec
| SKU | Capacity (t) | For Grade 100 Chain (mm) | Weight (kg) |
| 276-61-1 | 1.4 | 6 | 0.7 |
| 276-61-2 | 2.5 | 7, 8 | 1.2 |
| 276-61-3 | 4 | 10 | 2 |
| 276-61-4 | 6.7 | 13 | 4.1 |
| 276-61-5 | 10 | 16 | 7.2 |
| 276-61-6 | 16 | 20 | 13 |
