DESCRIPTION

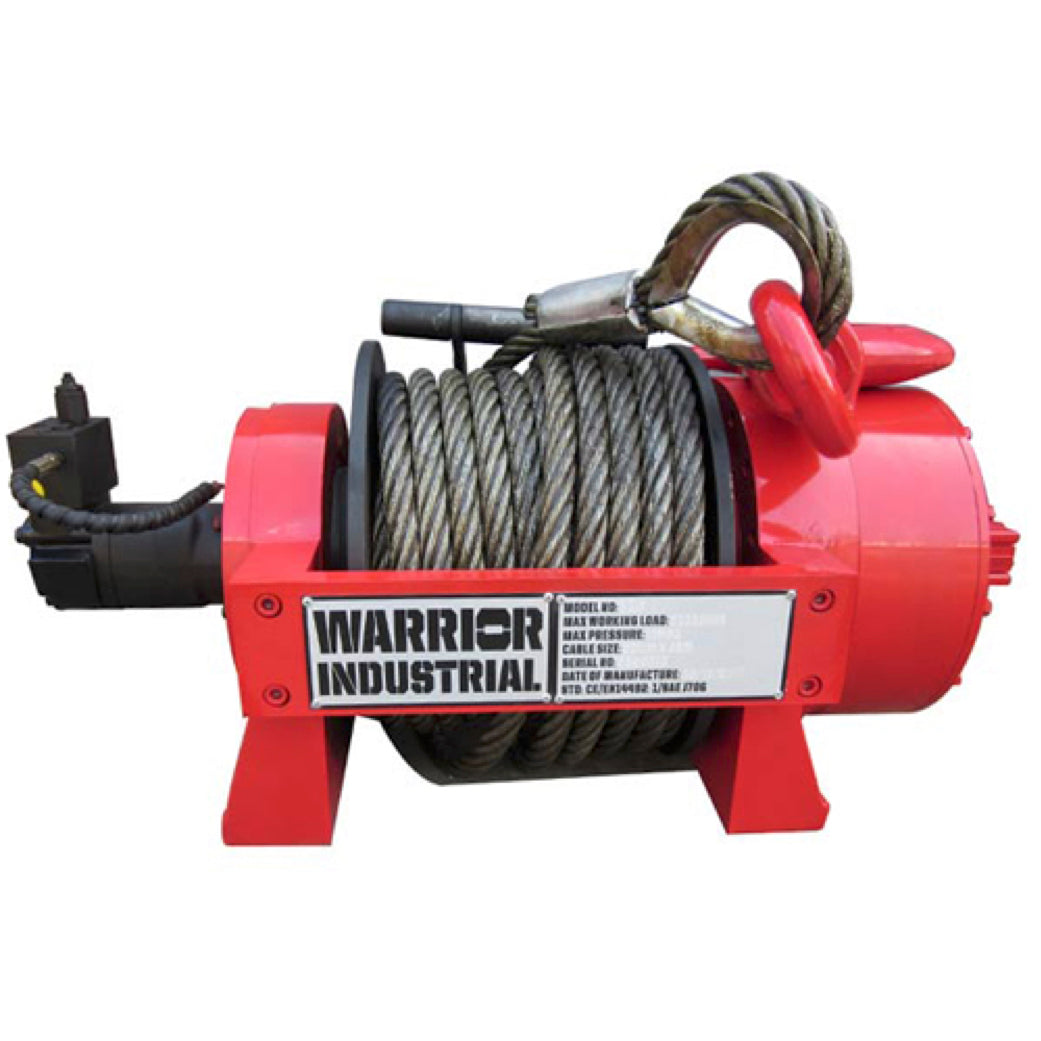

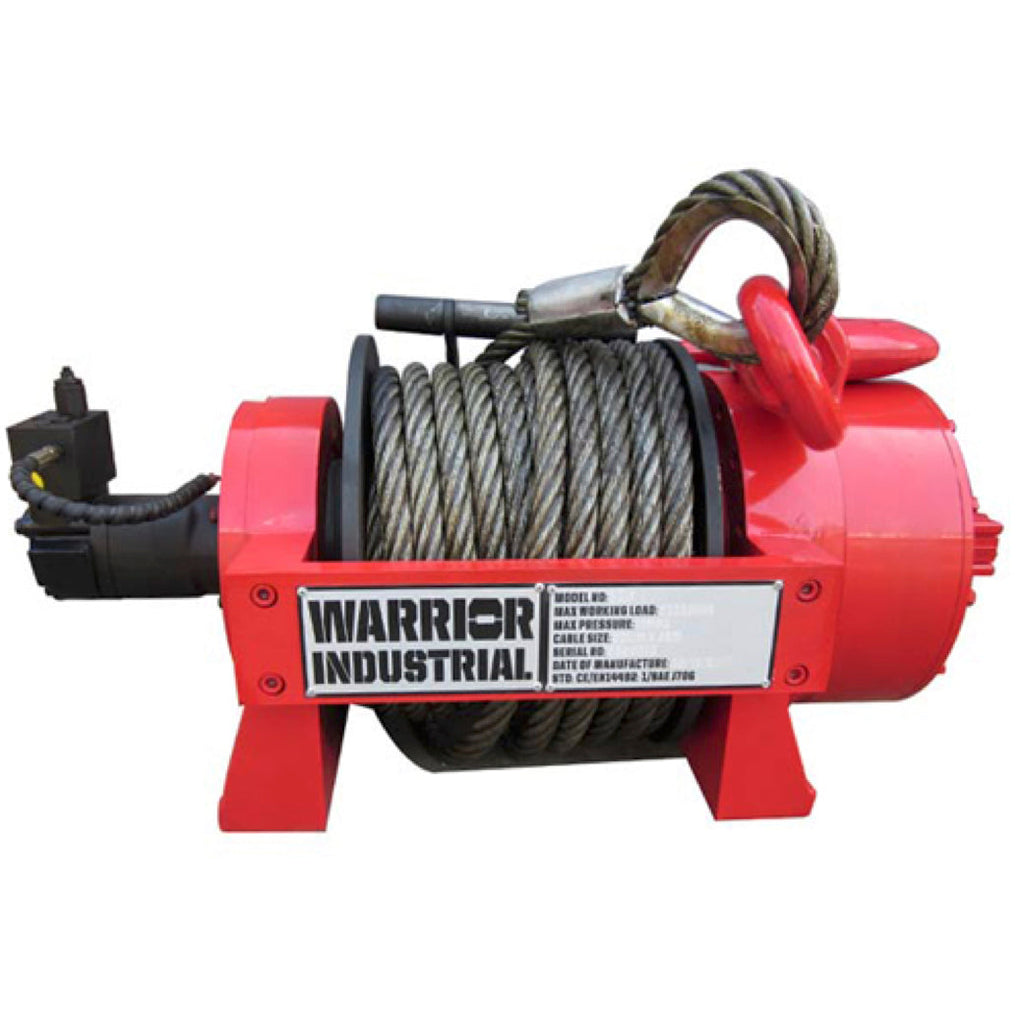

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard
Outstanding Features
- Full Float Heavy Duty Planetary Gearing
- Multi Disc Friction Brake
- High Torque Industrial Motor
- Air and Manual Clutch Operation
- Heavy Duty Rope Tensioner as Standard
- Minimum 10:1 Rope/Drum Ratio
- Balance Valve as Standard
ACCESSORIES INCLUDED
Spec
| Rated Line Pull | 55000 lbs (25 000 kg) |
|---|---|
| Gearing | 53:1 |
| Braking Action | Auto Hydraulic |
| Drum Size - Dia x L | 280 x 360 mm (11 x 14.1 in) |
| Cable - Dia x L | 30mm x 50m (1.18 in x 164 ft) |
| Dimensions | 1301 x 770 x 545mm (51.2 x 30.3 x 21.4 in) |
| Mounting Pattern | 610 x 170/310mm (24 x 6.7/12.2 in) |
| Weight kg | 580kg (1278 lb) |
| Max Flow L/min | 120 L/min |
| Max Pressure Mpa | 180 Bar |
| Clutch | Air Clutch |
| Certification | CE Certified |
