DESCRIPTION

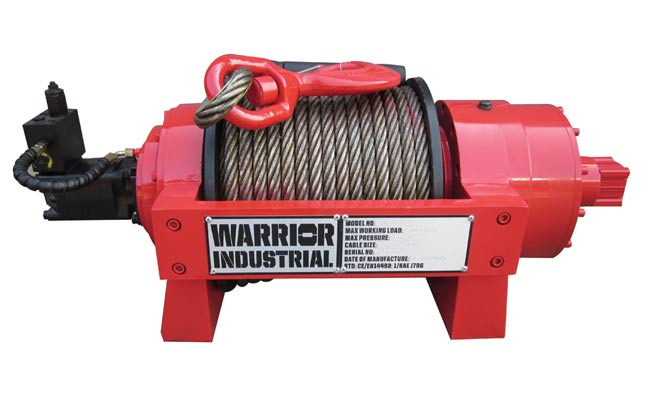

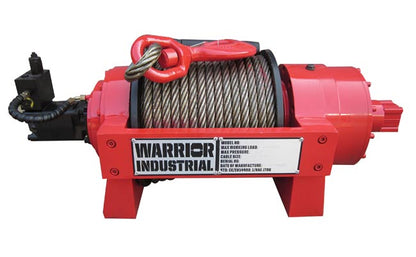

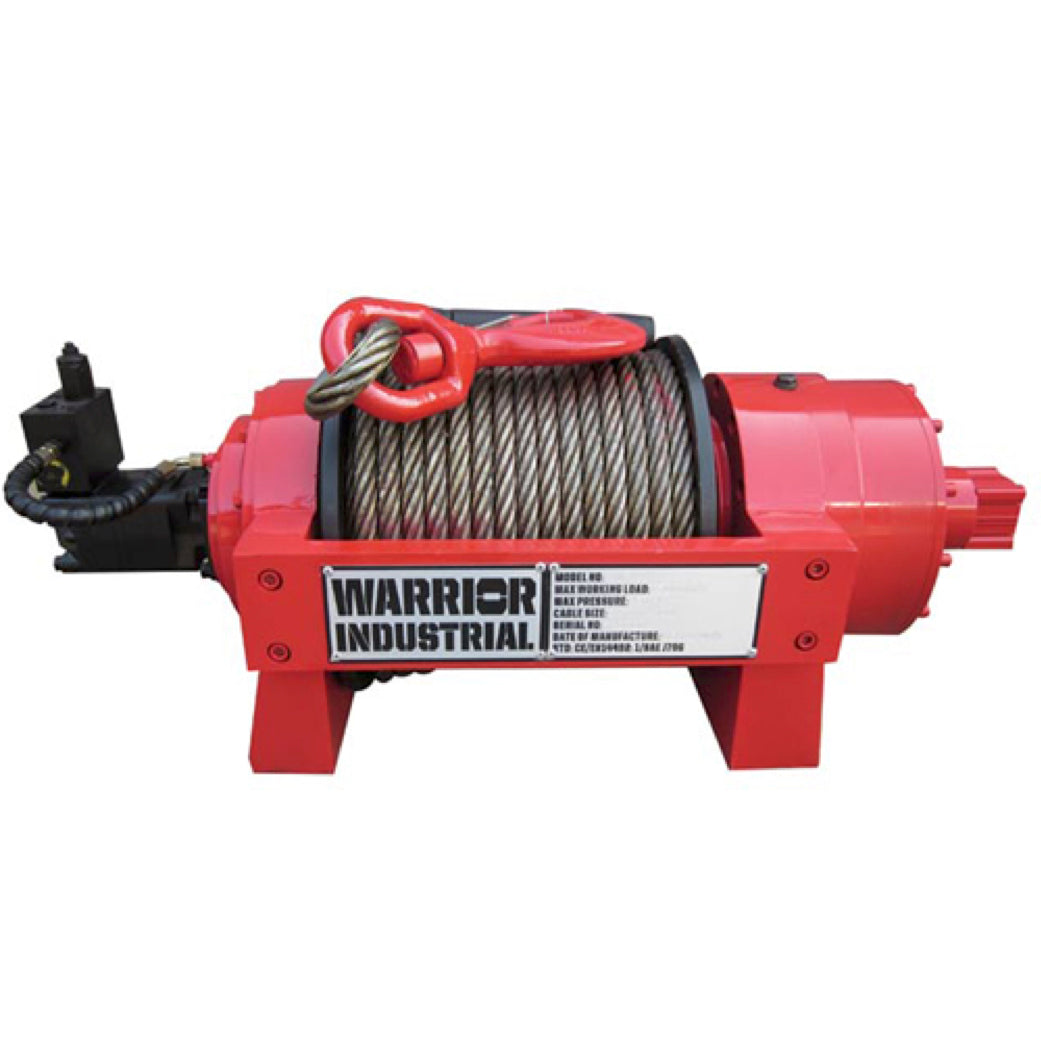

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Outstanding Features
- Rugged High Torque Motor
- 2 Stage Planetary Gearing
- Complete with Balance Valve
- Air Operated Freespool
- Rugged and compact for Long Life
- Heavy Duty Steel Cast Frame
- Rope and Tensioner as Standard
ACCESSORIES INCLUDED
Spec
Rated Line Pull | 33069 lbs (15000 kg) |
---|---|
Gearing | 36:1 |
Braking Action | Auto Hydraulic |
Drum Size - Dia x L | 210 x 340mm (8.26 x 13.39 in) |
Cable - Dia x L | 22mm x 50m (0.87 in x 164 ft) |
Dimensions | 1077 x 640 x 420mm (42.4 x 25.1 x 16.5 in) |
Mounting Pattern | 522mm x 180/280mm (20.5 x 7/11 in) |
Weight kg | 395 kg (870 lbs) |
Max Flow L/min | 110 |
Max Pressure Mpa | 160 Bar |
Clutch | Air Clutch |
Certification | CE Certified |
Tech Area
JP 15 Industrial Hydraulic Winch User Manual
JP 15 Industrial Hydraulic Winch Technical Drawing
JP 15 Industrial Hydraulic Winch Brochure
JP 15 Industrial Hydraulic Winch Parts List
