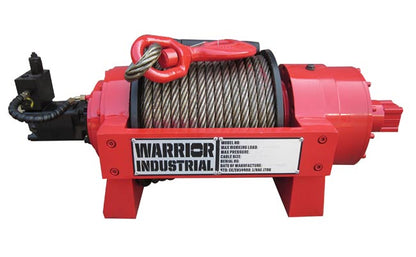

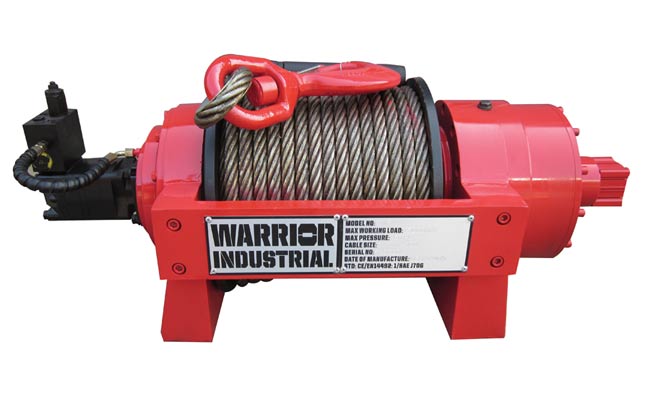

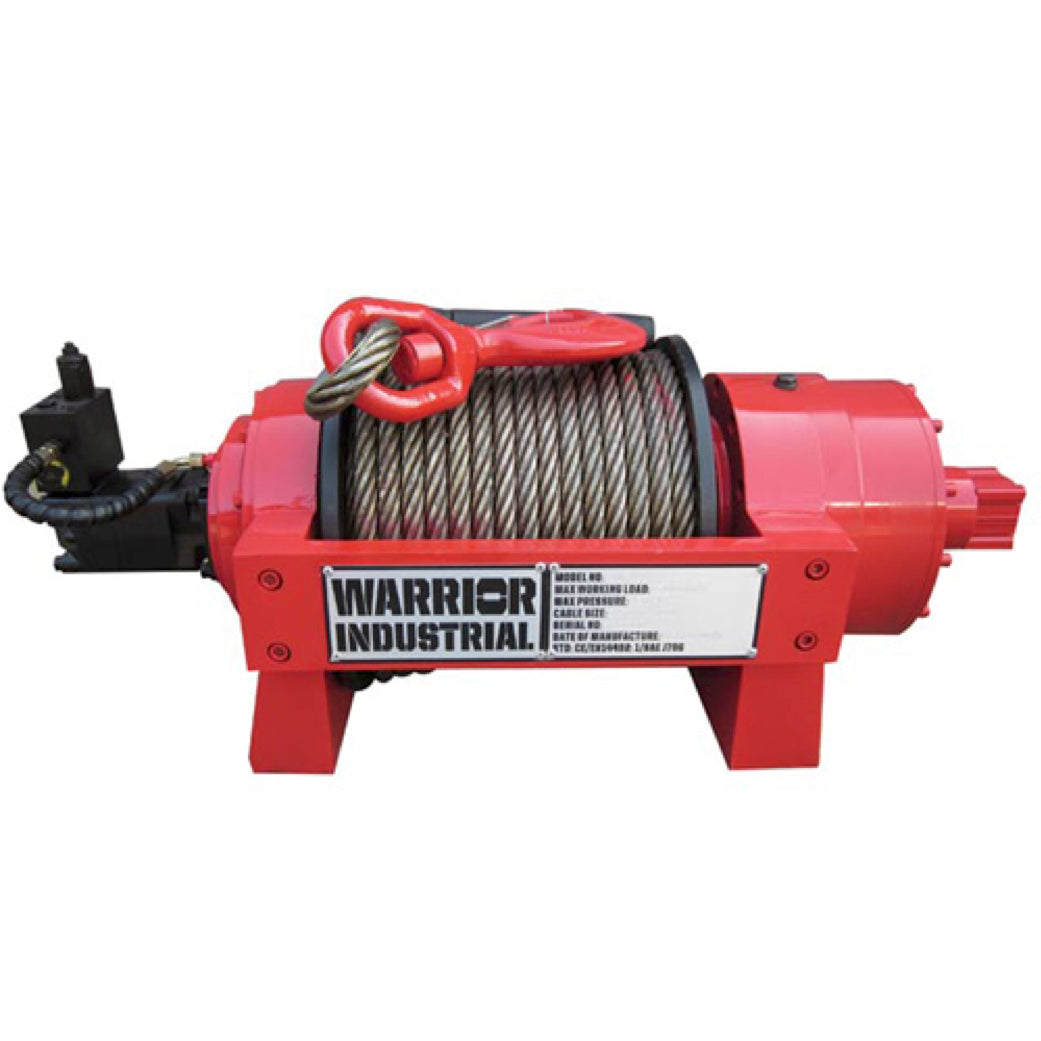

JP 13 Industrial Hydraulic Winch 29762 lbs (13500 kg)

£3,451.67

SKU :161-15-2

DESCRIPTION

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard

Outstanding Features
  • Full Float Heavy Duty Planetary Gearing
  • Multi Disc Friction Brake
  • High Torque Industrial Motor
  • Air and Manual Clutch Operation
  • Heavy Duty Rope Tensioner as Standard
  • Minimum 10:1 Rope/Drum Ratio
  • Balance Valve as Standard
ACCESSORIES INCLUDED

 JP 13 Industrial Hydraulic Winch Accessories

Spec

Rated Line Pull 29762 lbs (13500 kg)
Gearing 36:1
Braking Action Auto Hydraulic
Drum Size - Dia x L 190 x 340mm
(7.48 x 13.39 in)
Cable - Dia x L 18mm x 50m
(0.71 in x 164 ft)
Dimensions 1050 x 640 x 405mm
(41.34 x 25.2 x 15.9 in)
Mounting Pattern 522mm x 180/280mm
(20.5 x 7/11 in)
Weight kg 315 kg (694 lbs)
Max Flow L/min 60 L/min
Max Pressure Mpa 170 Bar
Clutch Air Clutch
Certification CE Certified






Tech Area

  Duct rod data sheetJP 13 Industrial Hydraulic Winch User Manual

Duct rod data sheetJP 13 Industrial Hydraulic Winch Technical Drawing

Duct rod data sheetJP 13 Industrial Hydraulic Winch Brochure

Duct rod data sheetJP 13 Industrial Hydraulic Winch Parts List
