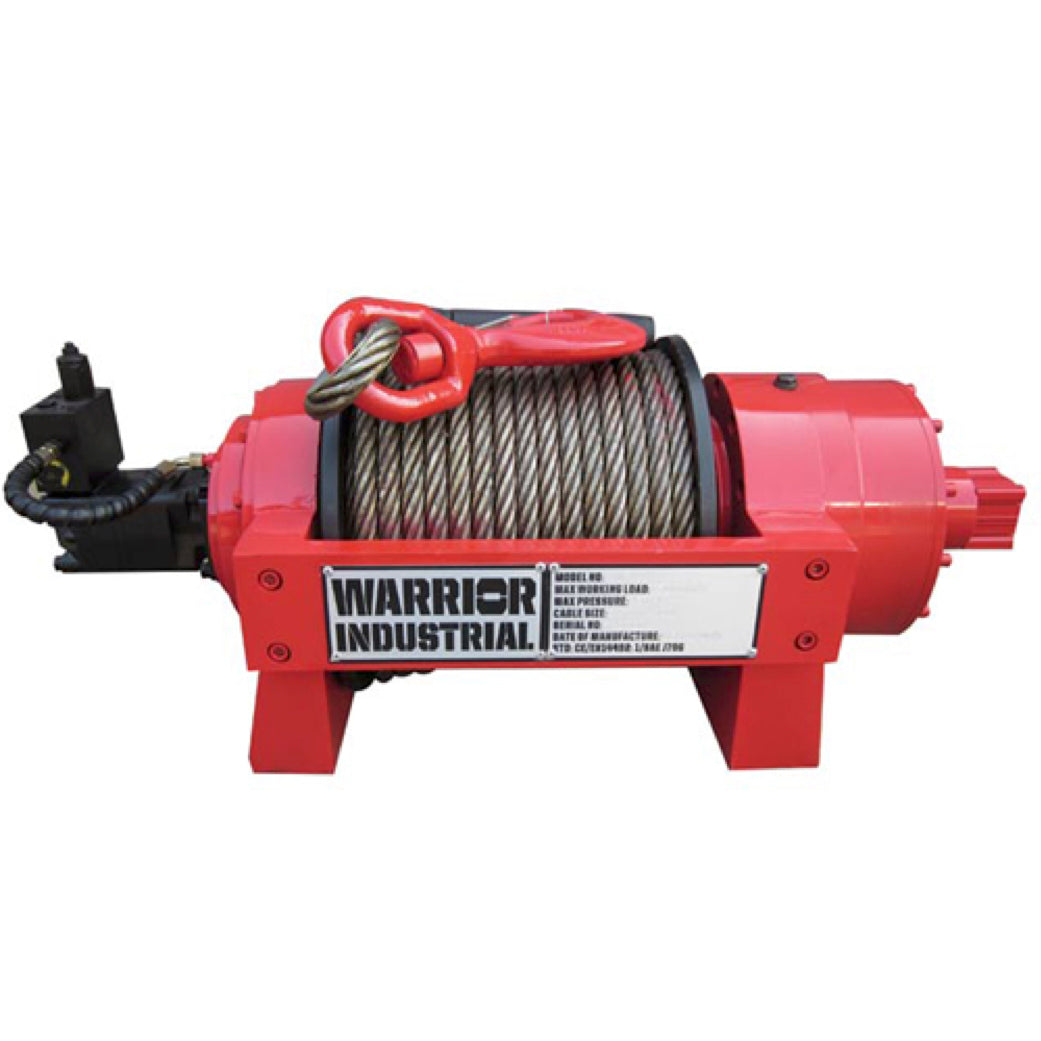

JP 10 Industrial Hydraulic Winch 22000 lbs (10000 kg)

£2,638.89

SKU :161-15-1

DESCRIPTION

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard

Outstanding Features
  • Full Float Heavy Duty Planetary Gearing
  • Multi Disc Friction Brake
  • High Torque Industrial Motor
  • Air and Manual Clutch Operation
  • Heavy Duty Rope Tensioner as Standard
  • Minimum 10:1 Rope/Drum Ratio
  • Balance Valve as Standard
ACCESSORIES INCLUDED

 JP 10 Industrial Hydraulic Winch Accessories Included from RiggingUK

Spec

Rated Line Pull 22000 lbs (10000 kg)
Gearing 39:1
Braking Action Auto Hydraulic
Drum Size - Dia x L 138 x 316mm
(5.43 x 12.44 in)
Cable - Dia x L 15mm x 48m
(0.59 in x 157 ft)
Dimensions 830 x 390 x 320mm
(32.6 x 15.3 x 12.6 in)
Mounting Pattern 431 x 64 / 192 mm
(16.9 x 2.5/7.5 in)
Weight kg 188 kg (414.4 lbs)
Clutch Air Clutch
Certification

CE Certified


Layer of Rope/Cable Line Pull: lbs(kgs)
1 22046 (10000)
2 16889 (7661)
3 14615 (6630)
4

12881 (5843)



Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 5.9 (1.8) 15 25
4000 (1814) 11.7(3.6) 30 42
8000 (3629) 19.6 (6.0) 50 85
15000 (6804) 23.6 (7.2) 60 140
22046 (10000) 29.7 (9.0) 75 175



Tech Area

  Duct rod data sheetJP 10 Industrial Hydraulic Winch User Manual

Duct rod data sheetJP 10 Industrial Hydraulic Winch Technical Drawing

Duct rod data sheetJP 10 Industrial Hydraulic Winch Brochure

Duct rod data sheetJP 10 Industrial Hydraulic Winch Parts List
