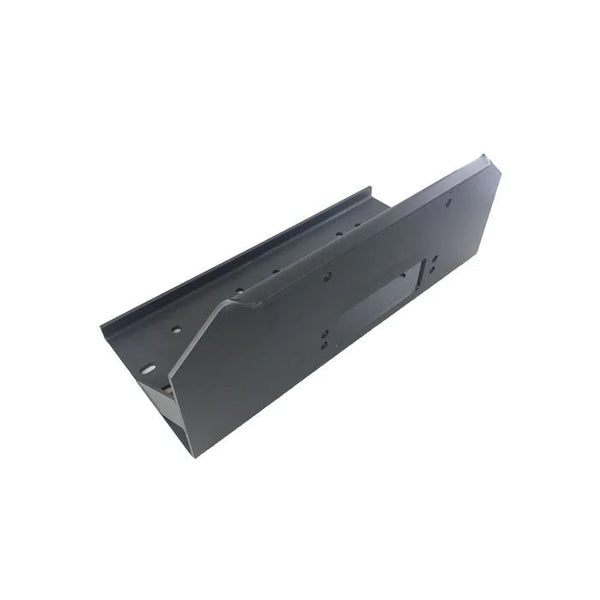

Samurai - Winch Installation Plate - For Winches up to 20000lbs

Name: Samurai - Winch Installation Plate - For Winches up to 20000lbs
Brand: Warrior Winches
SKU: 161-28-6
Price: 132.00 GBP
Availability: InStock

Warrior Winches SKU: 161-28-6

1 1

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai 17500 electric winch, but is also designed to be used with other winches of up to 22,000lb, Please see below for... Read More

£132.00

Sale TODAY'S PRICE £132.00

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai 17500 electric winch, but is also designed to be used with other winches of up to 22,000lb, Please see below for fitment options.

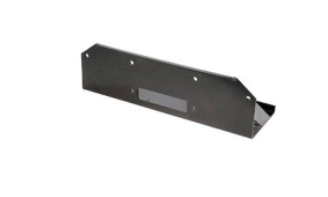

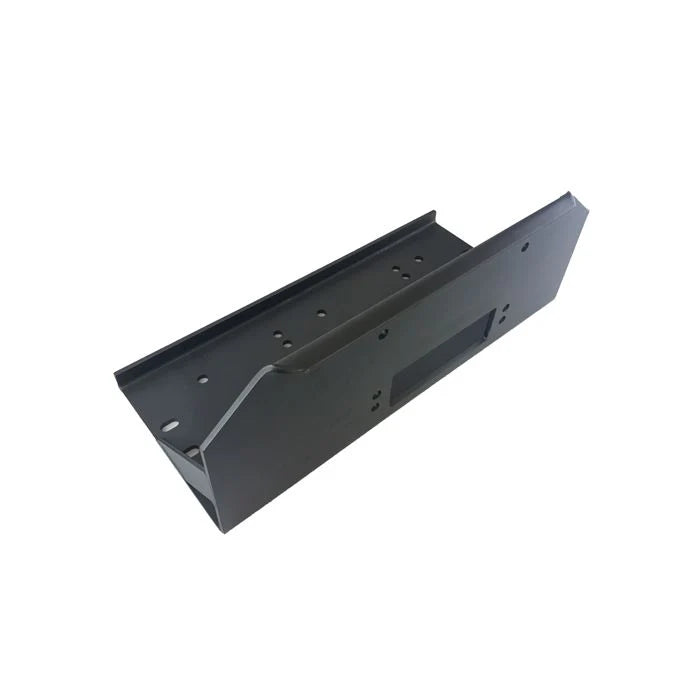

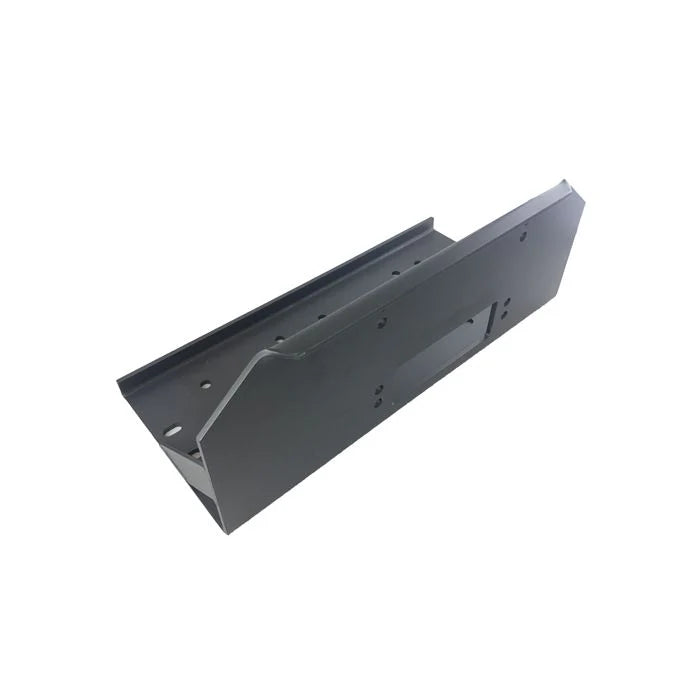

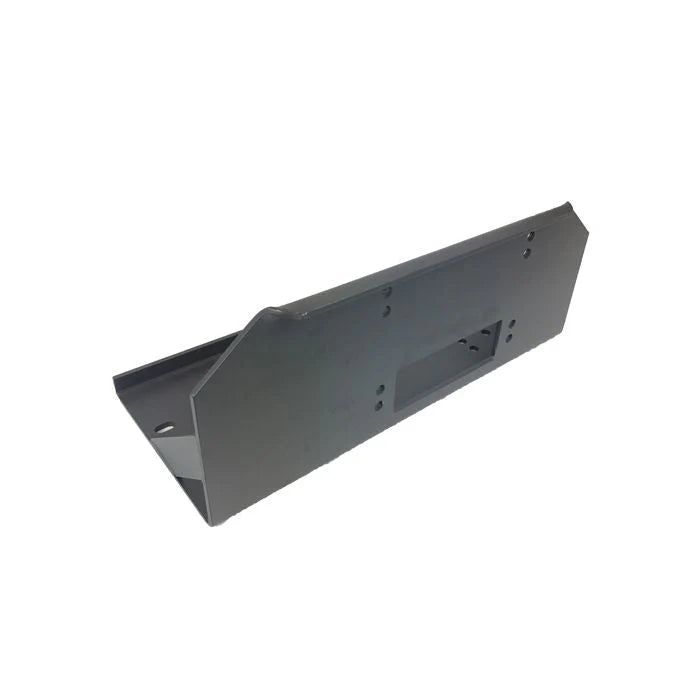

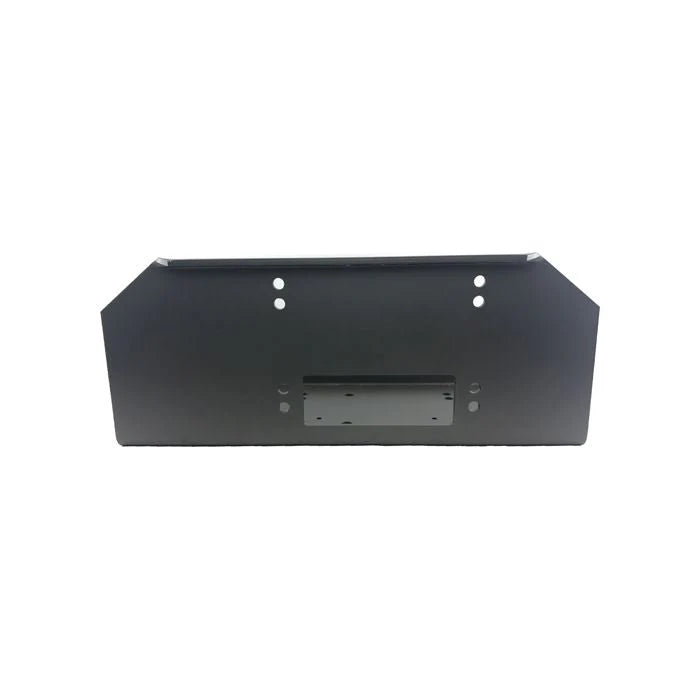

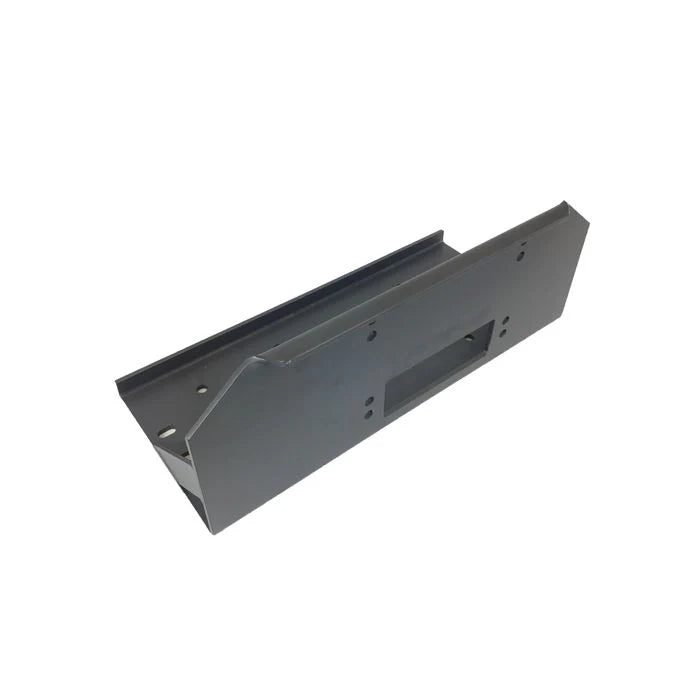

Folded metal 12v/24v Winch Installation plate with fairlead locator holes and mounting pattern holes. There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches.

Finished in a durable black powder coat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing.

This plate is designed for use with the following Samurai S17500 and S20000 12v or 24v Powered Pulling Winches:

Foot forward mounting for the Samurai 17500 model rated at 18,000lbs

Samurai 17500 Warrior Winches. (Wire Rope Version) (Synthetic rope version)

Foot down mounting rated at 22,000lbs

Samurai 20000 Warrior Winches.(Wire Rope Version) (Synthetic rope version)
Samurai 4000 EN Winches.(Wire Rope Version)
Samurai 5250 EN Winches.(Wire Rope Version)
Samurai 6000 EN Winches.(Wire Rope Version)

Please cross reference the mounting pattern of your winch with the above dimensions

Compatible Winches

Samurai 17500
	SKU Code	Manufacture code
Wire Rope	161-8-21	175SS12
Wire Rope	161-8-22	175SS24
Synthetic Rope	161-8-23	175SA12
Synthetic Rope	161-8-24	175SA24

Samurai 20000
	SKU Code	Manufacture code
Wire Rope	161-8-25	200SS12
Wire Rope	161-8-26	200SS24
Synthetic Rope	161-8-27	200SA12
Synthetic Rope	161-8-28	200SA24

Samurai 4000 EN
	SKU Code	Manufacture code
Wire Rope	161-12-3	40ENS12
Wire Rope	161-12-4	40ENS24

Samurai 5250 EN
	SKU Codes	Manufacture code
Wire Rope	161-12-5	52ENS12
Wire Rope	161-12-6	52ENS24

Samurai 6000 EN
	SKU Codes	Manufacture code
Wire Rope	161-12-7	60ENS12
Wire Rope	161-12-8	60ENS24
