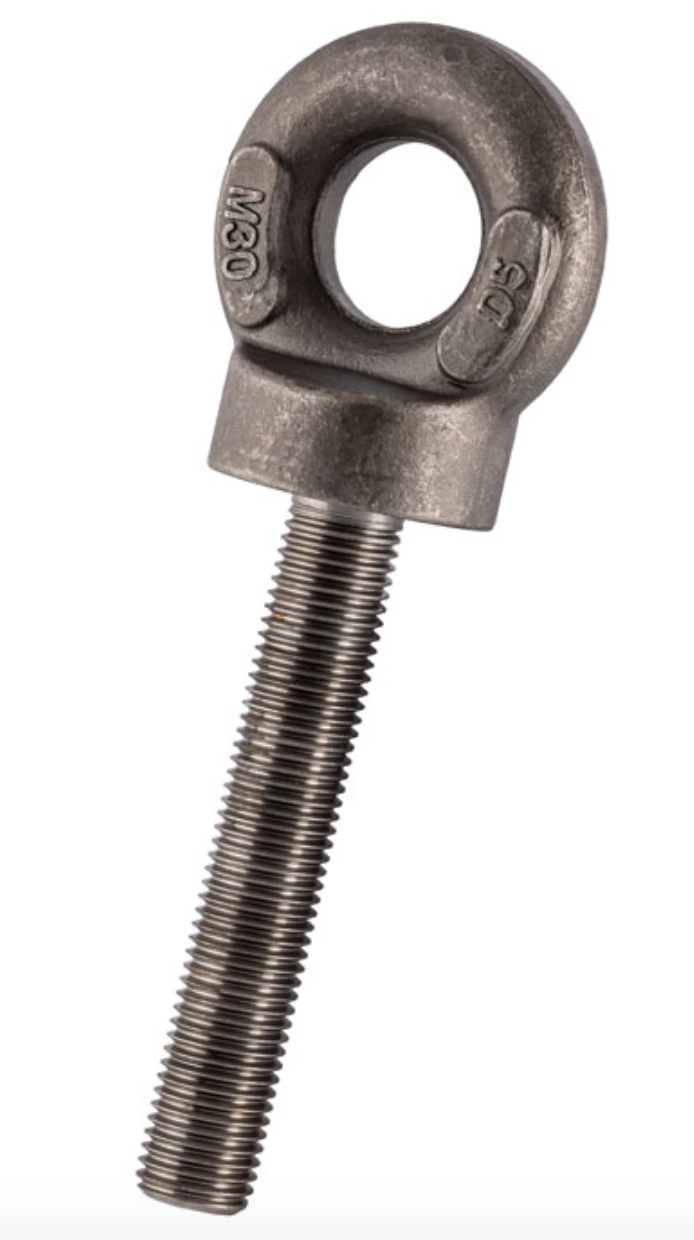

High Tensile Long Shank Collared Eyebolt Metric Thread - EBCLSM
- Drop forged, high tensile steel, heat treated.
- Self colour and electro galvanised finish.
- Meets the W.L.L. performance requirements of BS 4278.
- Minimum breaking load is 5 times the W.L.L.
- Marked with CE, W.L.L, size and product ID mark.
- For further clarification on reductions for non-axial loading, please consult RiggingUK.
- Certification available 2.1 DoC
Spec
| SKU | Product Code | W.L.L. | A | B | D | E | F | G | H | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | kgs | ||
| 286-624-1 | EBCLSM10 | 0.25 | 10 | 22 | 7 | 15 | 9 | 19.5 | 178 | 0.18 |
| 286-624-2 | EBCLSM12 | 0.4 | 12 | 28 | 11 | 19 | 11 | 24.5 | 178 | 0.25 |
| 286-624-3 | EBCLSM16 | 0.8 | 16 | 36 | 14 | 24 | 14 | 32 | 178 | 0.44 |
| 286-624-4 | EBCLSM20 | 1.6 | 20 | 43 | 17 | 29 | 16.5 | 38 | 178 | 0.7 |
| 286-624-5 | EBCLSM24 | 2.5 | 24 | 57 | 19 | 38 | 22 | 46 | 178 | 1.05 |
| 286-624-6 | EBCLSM30 | 4 | 30 | 71 | 24 | 48 | 28 | 64 | 178 | 2.8 |
