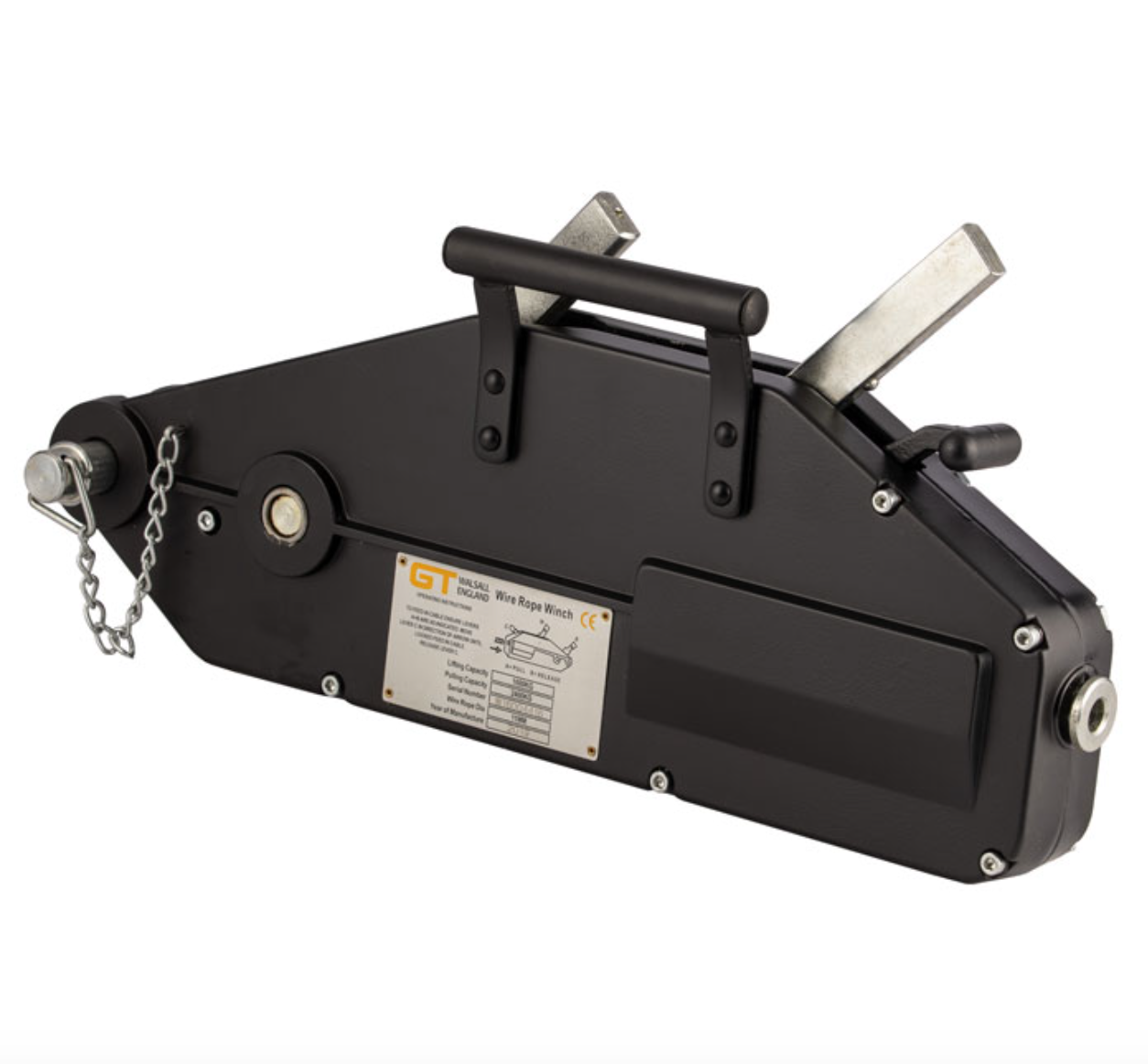

GT Viper Wire Rope Winch Puller to BS-EN 13157

by Viper
£301.63

SKU :286-527-1-10

Capacity Lifting
Wire Rope Length
GT Vipe Wire Rope Winch Puller to BS-EN 13157 - VWRW
  • Portable unit for pulling, lifting, lowering and securing loads.
  • Black painted finish.
  • Meets the W.L.L. performance requirements of BS EN 13157.
  • Minimum breaking load is 4 times the W.L.L. based on the lifting capacity.
  • All machines are supplied complete with an extendable operating handle.
  • Only the GT specially manufactured wire rope will ensure correct functioning.
  • Overload protection ensures high personal safety when in operation.
  • Marked in accordance with BS EN 13157.
  • Certification available  EC DoC


        Spec

        SKU Product Code Lifting Capacity Pulling Capacity Rope Dia A B C D E L1 L2 Weight
        kgs kgs mm mm mm mm mm mm mm mm kgs
        286-527-1 VWRW0.8 800 1,250 8.3 426 235 168 60 64 - 800 6
        286-527-2 VWRW1.6 1,600 2,500 11 545 280 190 72 97 800 1200 11
        286-527-3 VWRW3.2 3,200 5,000 16 660 325 230 91 116 800 1200 22
        286-527-4 VWRW5.4 5,400 8,400 20 932 420 300 155 152 800 1350 57

        *** Table above is for Wire Rope Puller on it's own with no wire rope fitted ***
