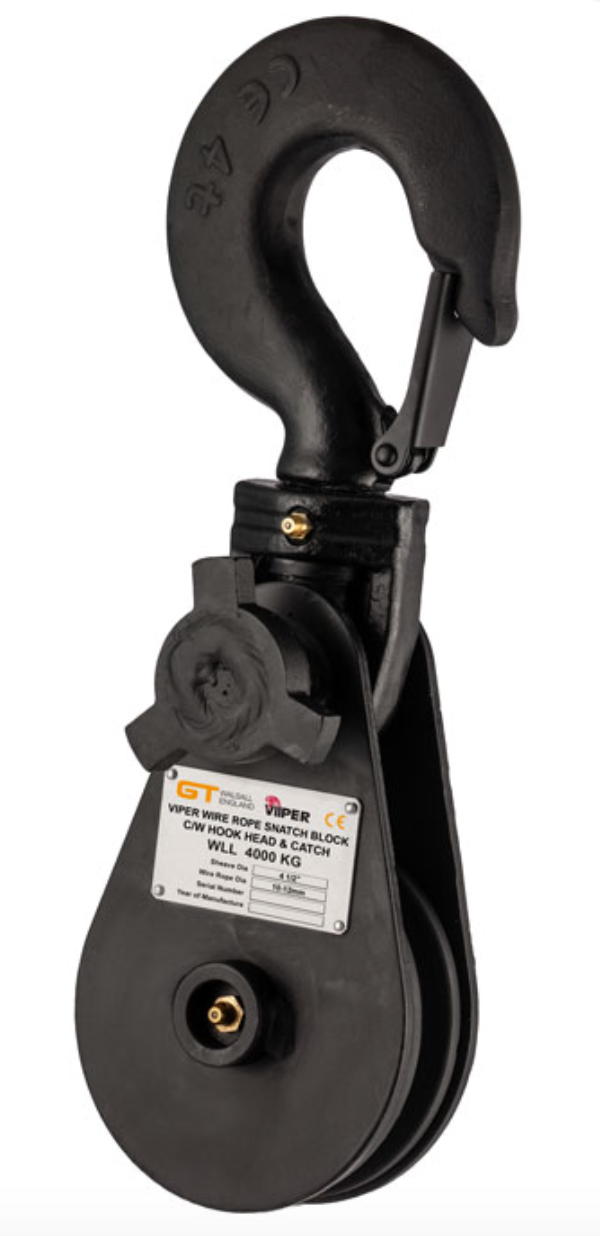

GT Viper Wire Rope Snatch Block Hook Head

by Viper
£82.32

SKU :286-532-20

Sheave Diameter
W.L.L.
Wire Diameter
GT Viper Wire Rope Snatch Block Hook Head - VSBH
  • Carbon steel, light and robust design.
  • Matt black finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Hooks are supplied with heavy duty safety catches.
  • 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
  • Suitable for all types of industrial and commercial lifting and lowering applications.
  • W.L.L. is on the head fitting.
  • Certification available



      Spec

      SKU Product Code Sheave Dia W.L.L. Wire Dia A2 B C Weight
      inches t mm mm mm mm kgs
      286-532-20 VSBH32 3 2 7-9 286 82 70 4
      286-532-21 VSBH44 4.1/2 4 10-12 345 120 70 6
      286-532-22 VSBH6816 6 8 16 480 160 93 15
      286-532-23 VSBH6820 6 8 20-22 475 160 93 14
      286-532-24 VSBH88 8 8 20-22 528 210 93 20
      286-532-25 VSBH1012 10 12 20-22 679 260 114 36
      286-532-26 VSBH815 8 15 20-22 663 210 98 34
      286-532-27 VSBH1215 12 15 24-26 884 310 133 54
      286-532-28 VSBH1422 14 22 28-32 952 365 140 112
      286-532-29 VSBH1630 16 30 32-35 1085 415 155 170
      286-532-30 VSBH2030 20 30 32-35 1177 514 162 213
