Home » GT Viper Wire Rope Snatch Block Shackle Head

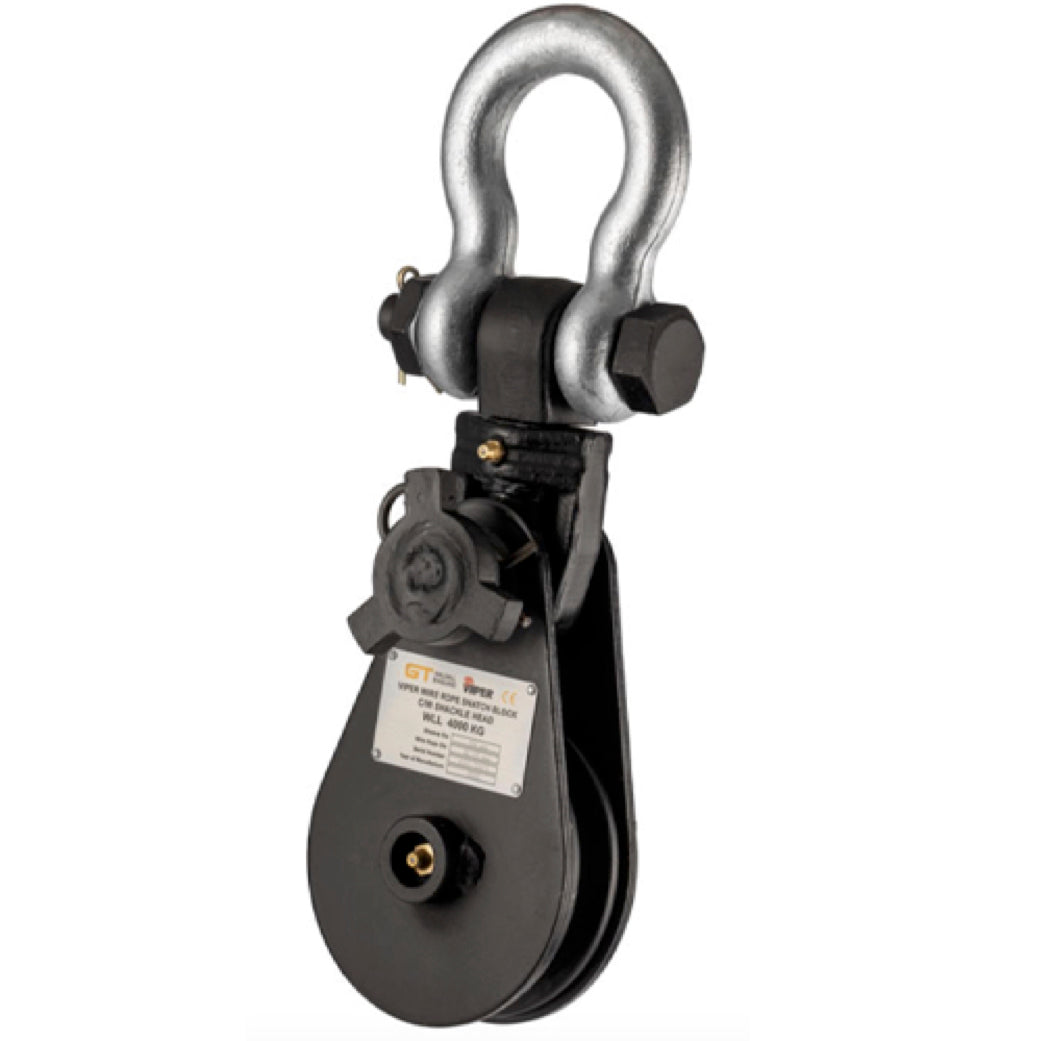

GT Viper Wire Rope Snatch Block Shackle Head from RiggingUK

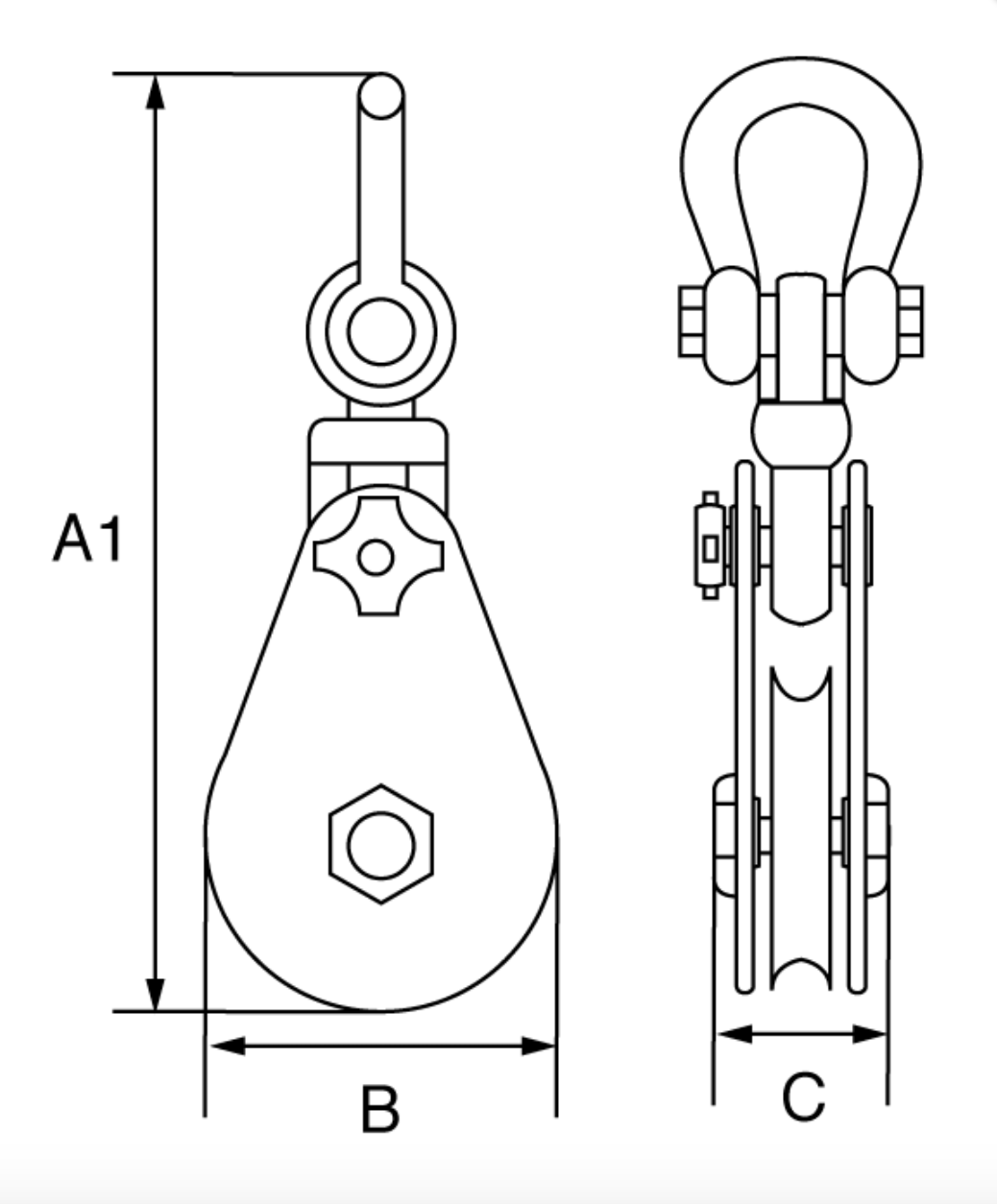

GT Viper Wire Rope Snatch Block Shackle Head Dimensions

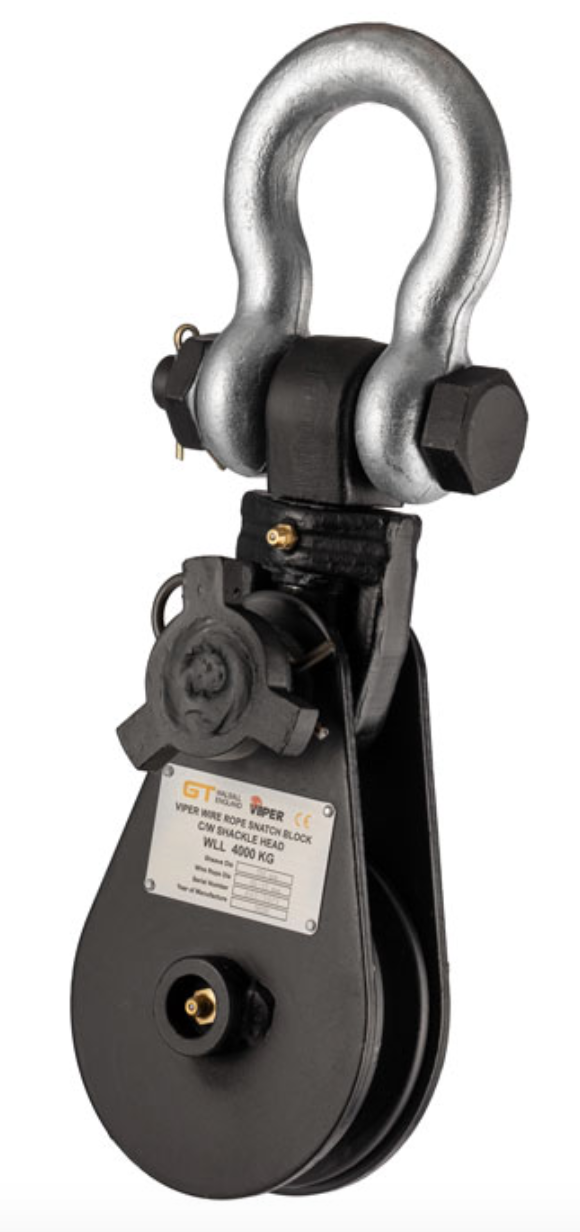

GT Viper Wire Rope Snatch Block Shackle Head from RiggingUK
GT Viper Wire Rope Snatch Block Shackle Head Dimensions
Viper

GT Viper Wire Rope Snatch Block Shackle Head

In stock
SKU: 286-532-1
(0)
£96.00 GBP inc vat
Sheave Diameter
W.L.L.
Wire Diameter
GT Viper Wire Rope Snatch Block Shackle Head
  • Carbon steel, light and robust design.
  • Matt black finish.
  • Minimum breaking load is 4 times the W.L.L.
  • 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
  • Suitable for all types of industrial and commercial lifting and lowering applications.
  • W.L.L. is on the head fitting.
  • Certification available



      Spec

      SKU Sheave Dia W.L.L. Wire Dia A2 B C Weight
      inches t mm mm mm mm kgs
      286-532-1 3 2 7-9 286 82 70 4
      286-532-2 4.1/2 4 10-12 345 120 70 6
      286-532-3 6 8 16 480 160 93 15
      286-532-4 6 8 20-22 475 160 93 14
      286-532-5 8 8 20-22 528 210 93 20
      286-532-6 10 12 20-22 679 260 114 36
      286-532-7 8 15 20-22 663 210 98 34
      286-532-8 12 15 24-26 884 310 133 54
      286-532-9 14 22 28-32 952 365 140 112
      286-532-10 16 30 32-35 1085 415 155 170
      286-532-11 20 30 32-35 1177 514 162 213
