GT Permanent Magnetic Lifter to BS-EN 13155

by Viper
£194.56

SKU :286-524-1

Capacity

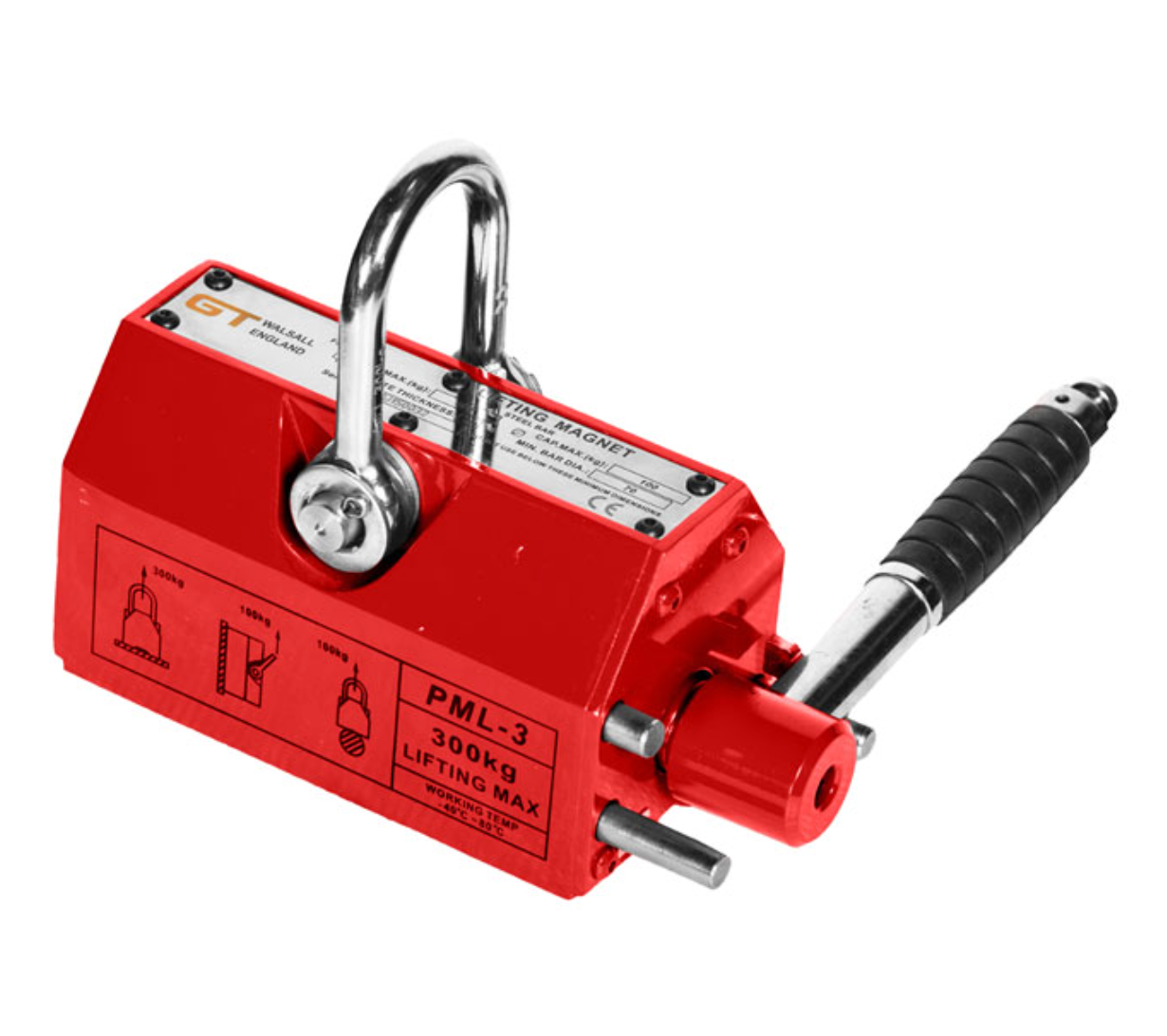

GT Permanent Magnetic Lifter - PML
  • Permanent Magnetic Lifter for safe, easy operation and handling.
  • Designed for the lifting & handling of magnetic material.
  • Requires no extra power, strong magnetic force.
  • Red painted finish.
  • Conforms to BS EN 13155.
  • Temperature range -40ºC up to +80ºC.
  • Marked in accordance with BS EN 13155.
  • Certification available  DoC


      Spec

      SKU Product Code Part No. Plate Capacity Cylindrical Capacity Tear-Off Force H I L W Weight
      kgs kgs kgs mm mm mm mm kgs
      286-524-1 PML100 PML-1 100 30 350 70 142 92 64 3
      286-524-2 PML300 PML-3 300 100 1,050 96 176 165 88 10
      286-524-3 PML600 PML-6 600 200 2,100 120 219 236 118 24
      286-524-4 PML1000 PML-10 1,000 300 3,500 168 266 264 168 50
      286-524-5 PML2000 PML-20 2,000 600 7,000 217 462 378 230 125
      286-524-6 PML3000 PML-30 3,000 1,000 10,500 265 567 453 290 220
      286-524-7 PML5000 PML-50 5,000 1,500 17,500 265 707 647 290 355
      286-524-8 PML6000 PML-60 6,000 2,000 19,200 265 707 713 290 398



       Duct rod data sheetProduct data sheet (COMING SOON)
