GT Cobra Grade 80 Weld on Pivoting D Ring

£9.71

SKU :286-609-1

W.L.L.

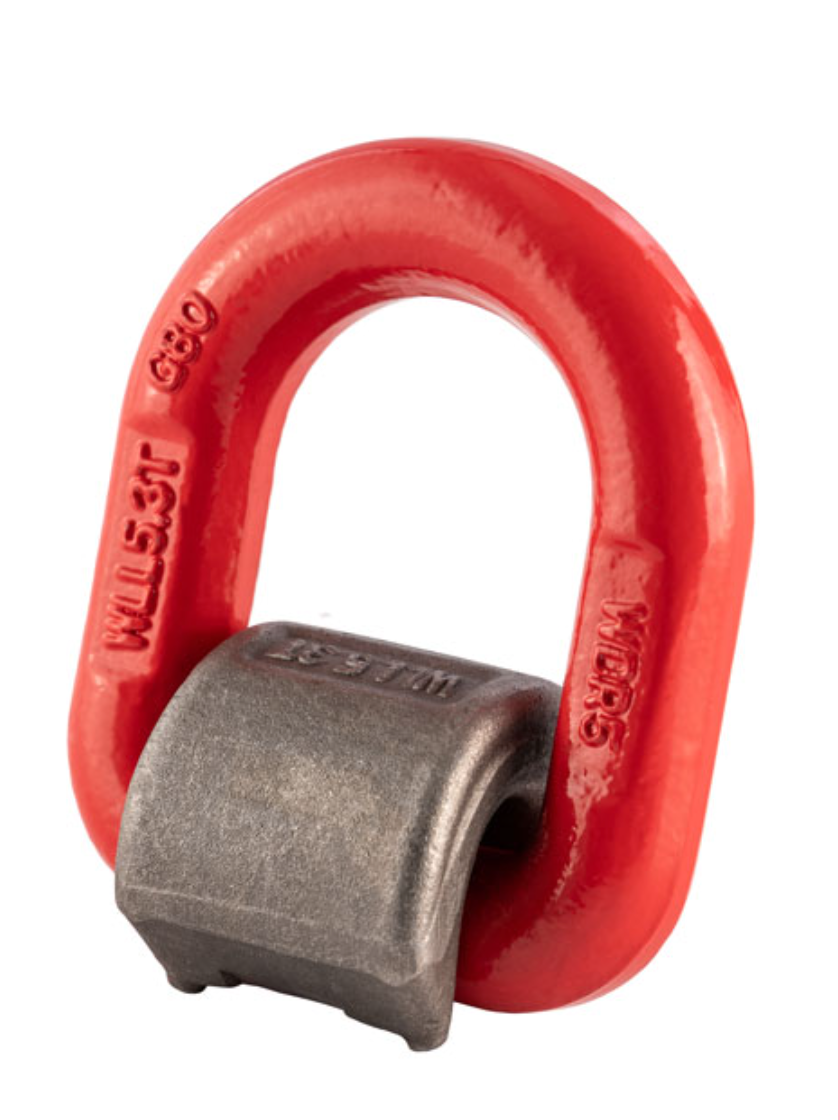

GT Cobra Grade 80 Weld on Pivoting D Ring - G80WDR
  • Base: 16 Mn carbon steel base.
  • Ring: Grade 80 alloy steel.
  • Red painted finish.
  • Welding must be carried out by a qualified welder according to BS EN 287-1.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID.
  • Please consult safety instruction for all welding assistance and product guidance before use.
  • Certification available DoC

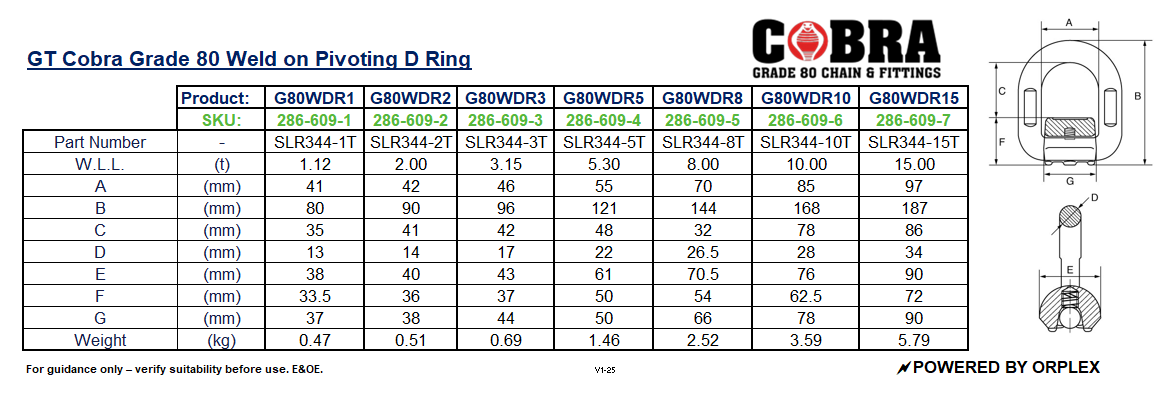

      Spec

      SKU Product Code Part No. W.L.L. A B D H M Weight
      t mm mm mm mm mm kgs
      286-609-1 G80WDR1 SLR344-1T 1.12 41 78.5 13 33.5 37 0.4
      286-609-2 G80WDR2 SLR344-2T 2 42 88 14 33.5 40 0.47
      286-609-3 G80WDR3 SLR344-3T 3.15 45 94 17 39 42.5 0.69
      286-609-4 G80WDR5 SLR344-5T 5.3 55 118 22 49 50 1.46
      286-609-5 G80WDR8 SLR344-8T 8 70 141 26.5 54 66.5 2.5
      286-609-6 G80WDR10 SLR344-10T 10 85 165 28 63.5 90 3.59
      286-609-7 G80WDR15 SLR344-15T 15 97 188 34 72 90 5.79





       Duct rod data sheetProduct data sheet (COMING SOON)
