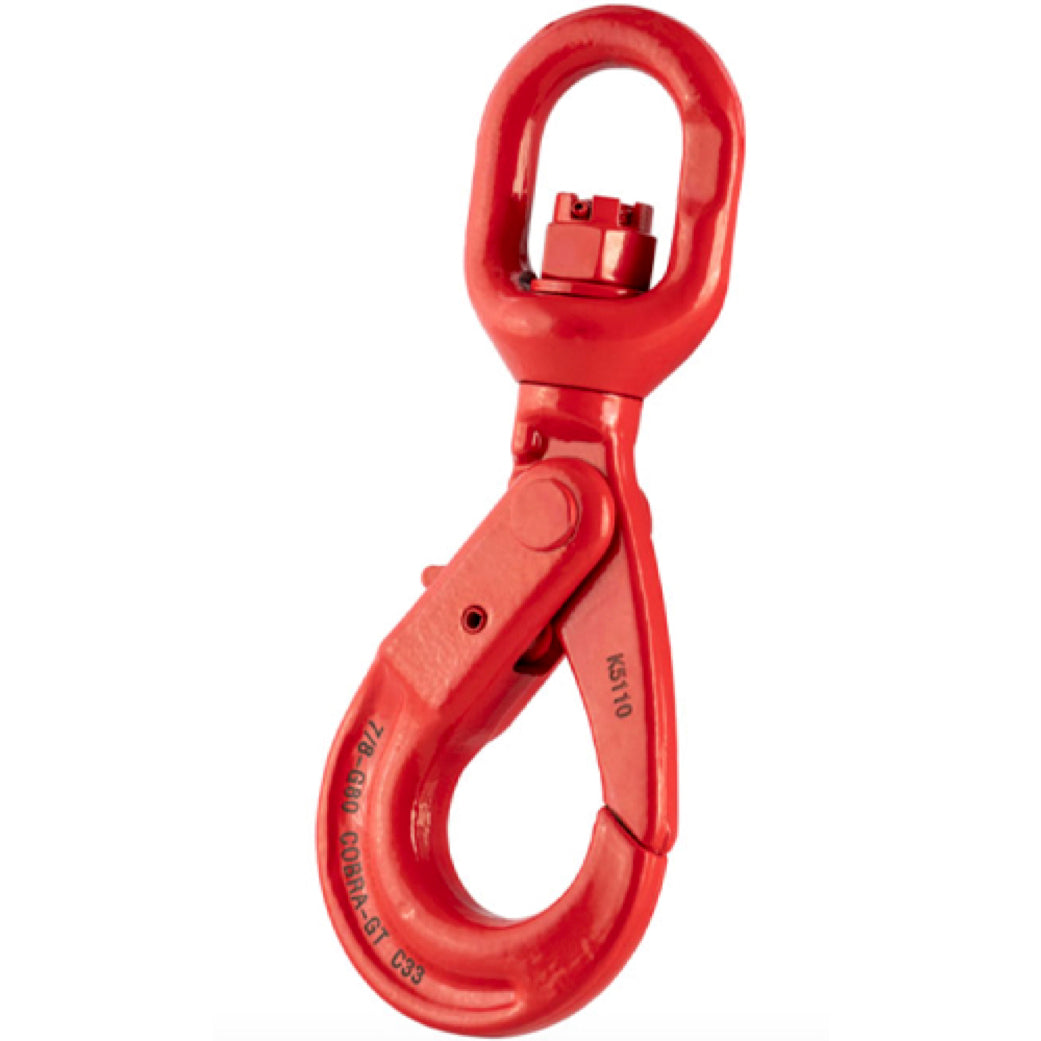

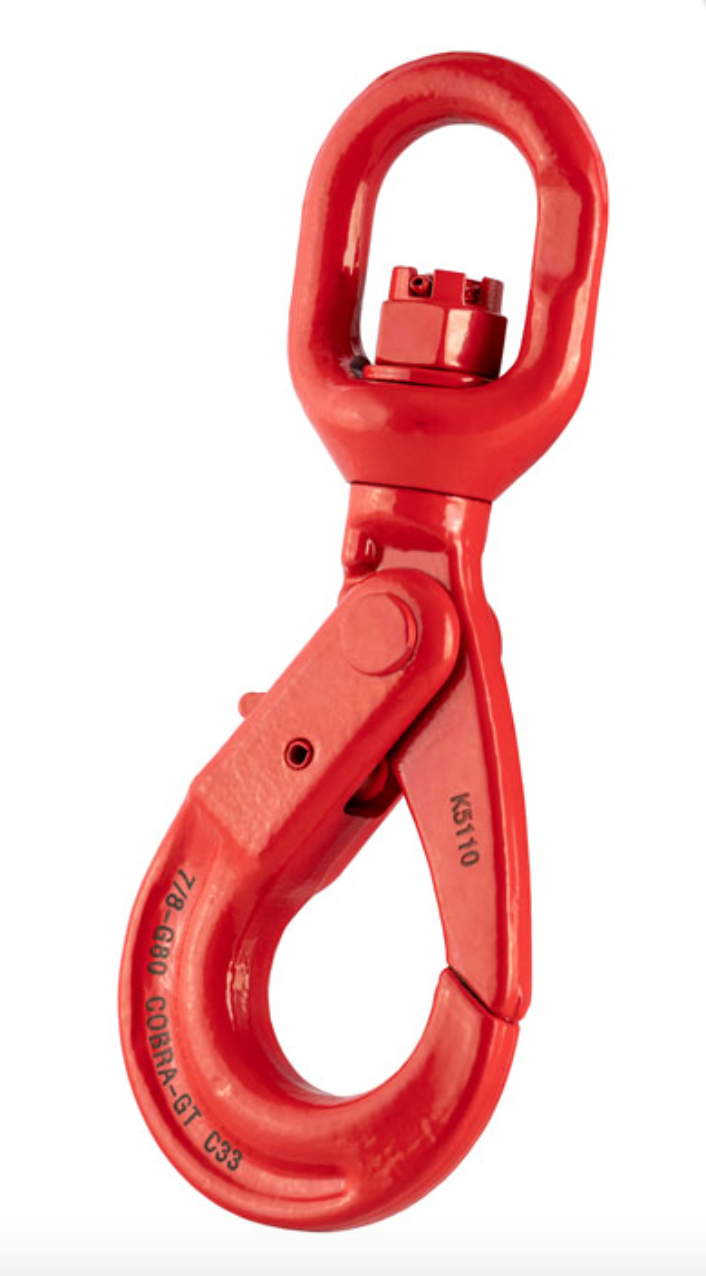

GT Cobra Grade 80 Swivel Self Locking Hook
- Alloy steel, quenched and tempered.
- Red painted finish.
- Meets the W.L.L. performance requirements of BS EN 1677-3.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available EC DoC
| SKU |

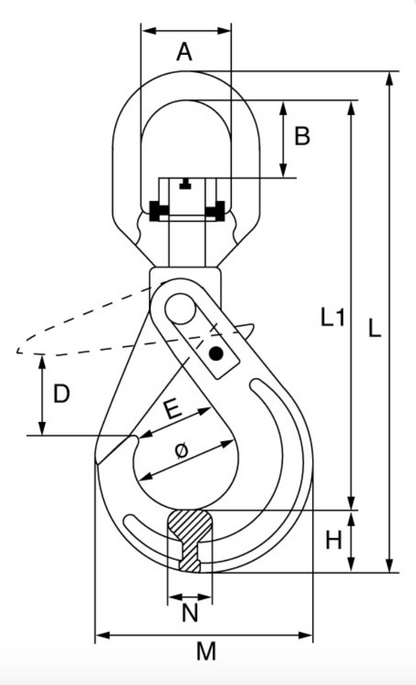

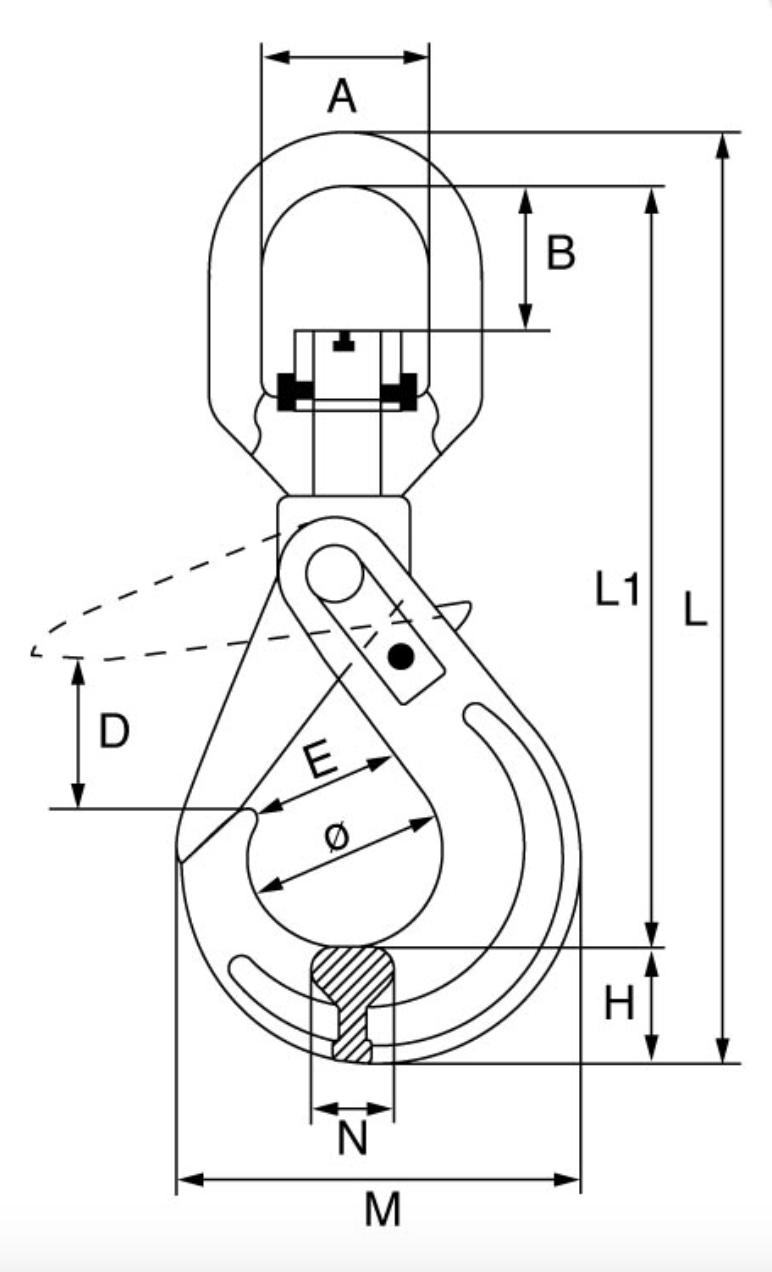

Part No. | Chain Dia | A | B | C | E | H | L | L1 | M | N | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-120-1 |
K5110 | 7/8 | 36 | 29.5 | 39 | 35.8 | 29.5 | 228 | 189 | 87 | 20 | 44 |
| 286-120-2 |
K5111 | 10 | 42 | 35 | 48 | 48 | 30 | 270 | 224 | 108 | 26 | 58 |
| 286-120-3 |
K5112 | 13 | 50 | 41 | 65 | 52.5 | 40 | 324 | 267 | 122 | 33 | 70 |
| 286-120-4 |
K5113 | 16 | 61 | 56.8 | 65 | 63.3 | 50.5 | 406 | 355.6 | 168.6 | 36 | 86 |
| 286-120-5 |
K5114 | 20 | 72 | 63 | 85 | 86 | 55 | 460 | 378 | 185 | 50 | 97 |
Technical Data
| SKU | Part No. | Chain Dia | W.L.L. | M.P.L. | M.B.L. | Packing Qty | Weight |
|---|---|---|---|---|---|---|---|
| mm | t | t | t | kgs | |||
| 286-120-1 | K5110 | 7/8 | 2 | 4 | 8 | 15 | 1.15 |
| 286-120-2 | K5111 | 10 | 3.15 | 6.3 | 12.6 | 8 | 1.86 |
| 286-120-3 | K5112 | 13 | 5.3 | 10.6 | 21.2 | 6 | 3.51 |
| 286-120-4 | K5113 | 16 | 8 | 16 | 32 | 4 | 7.33 |
| 286-120-5 | K5114 | 20 | 12.5 | 25 | 50 | 1 | 10.3 |
