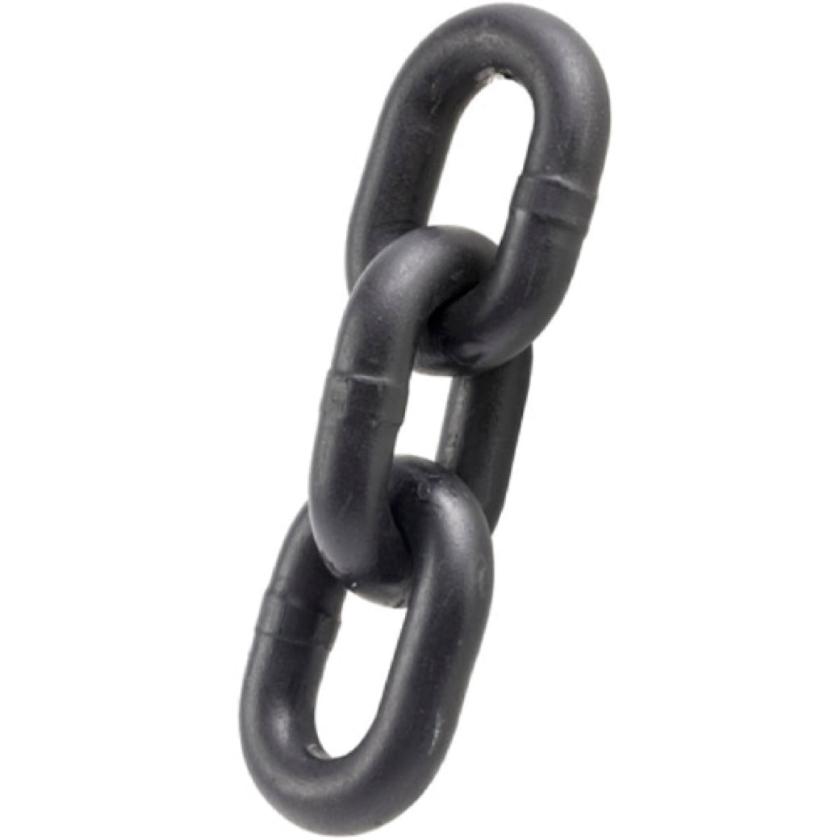

Grade 80 Short Link Chain GT Cobra

In stock
SKU: 286-110-1
Regular price $8.00 USD
Chain Diameter

Grade 80 Short Link Chain

  • Alloy steel, quenched and tempered.
  • Black lacquered finish.
  • Meets the W.L.L. performance requirements of BS EN 818-2.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with material grade, manufacturers ID and traceability code.
  • Supplied with EC Declaration of Conformity

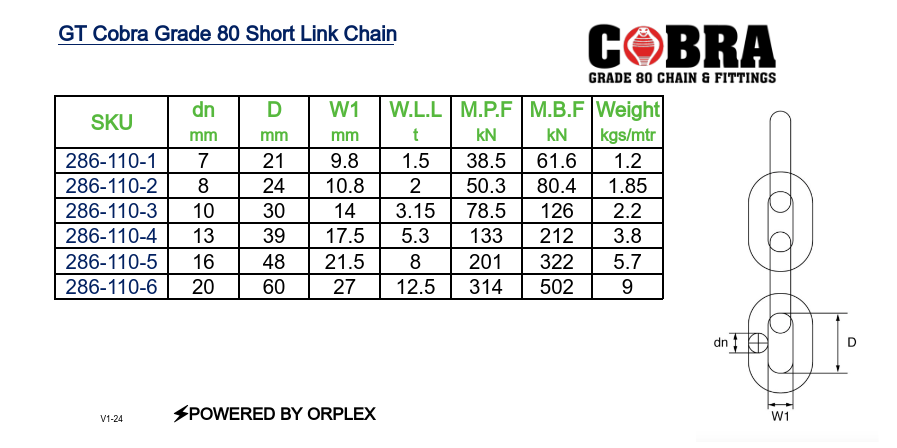

Spec



SKU dn  D W1 W.L.L. M.P.F M.B.F Weight
mm mm mm t kN kN kgs/mtr
286-110-1 7 21 9.8 1.5 38.5 61.6 1.2
286-110-2 8 24 10.8 2 50.3 80.4 1.85
286-110-3 10 30 14 3.15 78.5 126 2.2
286-110-4 13 39 17.5 5.3 133 212 3.8
286-110-5 16 48 21.5 8 201 322 5.7
286-110-6 20 60 27 12.5 314 502 9.0
