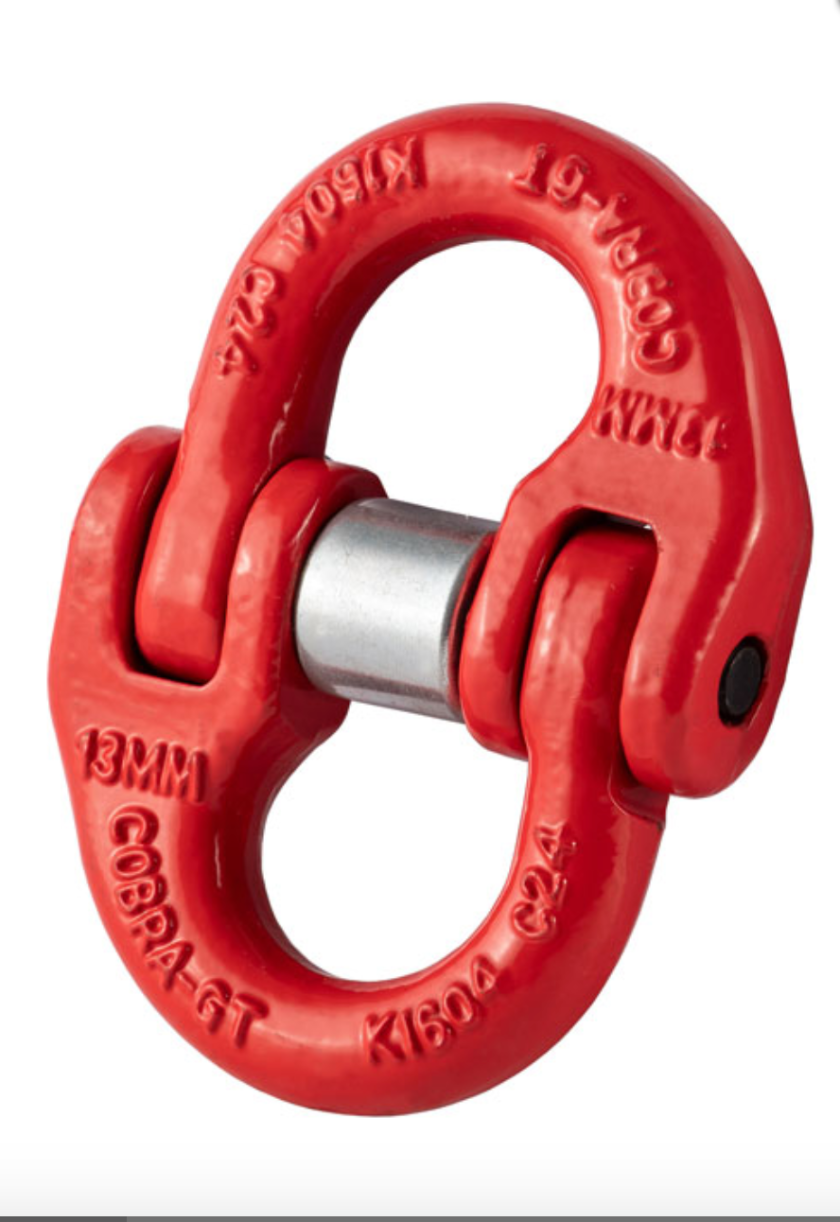

GT Cobra Grade 80 Component Connector
-
Material: Made from high-strength alloy steel, quenched and tempered for durability
-
Finish: Red painted finish for corrosion resistance and easy identification
-
Performance: Meets the W.L.L. (Working Load Limit) performance requirements of BS EN 1677-1
-
Markings: Clearly marked with material grade, manufacturer's ID, size, product ID mark, and traceability code
-
Certification: Supplied with a Declaration of Conformity
Our Grade 80 Component Connector ensures reliable performance and safety, making it an essential addition to your lifting and rigging equipment

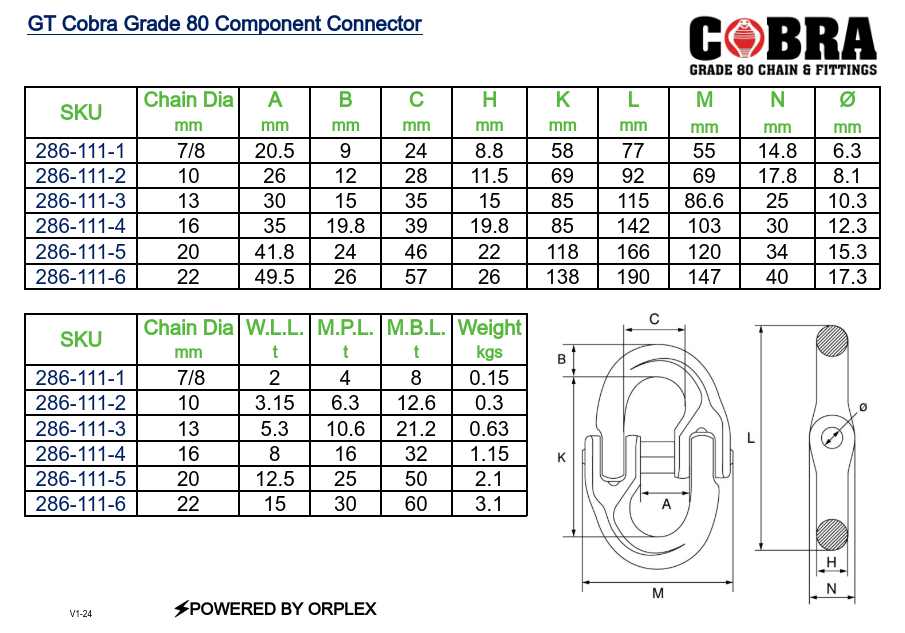

Specification
Product Code |
Chain Dia |
A |
B |
C |
H |
K |
L |
M |
N |
Ø |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-111-1
|
7/8 |
20.5 |
9 |
24 |
8.8 |
58 |
77 |
55 |
14.8 |
6.3 |
286-111-2
|
10 |
26 |
12 |
28 |
11.5 |
69 |
92 |
69 |
17.8 |
8.1 |
286-111-3
|
13 |
30 |
15 |
35 |
15 |
85 |
115 |
86.6 |
25 |
10.3 |
286-111-4
|
16 |
35 |
19.8 |
39 |
19.8 |
85 |
142 |
103 |
30 |
12.3 |
286-111-5
|
20 |
41.8 |
24 |
46 |
22 |
118 |
166 |
120 |
34 |
15.3 |
286-111-6
|
22 |
49.5 |
26 |
57 |
26 |
138 |
190 |
147 |
40 |
17.3 |
Technical Data
SKU |
Chain Dia |
W.L.L. |
M.P.L. |
M.B.L. |
Weight |
|
mm |
t |
t |
t |
kgs |
286-111-1 |
7/8 |
2 |
4 |
8 |
0.15 |
286-111-2 |
10 |
3.15 |
6.3 |
12.6 |
0.3 |
286-111-3 |
13 |
5.3 |
10.6 |
21.2 |
0.63 |
286-111-4 |
16 |
8 |
16 |
32 |
1.15 |
286-111-5 |
20 |
12.5 |
25 |
50 |
2.1 |
286-111-6 |
22 |
15 |
30 |
60 |
3.1 |
