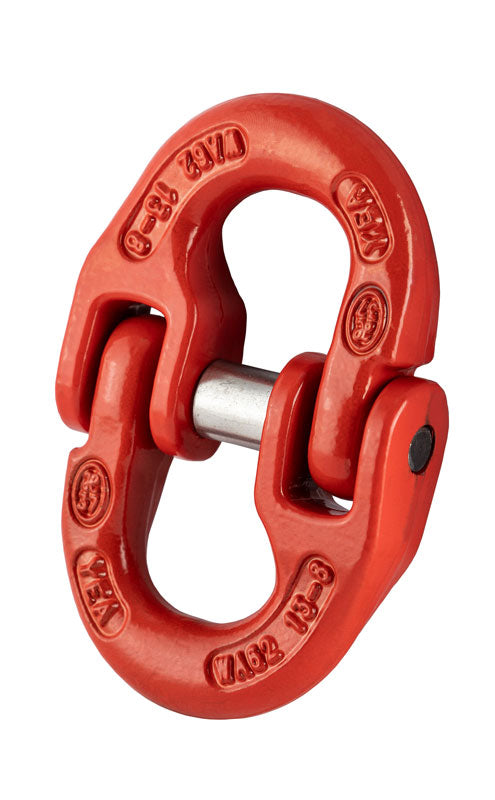

Grade 8 Component Connecter to BS-EN 1677-1

£6.84

SKU :286-13-1

Chain Diameter
P x L
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-1.
  • Suitable for use with grade 8 chains.
  • Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
  • Designed for easy attaching of hooks and master links to other Grade 8 Chains and fittings.
  • Certification available  2.1    3.1   DoC



Spec

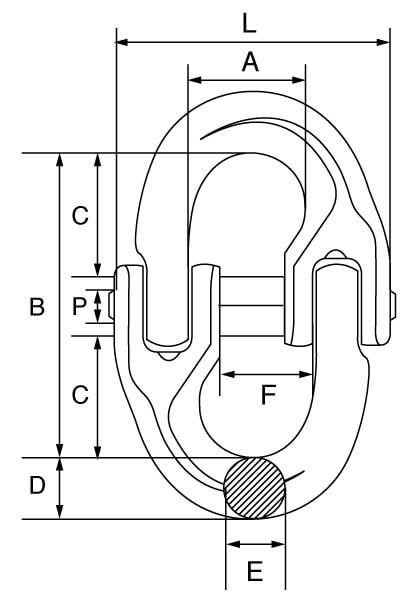

Product Code Chain Dia Part No. A B C D E F P x L
mm mm mm mm mm mm mm mm
G8CC6 6 WA58 18 45 18 7.8 7.6 14 4.8 x 38.5
G8CC7 7 WA60 19 51 20 10 9 16 6 x 46.5
G8CC8 8 WA59 23 62 25 11.5 10 18 6.3 x 53
G8CC10 10 WA61 27 72 30 12.6 12.6 23 8 x 63.5
G8CC13 13 WA62 34 88 36 19 16.7 27 10 x 79
G8CC16 16 WA63 39 103 40 21 21 33 14 x 106
G8CC20 20 WA64 47 116 48 23 23 44 14 x 108
G8CC22 22 WA65 55 133 51 26.5 26.5 49 16 x 134
G8CC26 26 WA66 66 148 60 31.5 31.5 60 18 x 159
G8CC32 32 WA67 79 183 69 37 37 67 25 x 195



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
6 1.12 28.3 45.2 0.07
7 1.5 38.5 61.6 0.1
8 2 50.3 80.4 0.25
10 3.15 78.5 126 0.35
13 5.3 133 212 0.68
16 8 201 322 1.1
20 12.5 314 503 1.7
22 15 380 608 2.2
26 21.2 531 849 4.2
32 31.5 804 1,290 7.19
