GT Cobra
SKU: 286-114-1
In stock (4)
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk
Through PayPal Credit - Find out more

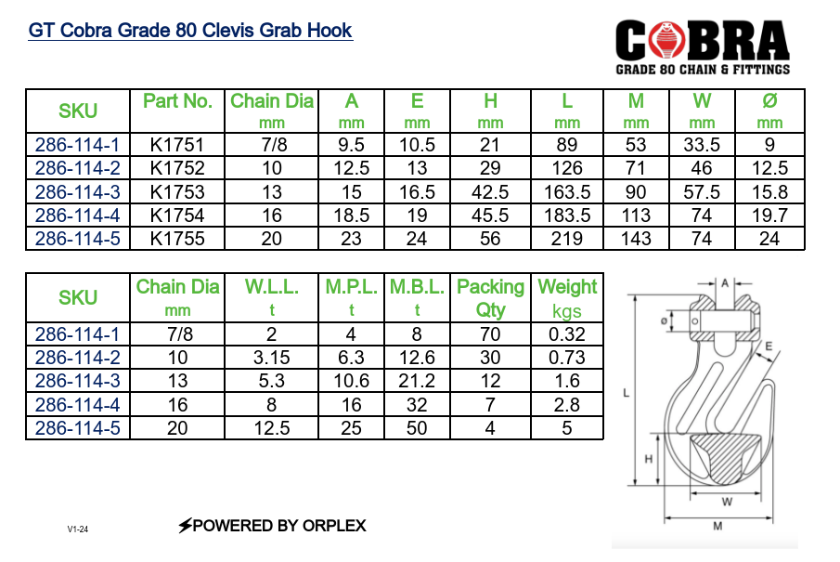

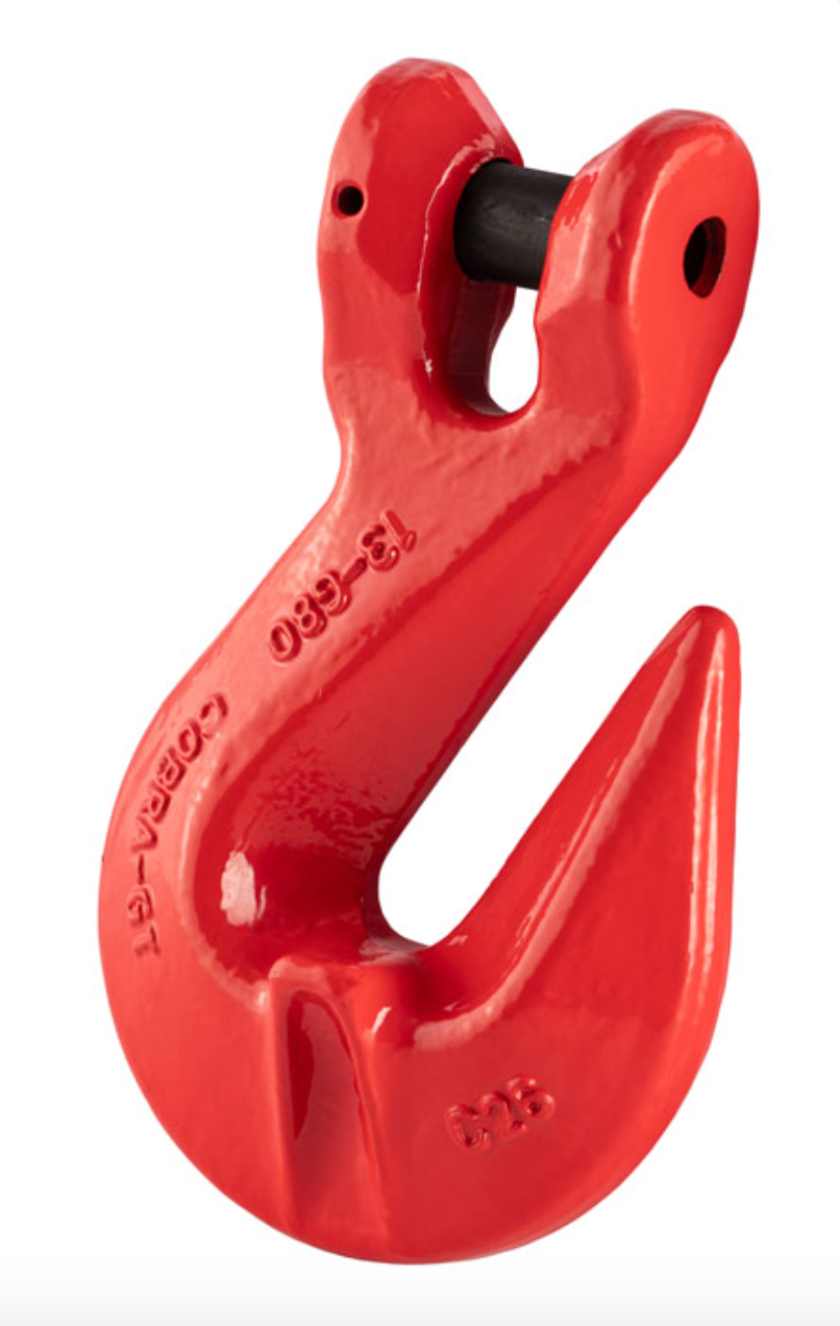

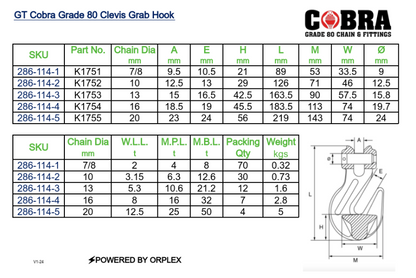

GT Cobra Grade 80 Clevis Grab Hook
| SKU |
Part No. | Chain Dia | A | E | H | L | M | W | Ø |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-114-1 |
K1751 | 7/8 | 9.5 | 10.5 | 21 | 89 | 53 | 33.5 | 9 |
| 286-114-2 |
K1752 | 10 | 12.5 | 13 | 29 | 126 | 71 | 46 | 12.5 |
| 286-114-3 |
K1753 | 13 | 15 | 16.5 | 42.5 | 163.5 | 90 | 57.5 | 15.8 |
| 286-114-4 |
K1754 | 16 | 18.5 | 19 | 45.5 | 183.5 | 113 | 74 | 19.7 |
| 286-114-5 |
K1755 | 20 | 23 | 24 | 56 | 219 | 143 | 74 | 24 |
Technical Data
| SKU | Part No. | Chain Dia | W.L.L. | M.P.L. | M.B.L. | Packing Qty | Weight |
|---|---|---|---|---|---|---|---|
| mm | t | t | t | kgs | |||
| 286-114-1 | K1751 | 7/8 | 2 | 4 | 8 | 70 | 0.32 |
| 286-114-2 | K1752 | 10 | 3.15 | 6.3 | 12.6 | 30 | 0.73 |
| 286-114-3 | K1753 | 13 | 5.3 | 10.6 | 21.2 | 12 | 1.6 |
| 286-114-4 | K1754 | 16 | 8 | 16 | 32 | 7 | 2.8 |
| 286-114-5 | K1755 | 20 | 12.5 | 25 | 50 | 4 | 5 |
