Steel Double Action Locking Scaffold Hook - 50.8mm Gate Opening - 23kN
Grade 10 Clevis Grab Hook to BS-EN 1677-1
Regular price
£13.63 GBP
inc vat
Couldn't load pickup availability
Free UK Delivery ( Exclusive to Online orders only)
This offer is on orders over £100 Excluding VAT
Please allow up to 3 working days for delivery
Free delivery applies to UK mainland addresses only.
Due to increased delivery costs we regret that certain post code addresses in the Scottish Highlands, Scottish Islands, Isle of Man, Isle of Wight, Ireland , Northern Ireland and the Channel Islands extra charges may apply. In this instance someone from our Web team will contact you to confirm and take additional payment of additional delivery fees.
Some large products will require a fork lift vehicle in order to accept delivery. Where a forklift is not available, extra charges may apply. In this instance someone from our Web team will contact you to confirm and take additional payment of additional delivery fees

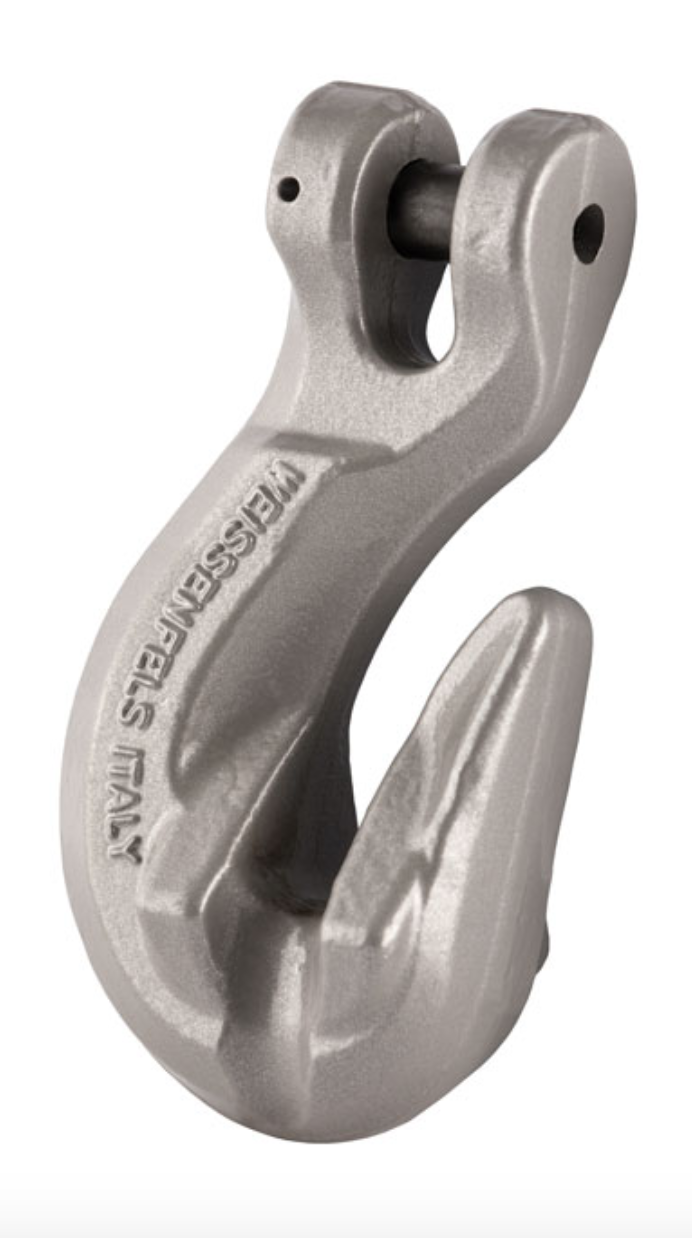

KITO WEISSENFELS Grade 10 Clevis Grab Hook
- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- Clevis fitting enables direct connection to chain.
- No reduction in W.L.L of the chain sling capacity if used as a shortening device.
- For correct safe use of the hook as a shortening device it must be assembled to the master link via 3 links of chain.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available 2.1 DoC
Spec
| SKU |
Chain Dia | A | H | O | O1 | R | P x L |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-221-1 |
6 | 7 | 17.5 | 7 | 7.5 | 51 | 7.4 x 16.5 |
| 286-221-2 |
7/8 | 9 | 23.5 | 9.5 | 10.5 | 66 | 9.6 x 23 |
| 286-221-3 |
10 | 11.5 | 29 | 12.5 | 13.5 | 82 | 12.5 x 29.5 |
| 286-211-4 |
13 | 15 | 39 | 16.5 | 15.5 | 106 | 16 x 37 |
| 286-211-5 |
16 | 18 | 46 | 22 | 20 | 130 | 20 x 52 |
| 286-211-6 |
19/20 | 23 | 57 | 26 | 24 | 162 | 24 x 73 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-211-1 | 6 | 1.4 | 35.3 | 56.5 | 0.25 |
| 286-211-2 | 7-8 | 2.5 | 62.8 | 100 | 0.6 |
| 286-211-3 | 10 | 4 | 98.2 | 157 | 1.14 |
| 286-211-4 | 13 | 6.7 | 166 | 265 | 2.6 |
| 286-211-5 | 16 | 10 | 251 | 402 | 4.8 |
| 286-211-6 | 19/20 | 16 | 393 | 628 | 7.2 |
