GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin 55.0t

Name: GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin 55.0t
Brand: GT Blue Pin
SKU: 269-100-22
Price: 1.20 GBP
Availability: InStock

GT Blue Pin SKU: 269-100-22

1 1

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin 55.0t

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Meets the W.L.L. requirements of EN... Read More

GT Blue Pin SKU: 269-100-22

£1.20

Sale TODAY'S PRICE £1.20

In stock (28)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

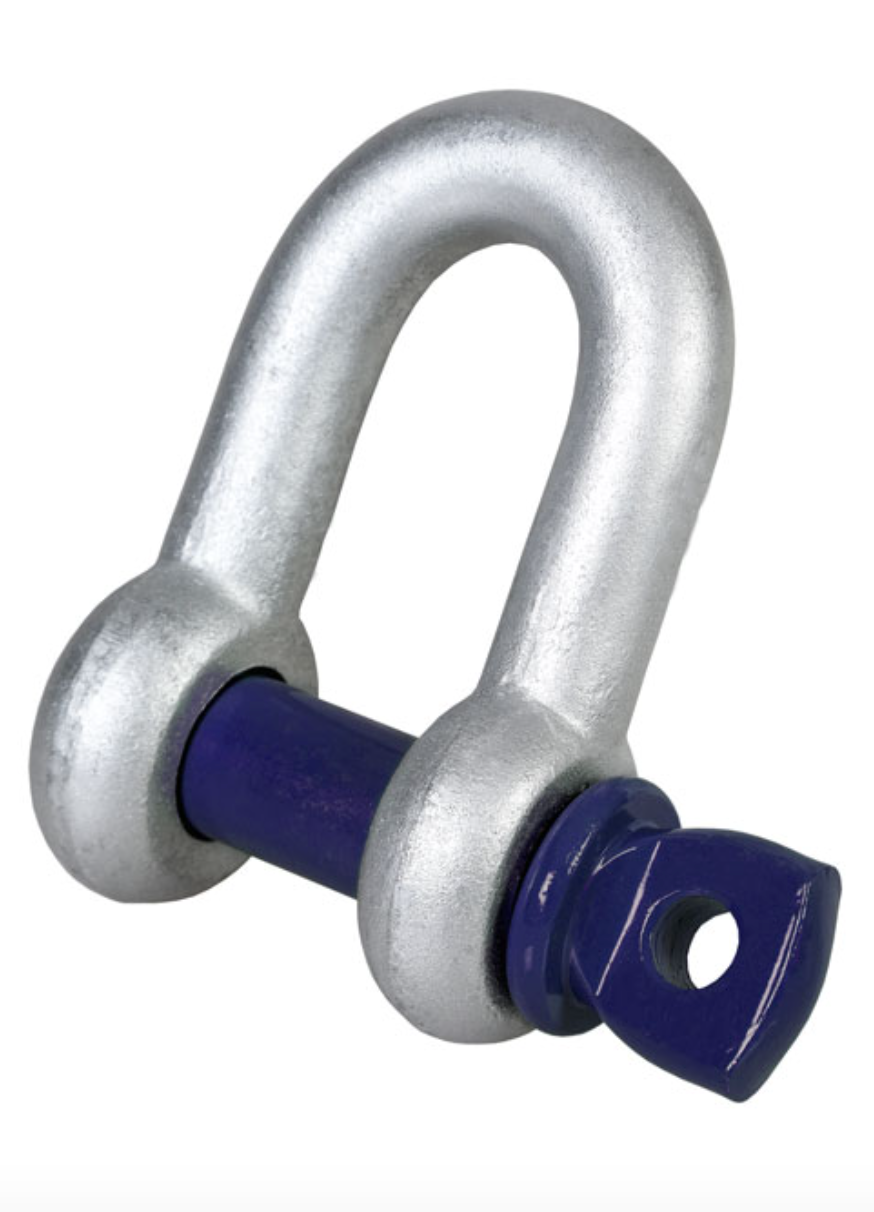

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
Temperature range 0ºC up to +200ºC.
Minimum breaking load is 6 times the W.L.L.
Marked with CE, W.L.L, manufacturers ID, size and traceability code.
Certification - Declaration of Conformity

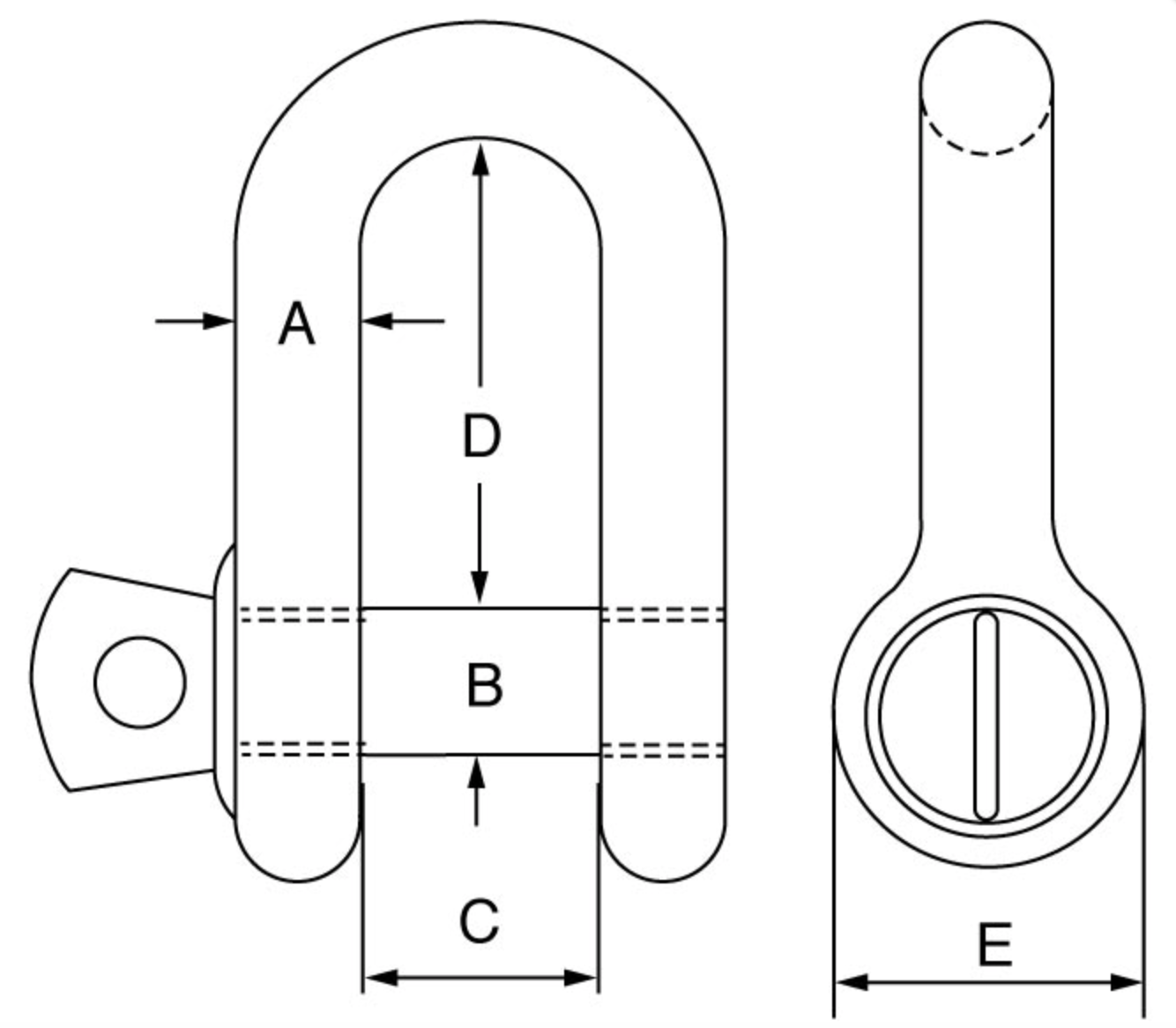

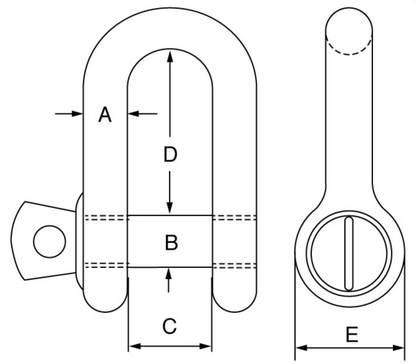

Specification

SKU	W.L.L.	A	B	C	D	E	Weight
	t	mm	mm	mm	mm	mm	kgs
269-100-22	0.5	6.4	8	12	22	20	0.06
269-100-23	0.75	8	10	13	26	21	0.11
269-100-24	1	9.5	11	17	32	26	0.15
269-100-25	1.5	11	12	18	36.5	29	0.21
269-100-26	2	12.7	16	20.6	41.3	32	0.37
269-100-27	3.25	16	19.8	27	51	43	0.65
269-100-28	4.75	19	22	32	62	51	1.04
269-100-29	6.5	21.7	27	36.6	74.8	58	1.56
269-100-30	8.5	25.4	30	43	81	68	2.32
269-100-31	9.5	28.5	33	46	90	75	3.28
269-100-32	12	31.5	36	51.6	100.8	83	4.51
269-100-33	13.5	34.9	39	57	112.5	92	5.93
269-100-34	17	38	42	60	125	99	7.89
269-100-35	25	44	52	73	146.5	126	13.4
269-100-36	35	50	56	82	171	138	18.85
269-100-37	55	63.5	68	105	203	180	37.86
