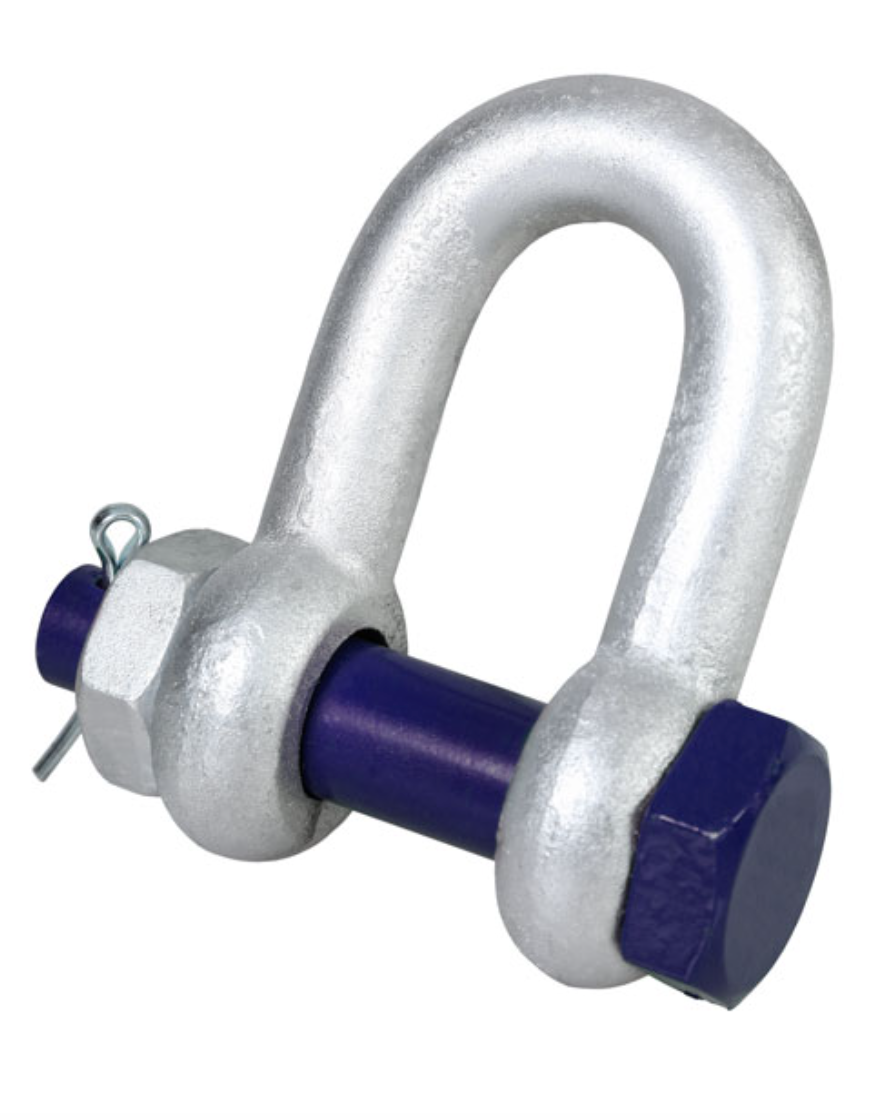

GT Blue Pin Grade 6 Dee Shackle with Safety Nut and Bolt Pin

£1.91

SKU :286-100-63

WLL

GT Blue Pin Grade 6 Dee Shackle with Safety Nut and Bolt Pin - BPSAD

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
  • Temperature range 0ºC up to +200ºC.
  • Minimum breaking load is 6 times the W.L.L. up to 85t, and 5 times the W.L.L. above 85t.
  • Marked with CE, W.L.L, manufacturers ID, size and traceability code.
  • Certification available DoC



Spec

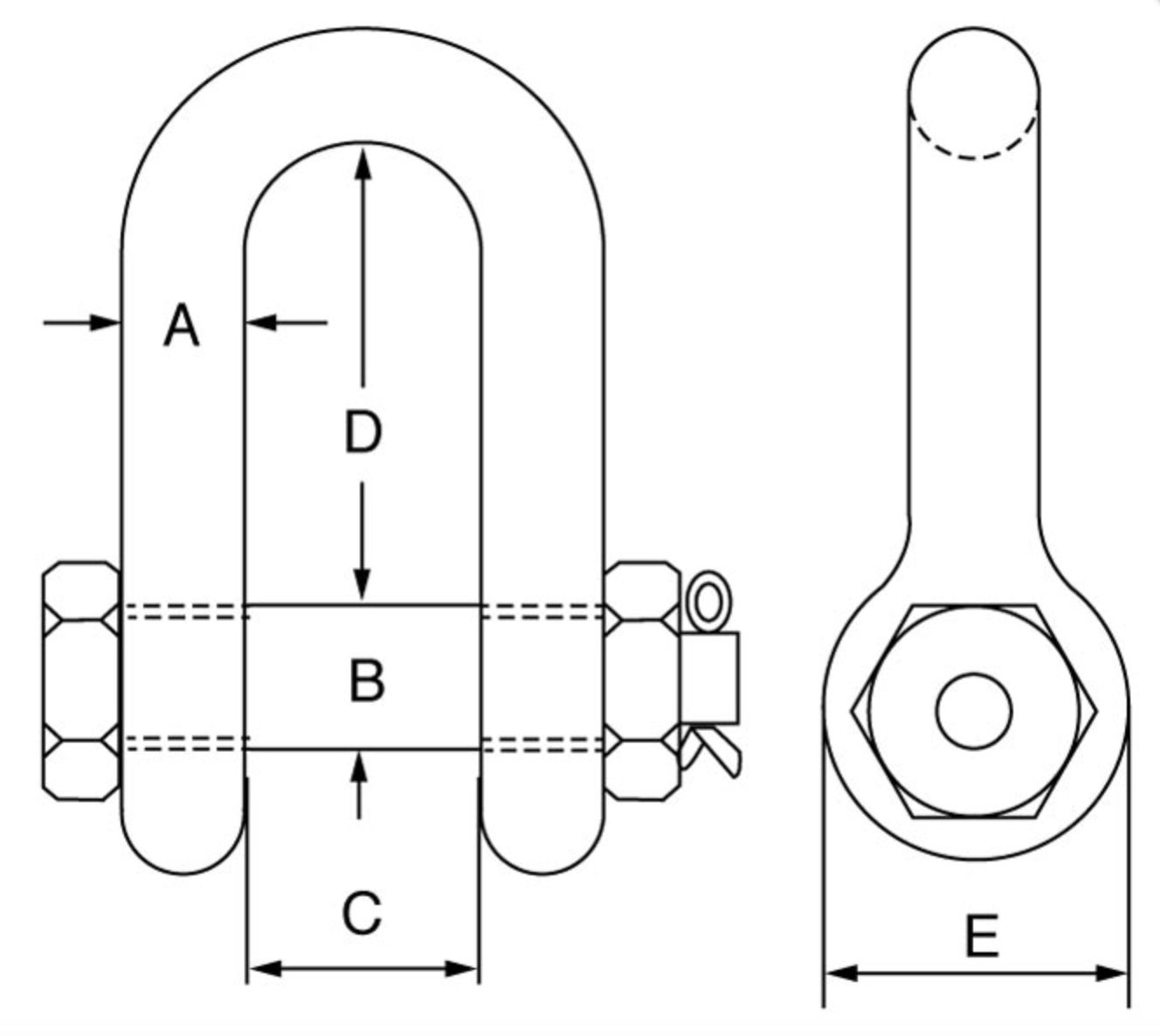

SKU Product Code W.L.L. A B C D Weight
t mm mm mm mm kgs
269-100-63 BPSAD1 1 9.5 12 17 31.6 0.17
269-100-64 BPSAD1.5 1.5 11 12 18 36.5 0.25
269-100-65 BPSAD2 2 12.7 16 20.6 41.3 0.44
269-100-66 BPSAD3.25 3.25 16 19.8 27 51 0.79
269-100-67 BPSAD4.75 4.75 19 22 32 62 1.26
269-100-68 BPSAD6.5 6.5 22 27 36.6 74.8 1.88
269-100-69 BPSAD8.5 8.5 25 30 43 81 2.78
269-100-70 BPSAD9.5 9.5 28.5 33 46 89.5 3.87
269-100-71 BPSAD12 12 31.8 36 51.6 100.8 5.26
269-100-72 BPSAD13.5 13.5 34.9 39 57 112.5 6.94
269-100-73 BPSAD17 17 38 42 60 125 8.79
269-100-74 BPSAD25 25 44 52 73 140.5 14.99
269-100-75 BPSAD35 35 50 56 82 171.5 20.65
269-100-76 BPSAD55 55 63.5 68 105 203 41.05
269-100-77 BPSAD85 85 75 85 127 230 62
269-100-78 BPSAD120 120 88 95 133 262 106





Downloads

  Duct rod data sheetProduct data sheet

 Duct rod data sheetSafety Information
