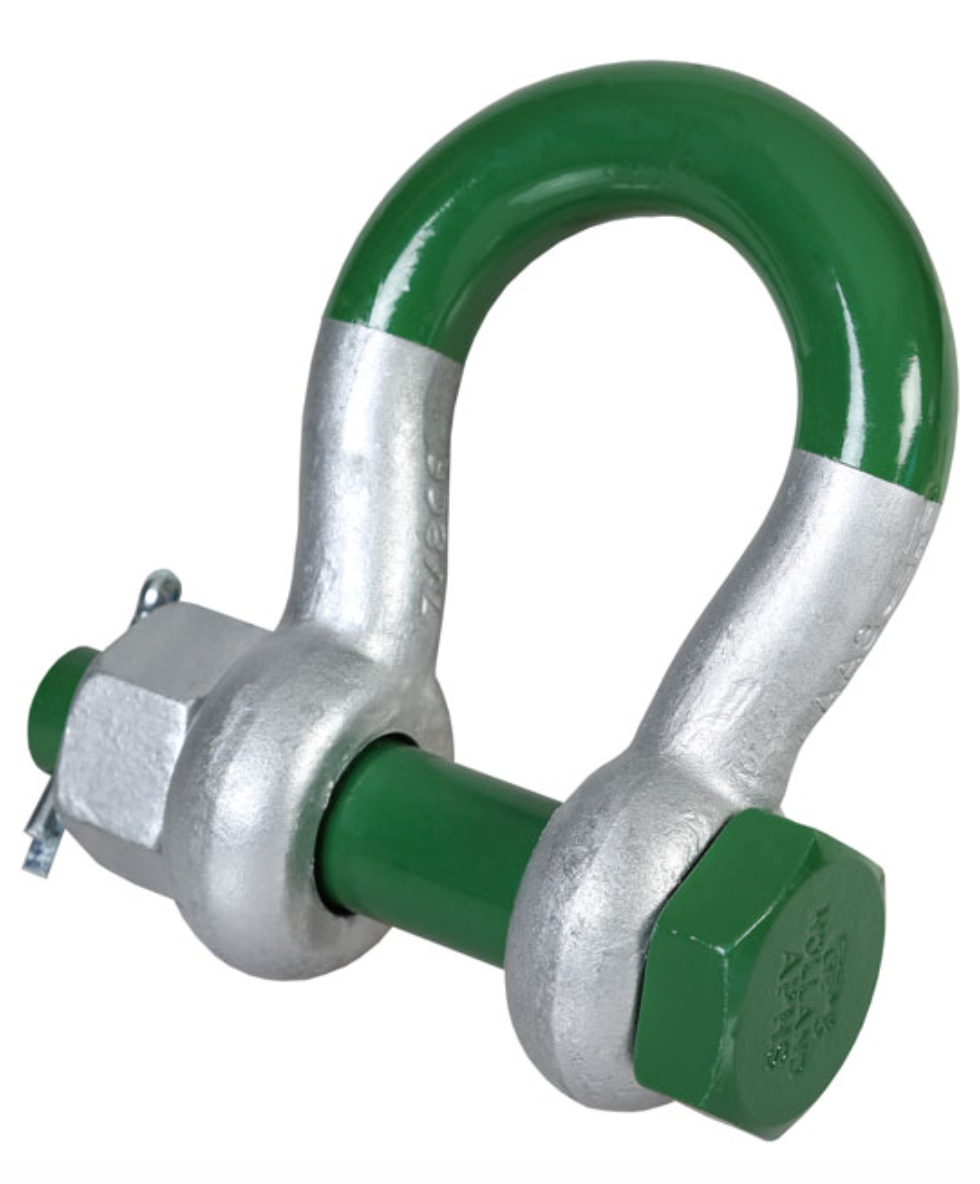

Green Pin Super Grade 8 Bow Shackle with Safety Nut and Bolt Pin

In stock
SKU: 269-25-1
Regular price £33.60 GBP inc vat
WLL

Green Pin Super Grade 8 Bow Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish, 175t is painted.
  • Conforms to ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade b.
  • Minimum breaking load is 5 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • 150 & 175 tonne with round headed bolt.
  • Full CAD support available upon request.
  • Certification available

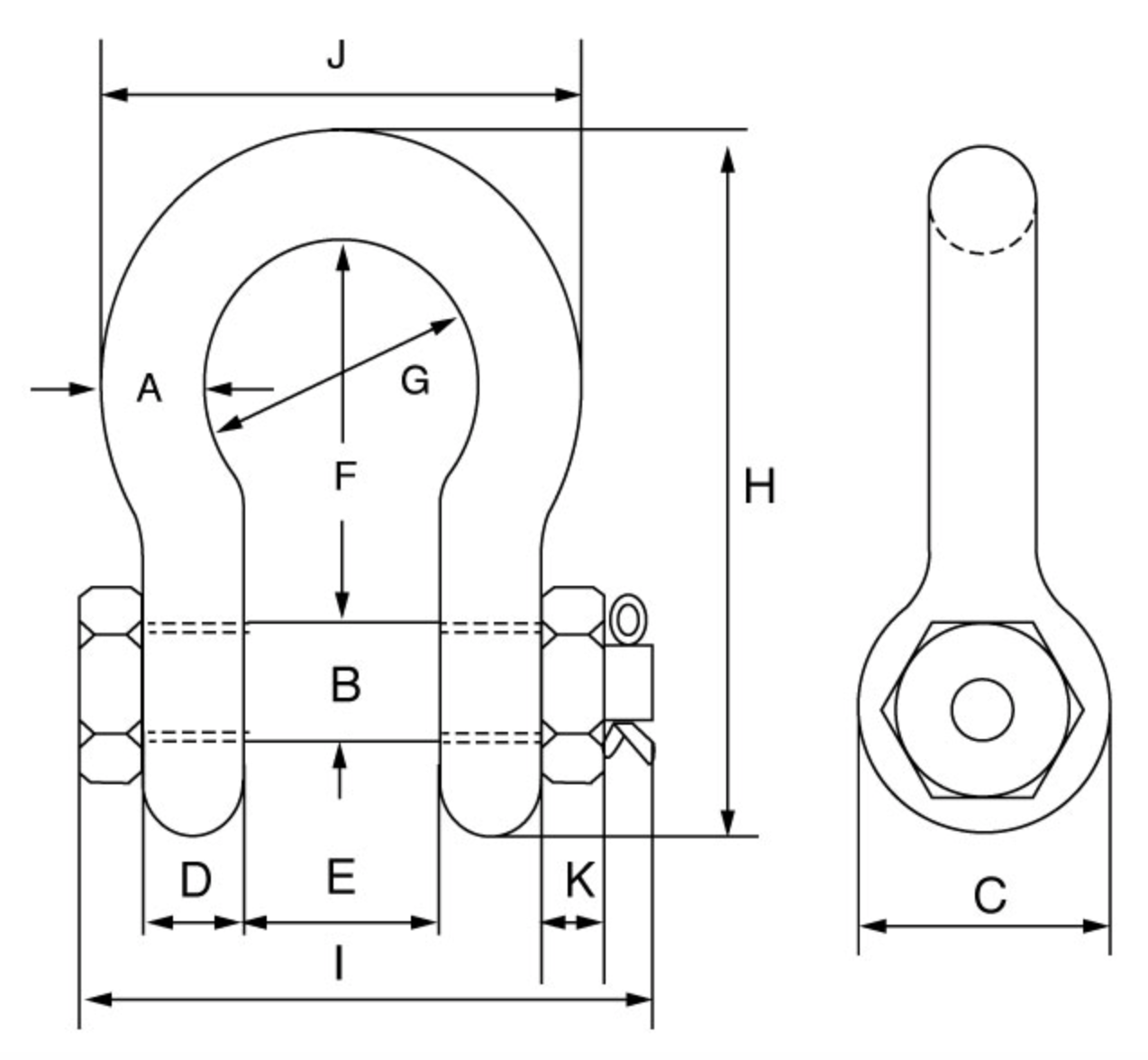

Spec

SKU W.L.L. A B C D E F G H I J K Weight Technical Specification
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-25-1 3.3 13.5 16 34 13 22 51 32 89 82 58 13 0.4 Download
269-25-2 5 16 19 40 16 27 64 43 110 98 75 17 0.73 Download
269-25-3 7 19 22 46 19 31 76 51 129 114 89 19 1.19 Download
269-25-4 9.5 22 25 52 22 36 83 58 144 130 102 22 1.73 Download
269-25-5 12.5 25 28 59 25 43 95 68 164 150 118 25 2.56 Download
269-25-6 15 28 32 66 28 47 108 75 185 166 131 27 3.6 Download
269-25-7 18 32 35 72 32 51 115 83 201 178 147 30 4.95 Download
269-25-8 21 35 38 80 35 57 133 92 227 197 162 33 6.62 Download
269-25-9 30 38 42 88 38 60 146 99 249 217 175 34 8.11 Download
269-25-10 40 45 50 103 45 74 178 126 300 260 216 40 15 Download
269-25-11 55 57 57 117 57 83 197 138 341 303 252 46 23 Download
269-25-12 85 70 70 143 70 105 260 180 437 363 320 56 44 Download
269-25-13 120 83 83 162 83 127 329 190 535 425 356 66 72 Download
269-25-14 150 95 95 208 95 147 400 238 647 524 428 50 112 Download
269-25-15 175 105 108 238 105 169 410 275 688 567 485 50 160 Download
