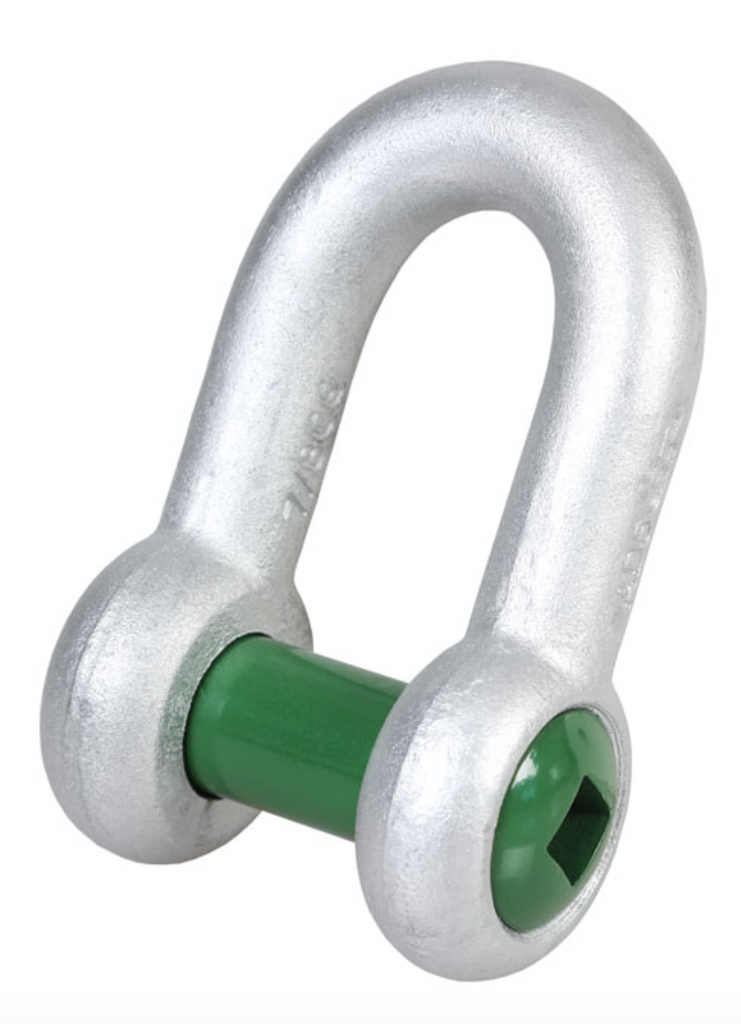

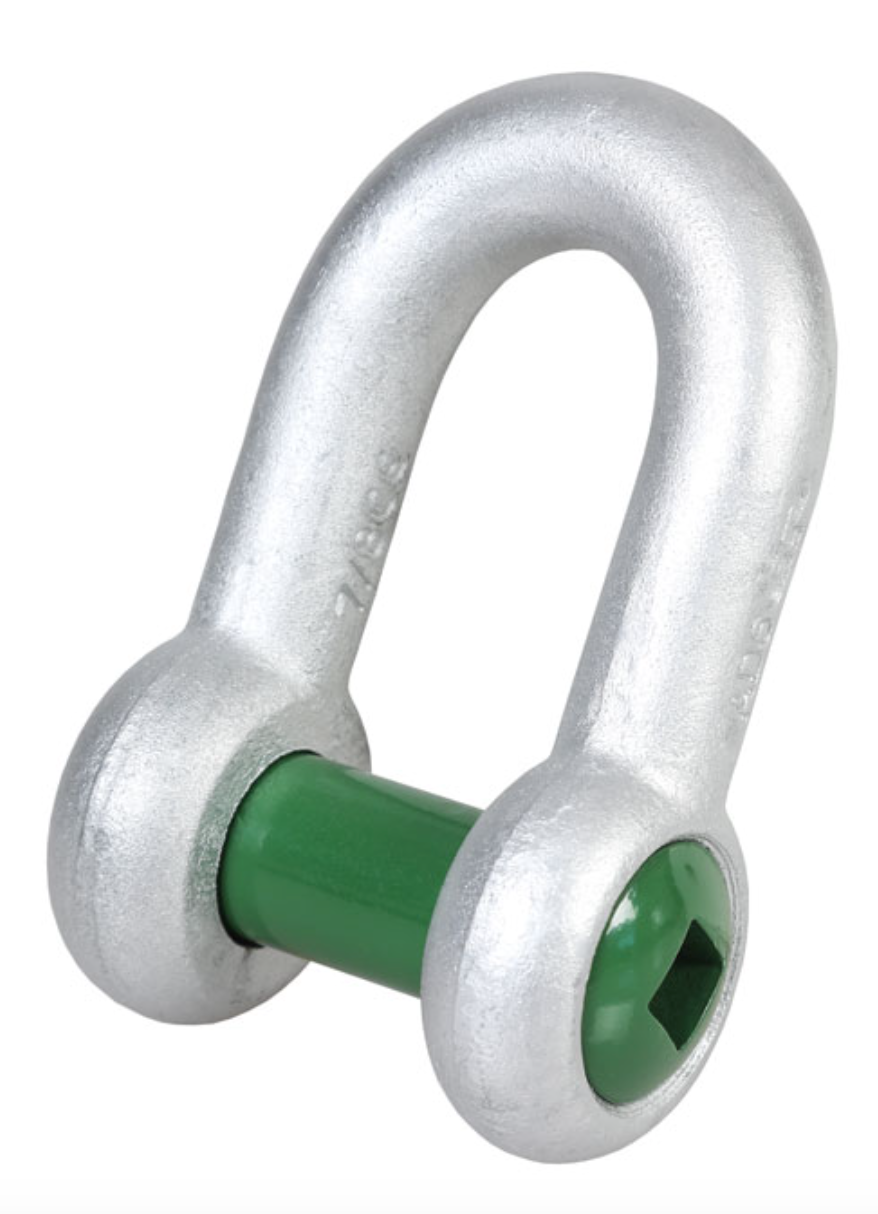

Green Pin Grade 6 Square Sunken Hole Dee Shackle

Name: Green Pin Grade 6 Square Sunken Hole Dee Shackle
Brand: Green Pin
SKU: 269-32-1
Price: 17.40 GBP
Availability: InStock

Green Pin SKU: 269-32-1

1 3

Green Pin Grade 6 Square Sunken Hole Dee Shackle Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889, ASME... Read More

£17.40

Sale TODAY'S PRICE £17.40

In stock (3)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more green pin grade 6 standard shackles

Description

Green Pin Grade 6 Square Sunken Hole Dee Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Key for unscrewing pin supplied separately (E-4170).
Supplied with an EC Declaration of Conformity
G-4159

Specification

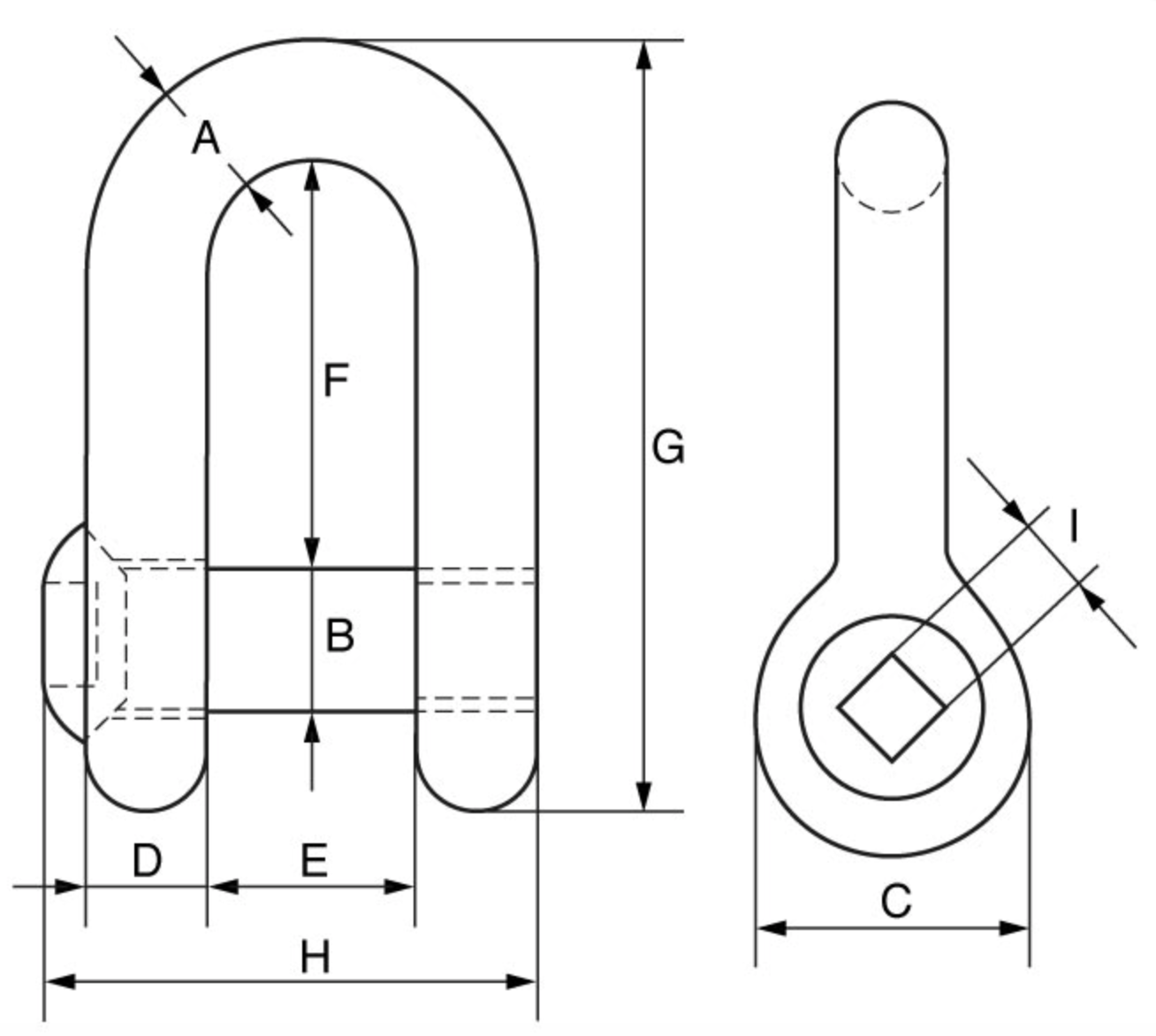

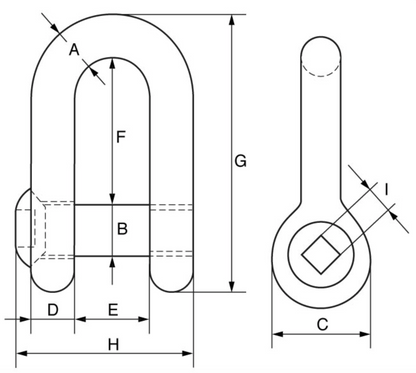

SKU	W.L.L	A	B	C	D	E	F	G	H	I	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-32-1	2	13.5	16	34	13	22	43	81	51	11	0.34
269-32-2	3.25	16	19	40	16	27	51	97	63	11	0.6
269-32-3	4.75	19	22	46	19	31	59	112	74	11	0.98
269-32-4	6.5	22	25	52	22	36	73	134	85	13	1.26
269-32-5	8.5	25	28	59	25	43	85	154	99	13	2.14
269-32-6	9.5	28	32	66	28	47	90	167	110	17	3.05
269-32-7	12	32	35	72	32	51	94	180	122	17	3.56
269-32-X	13.5	35	38	80	35	57	115	209	135	17	5.17
269-32-8	17	38	42	88	38	60	127	230	145	17	6.84
