Green Pin

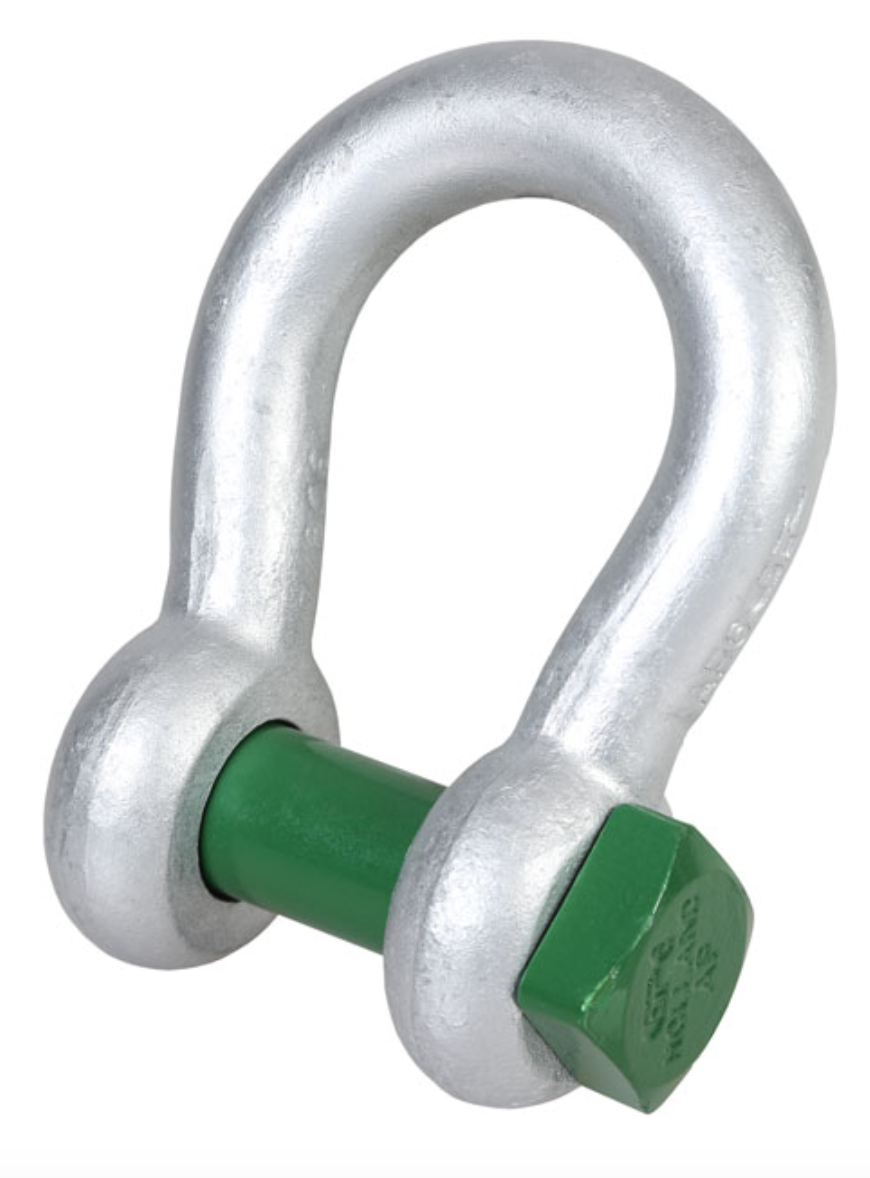

Green Pin Grade 6 Square Head Bow Shackle

Green Pin Grade 6 Square Head Bow Shackle

SKU: 269-30-1

Read More
Regular price £12.00
Regular price RRP Sale price TODAY'S PRICE £12.00

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Grade 6 Square Head Bow Shackle

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available
  • G-4164

Spec

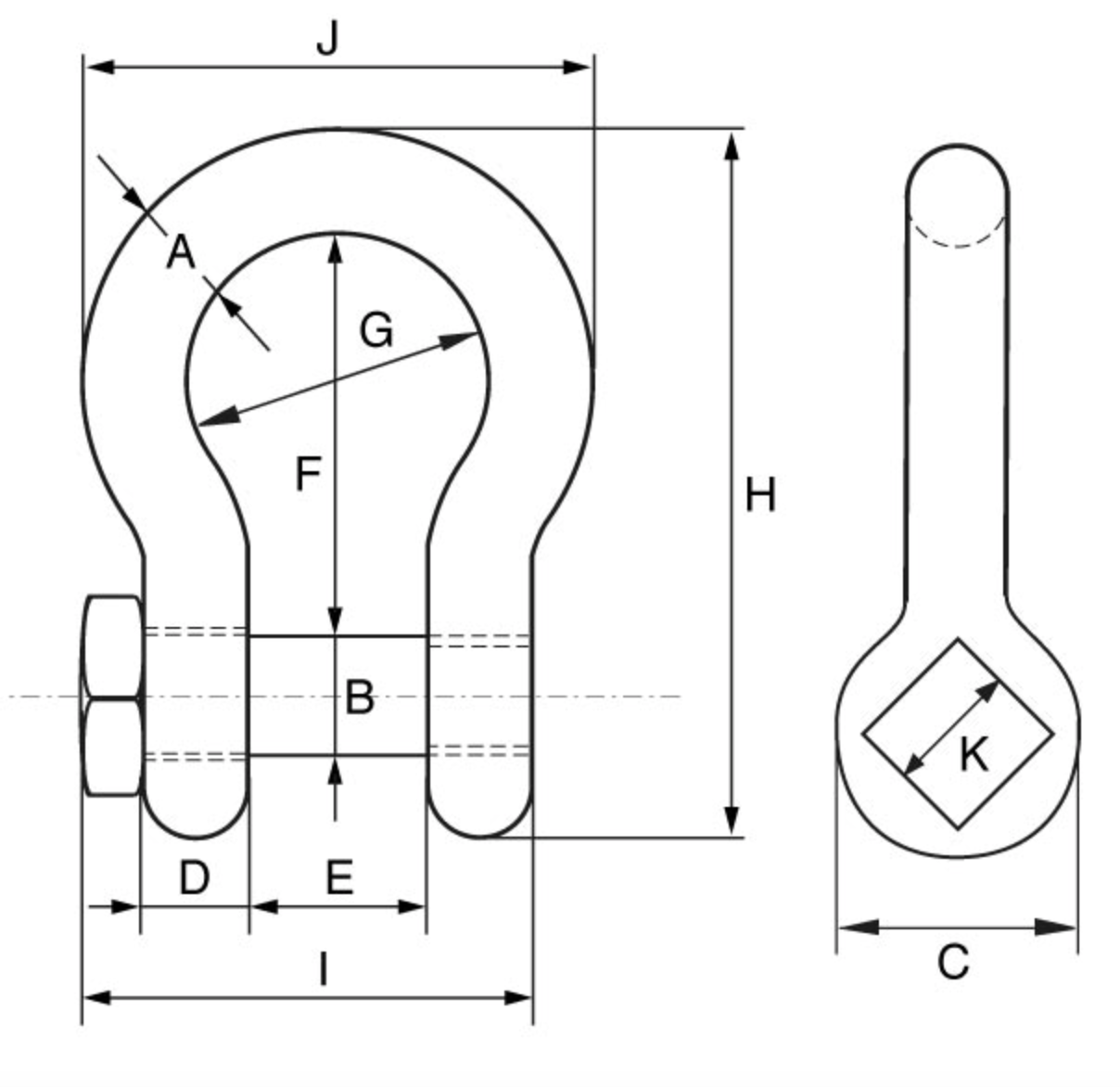

SKU W.L.L. A B C D E F G H I J K Weight
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-30-1 2 13.5 16 34 13 22 51 32 89 57.5 58 22 0.34
269-30-2 3.25 16 19 40 16 27 64 43 110 71 75 27 0.63
269-30-3 4.75 19 22 46 19 41 76 51 129 82 89 32 1
269-30-4 6.5 22 25 52 22 36 83 58 144 93 102 32 1.44
269-30-5 8.5 25 28 59 25 43 95 68 164 108 118 36 2.21
269-30-6 9.5 28 32 66 28 47 108 75 185 120 131 41 3.18
269-30-7 12 32 35 72 32 51 115 83 201 137 147 50 4.32
269-30-8 13.5 35 38 80 35 57 133 92 227 149 162 50 5.67
269-30-9 17 38 42 88 38 60 146 99 249 164 175 60 7.36
269-30-10 25 45 50 103 45 74 178 126 300 192 216 60 12.38
