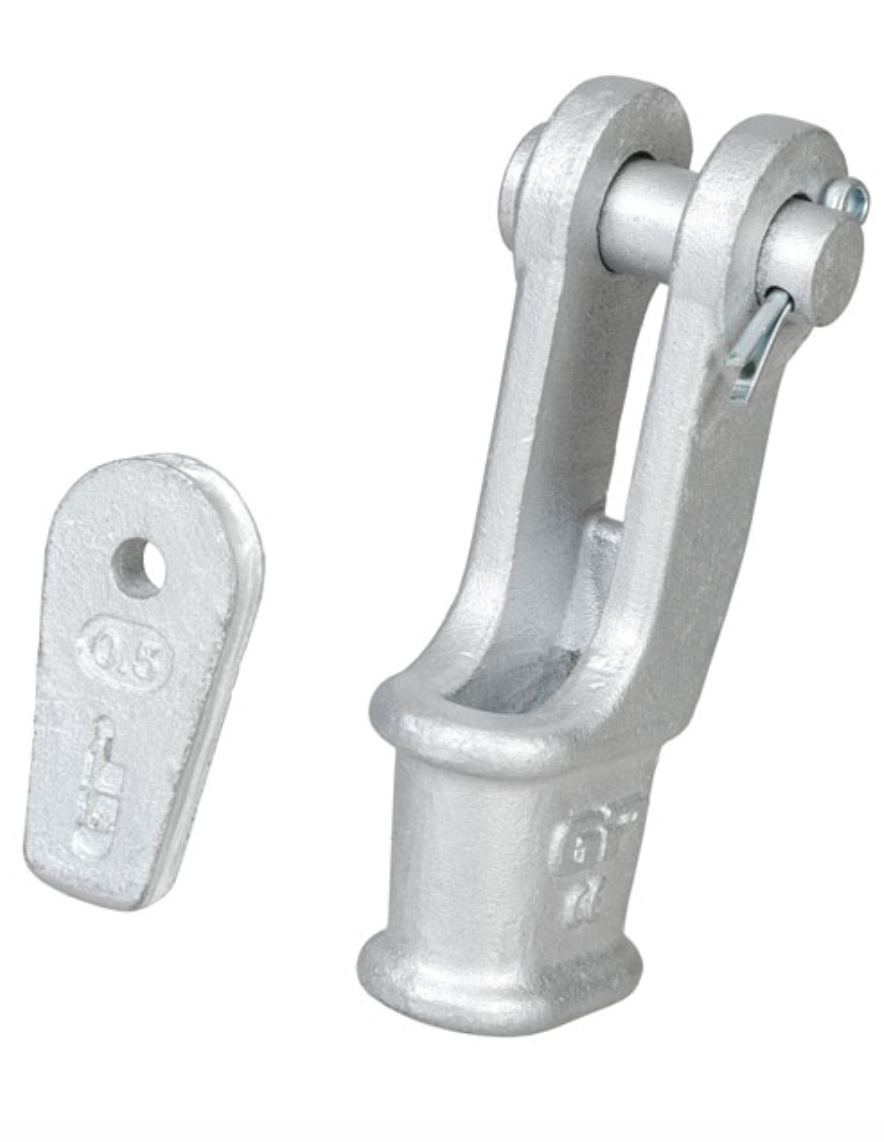

Green Pin Open Wedge Socket

Name: Green Pin Open Wedge Socket
Brand: Green Pin
SKU: 286-814-1
Price: 73.28 GBP
Availability: InStock

Green Pin SKU: 286-814-1

1 3

Green Pin Open Wedge Socket

Green Pin Open Wedge Socket High tensile steel. Hot dipped galvanised finish. Temperature range -20ºC up to +200°C. Marked with CE, manufacturers ID, size, product ID mark and traceability code. Full CAD support available upon... Read More

Green Pin SKU: 286-814-1

£73.28

Sale TODAY'S PRICE £73.28

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

Description

Green Pin Open Wedge Socket

High tensile steel.
Hot dipped galvanised finish.
Temperature range -20ºC up to +200°C.
Marked with CE, manufacturers ID, size, product ID mark and traceability code.
Full CAD support available upon request.

Certification available
G-6413

Spec

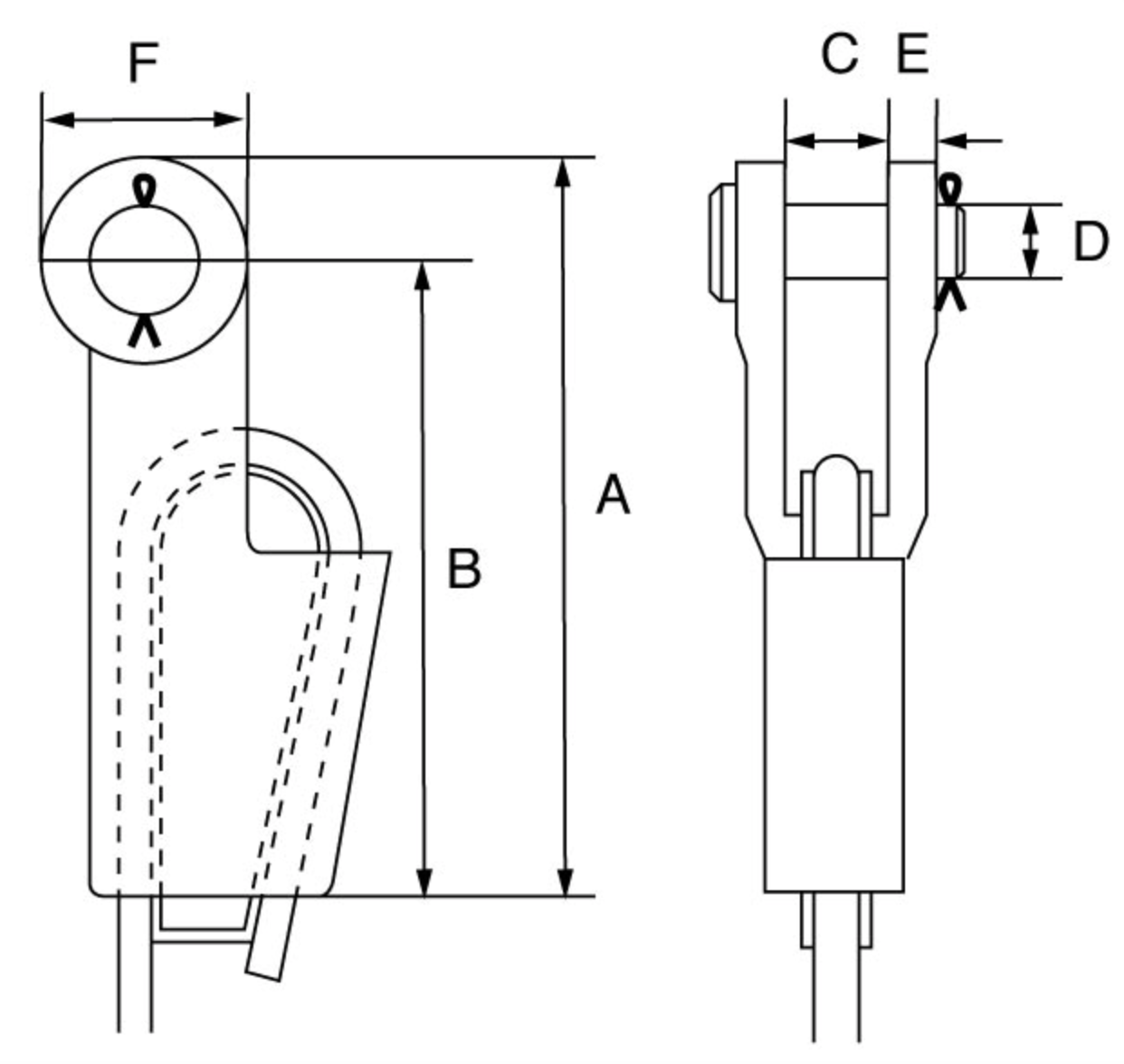

SKU	Number	M.B.L.	Wire Rope Dia	A	B	C	D	E	F	F	Weight
		t	mm	mm	mm	mm	mm	mm	mm	mm	kgs
286-814-1	0.25	8	7-8	128	110	51	18	16	9	36	0.79
286-814-2	0.5	12	9-10	165	142	62	20.5	21	11	46	1.5
286-814-3	1	20	11-13	175	146	66	25	25	12	57	2.4
286-814-4	2	25	14-16	211	176	82	31	30	15	70	4
286-814-5	3	40	18-19	252	212	95	38	35	16	80	7.4
286-814-6	4	55	20-22	288	240	110	44	41	19	95	11
286-814-7	5	75	24-26	329	274	130	51	51	22	110	16
286-814-8	6	90	27-29	375	310	144	57	57	25	130	22
286-814-9	7	110	30-32	423	350	155	63	64	28	146	31
286-814-10	8	125	34-36	474	400	163	69	64	28	148	39
286-814-11	9	150	37-39	527	450	178	76	70	30	153	50
286-814-12	10	170	40-42	580	500	187	76	76	33	160	66
286-814-13	11	225	43-48	650	550	213	89	89	39	186	96
286-814-14	12	280	49-52	745	640	240	101	95	46	194	130
286-814-15	13	360	54-58	785	660	275	114	108	54	250	180
286-814-16	14	425	60-68	970	835	300	127	121	60	270	275
286-814-17	15	460	72-76	1150	1000	355	146	133	76	300	440
286-814-18	16	625	81-86	1310	1160	375	159	140	79	300	510
