Green Pin

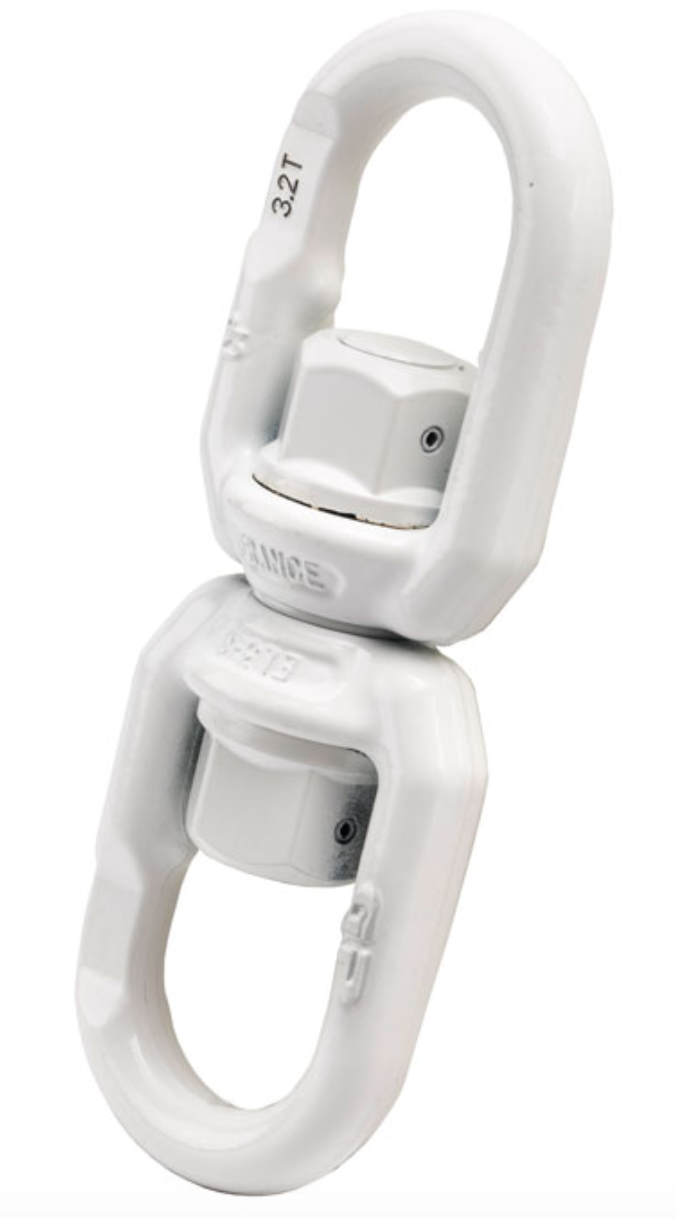

Green Pin Grade 8 Needle Bearing Swivel Eye/Eye

Green Pin Grade 8 Needle Bearing Swivel Eye/Eye

SKU: 286-818-1

Read More
Regular price £90.42
Regular price RRP Sale price TODAY'S PRICE £90.42

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Green Pin Grade 8 Needle Bearing Swivel Eye/Eye

  • Alloy steel, quenched and tempered.
  • White painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Temperature range -40ºC to +200ºC.
  • 2 needle roller thrust bearings for rotation under load.
  • Marked with CE, W.L.L, material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity
  • ELR

            Spec

            SKU

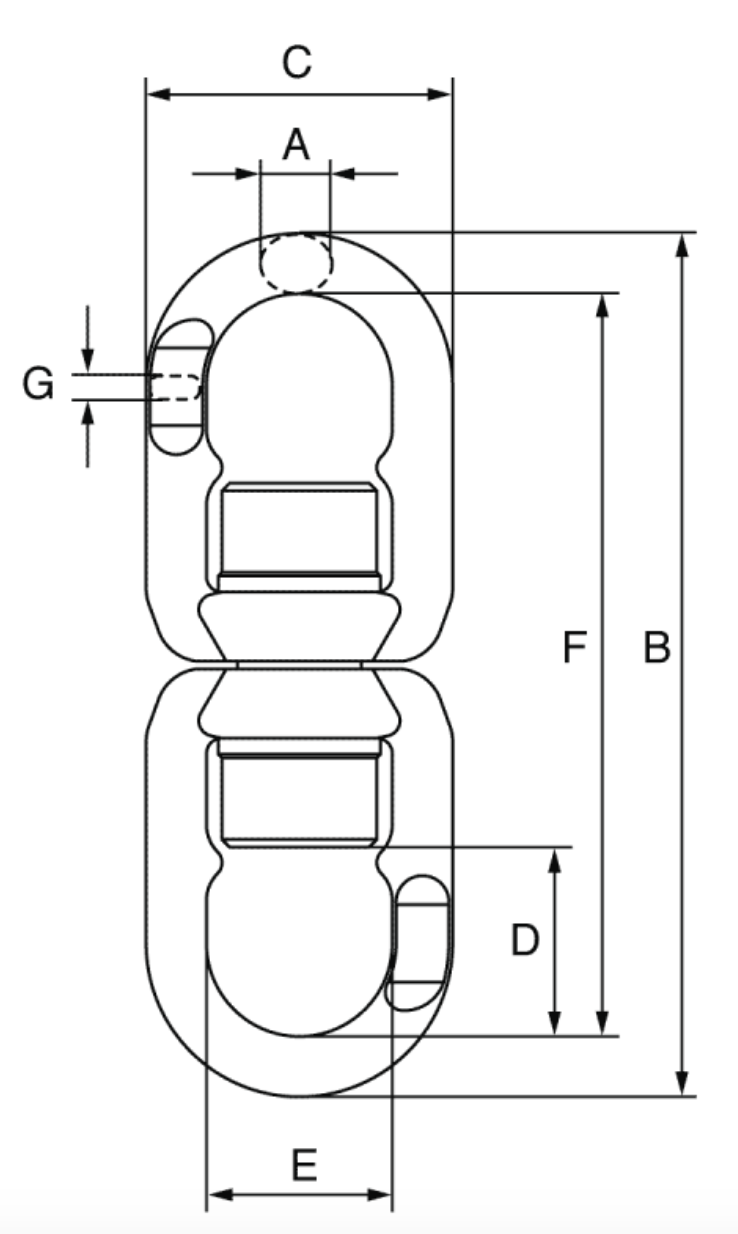

            Chain Dia W.L.L. A B C D E F G Weight
            t mm mm mm mm mm mm mm kgs
            286-818-1
            5/6 1.12 11 150 56 33 32 126 6 0.61
            286-818-2
            7/8 2 14 181 65 40 37 153 8 1.07
            286-818-3
            10 3.2 18 226 79 47 48 195 11 1.9
            286-818-4
            13 5.4 20 268 96 59 58 227 14 3.17
            286-818-5
            16 8.2 23 331 121 67 73 281 17 6.44
            286-818-6
            18/20 12.8 28 378 132 88 82 328 22 7.75
