Green Pin Grade 6 Square Sunken Hole Bow Shackle

Name: Green Pin Grade 6 Square Sunken Hole Bow Shackle
Brand: Green Pin
SKU: 269-29-1
Price: 16.80 GBP
Availability: InStock

Green Pin SKU: 269-29-1

1 3

Green Pin Grade 6 Square Sunken Hole Bow Shackle Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889, ASME... Read More

£16.80

Sale TODAY'S PRICE £16.80

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

Description

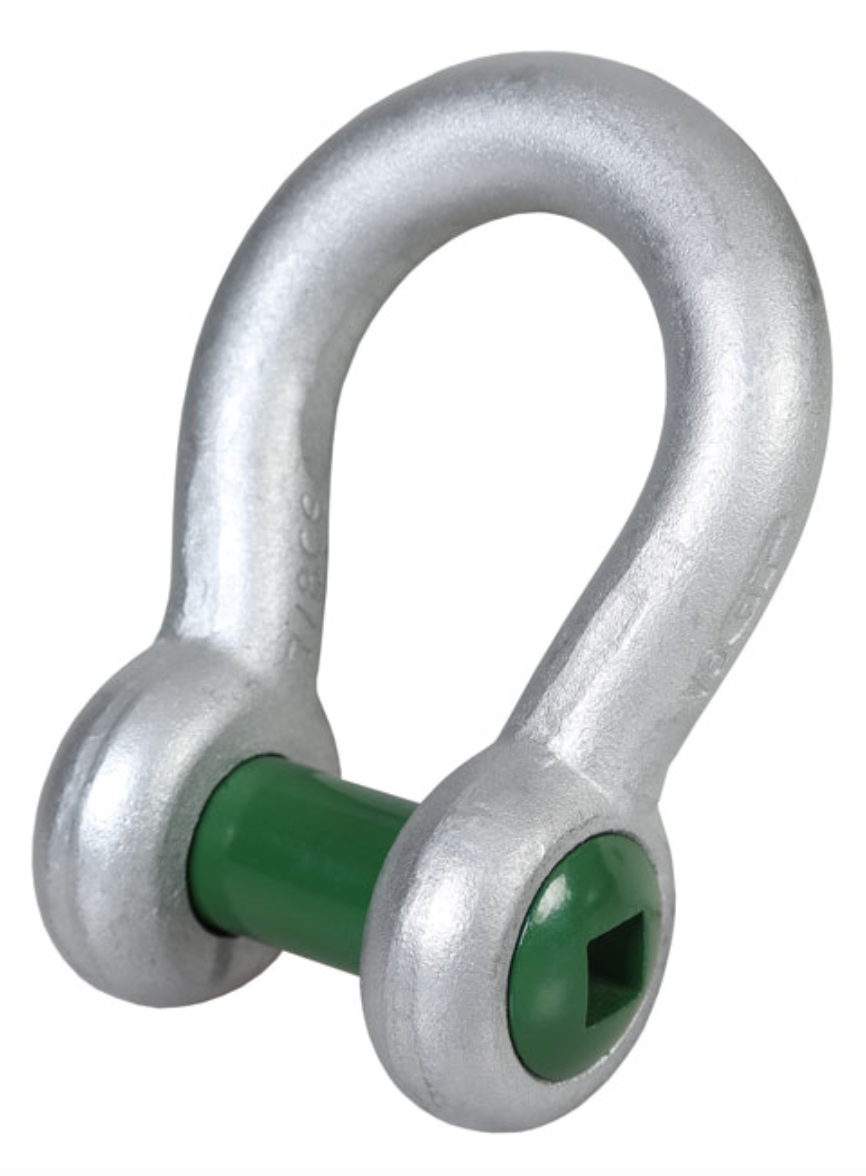

Green Pin Grade 6 Square Sunken Hole Bow Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Key for unscrewing pin supplied separately (E-4170).
Certification - Declaration of Conformity
G-4169

Specification

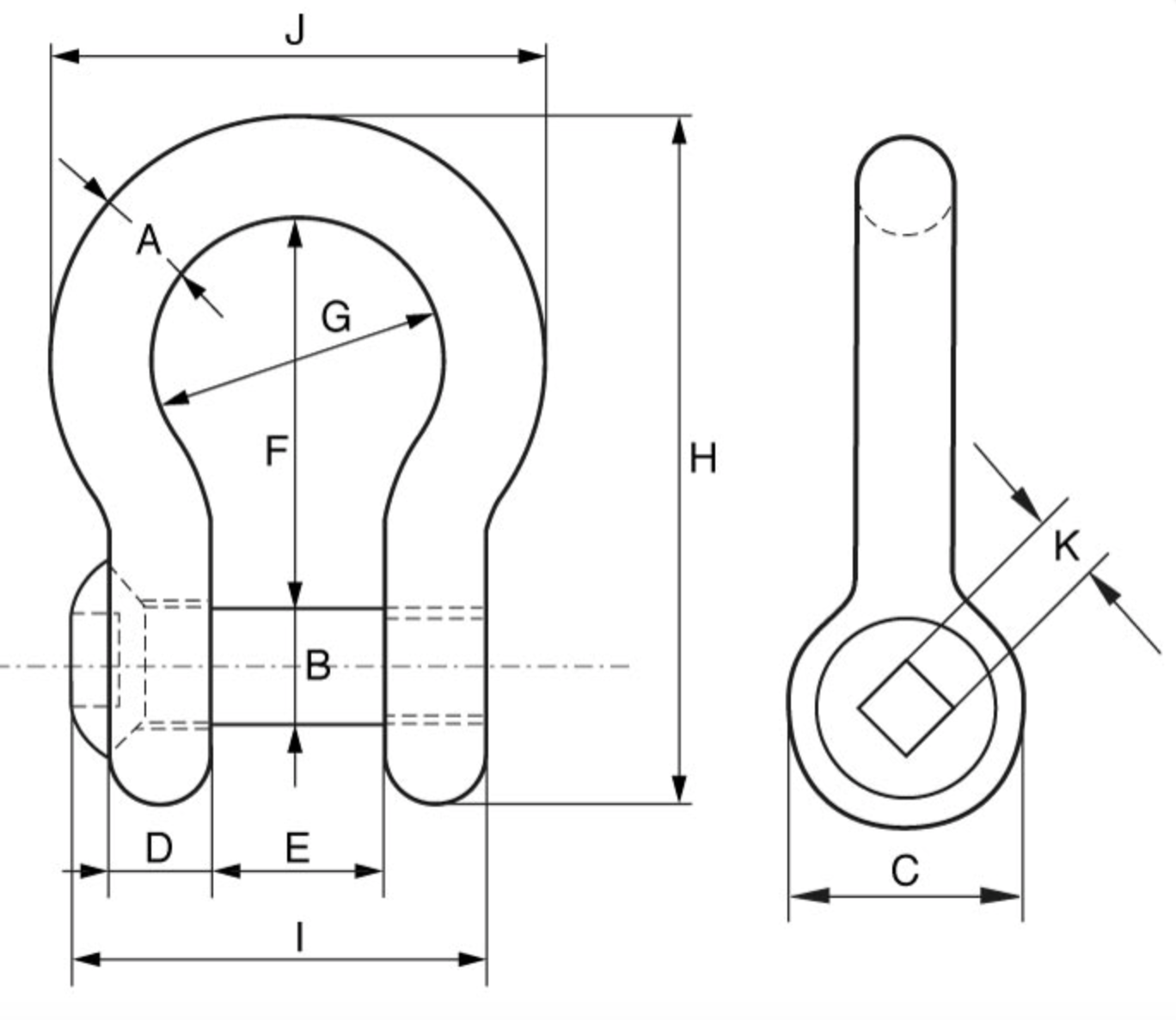

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	J	K	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-29-1	2	13.5	16	34	13	22	51	32	89	51	58	11	0.31
269-29-2	3.25	16	19	40	16	27	64	43	110	63	75	11	0.56
269-29-3	4.75	19	22	46	19	31	76	51	129	74	89	11	0.98
269-29-4	6.5	22	25	52	22	36	83	58	144	85	102	13	1.46
269-29-5	8.5	25	28	59	25	43	95	68	164	99	118	13	2.18
269-29-6	9.5	28	32	66	28	47	108	75	185	110	131	17	3.06
269-29-7	12	32	35	72	32	51	115	83	201	122	147	17	4.24
269-29-X	13.5	35	38	80	35	57	133	92	227	135	162	17	5.59
269-29-8	17	38	42	88	38	60	146	99	249	145	175	17	7.37
